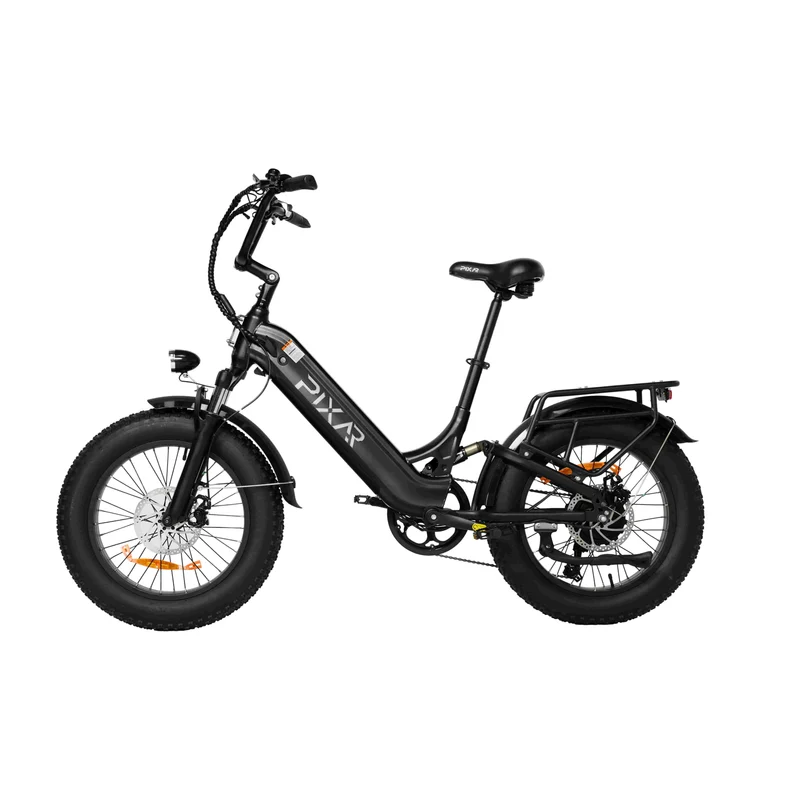

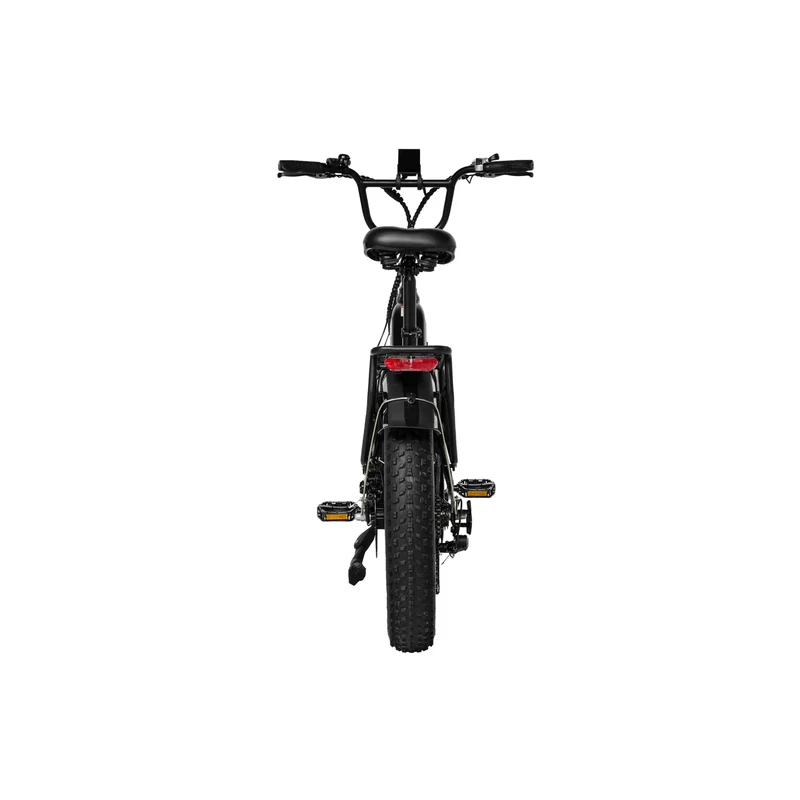

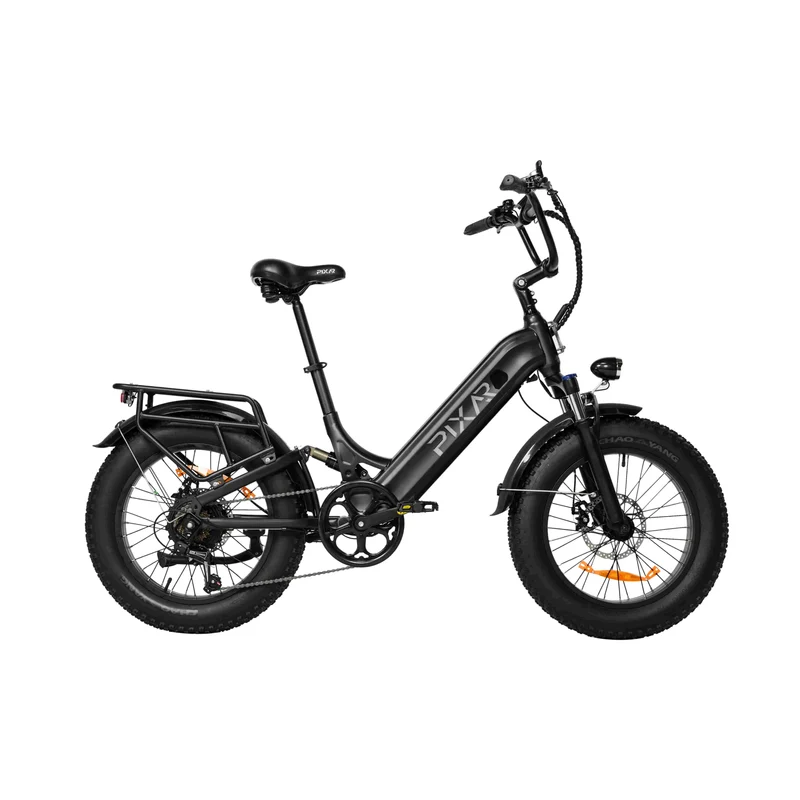

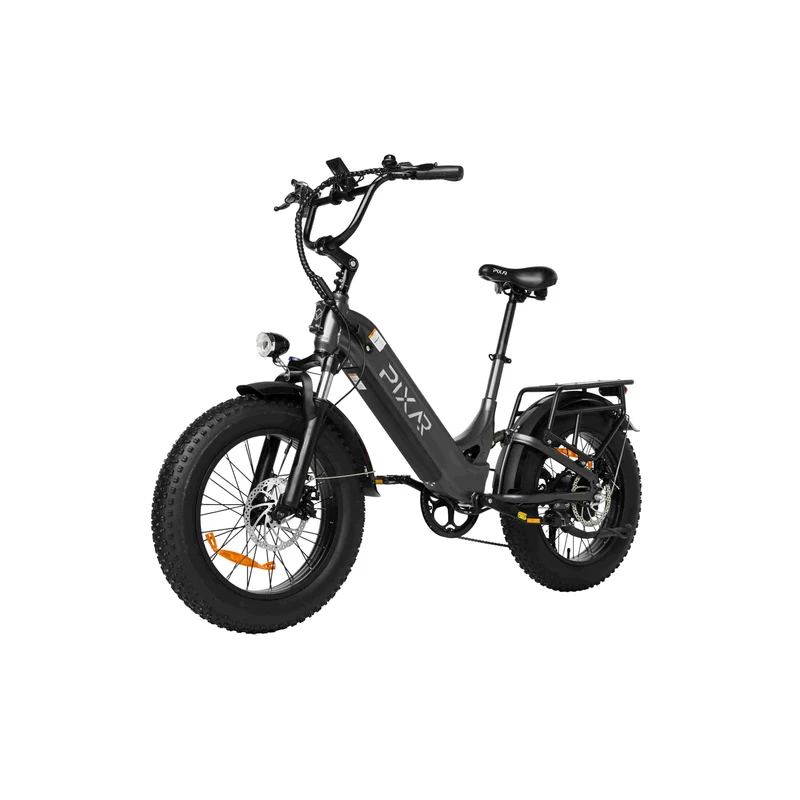

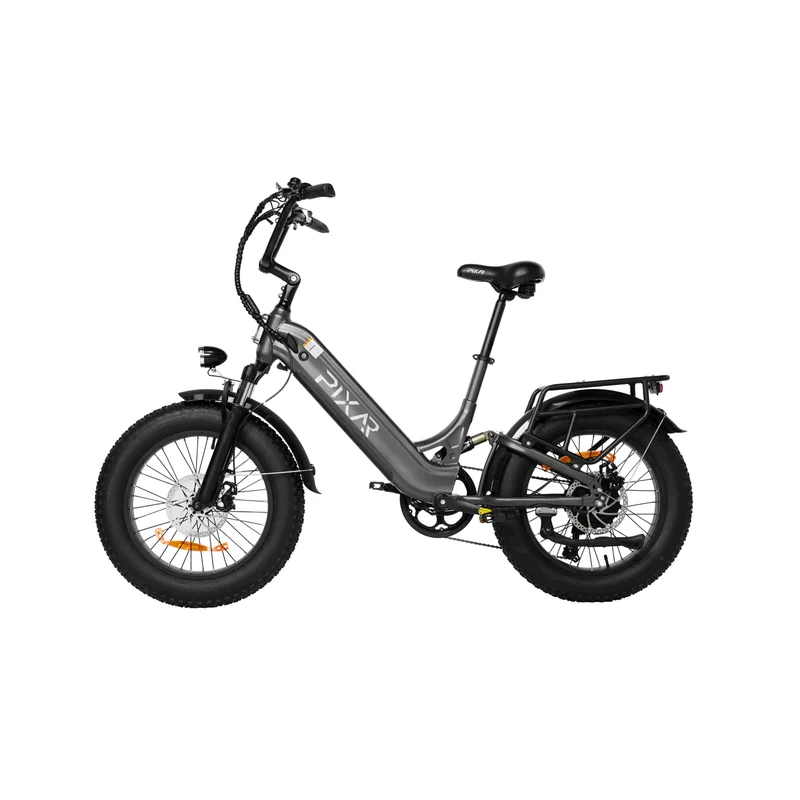

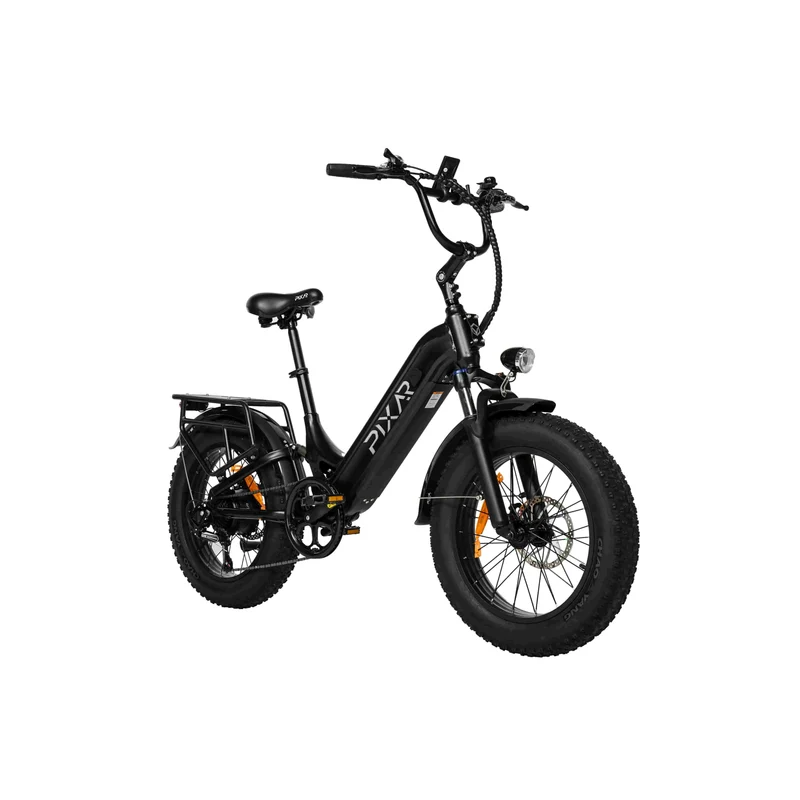

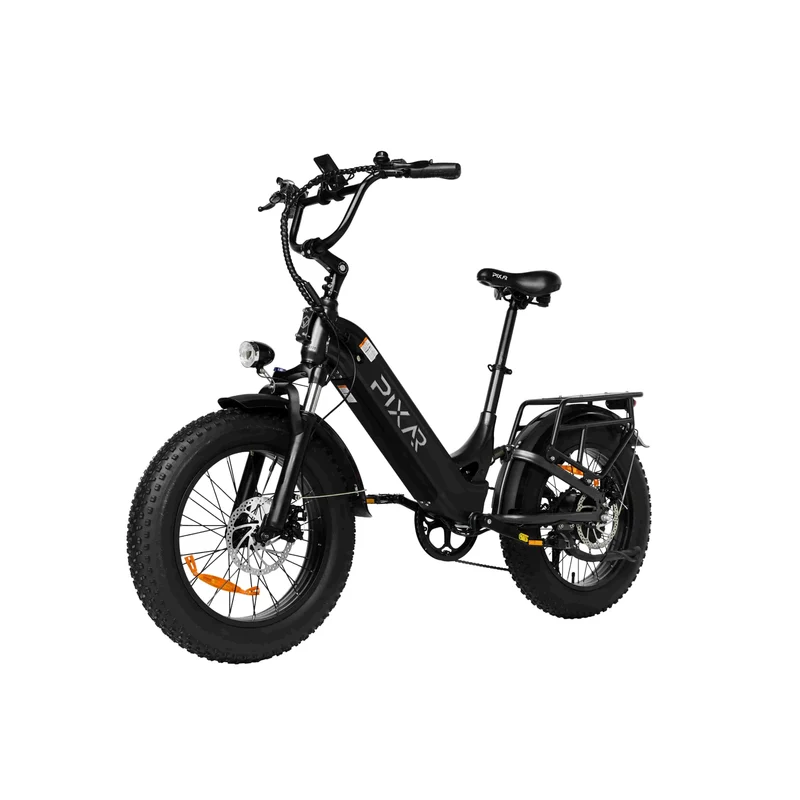

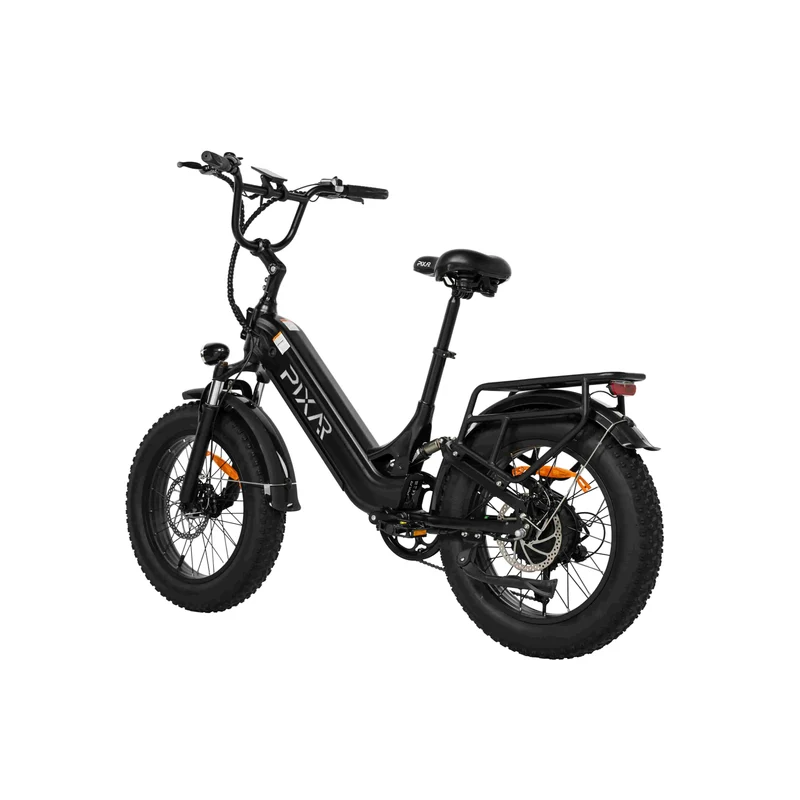

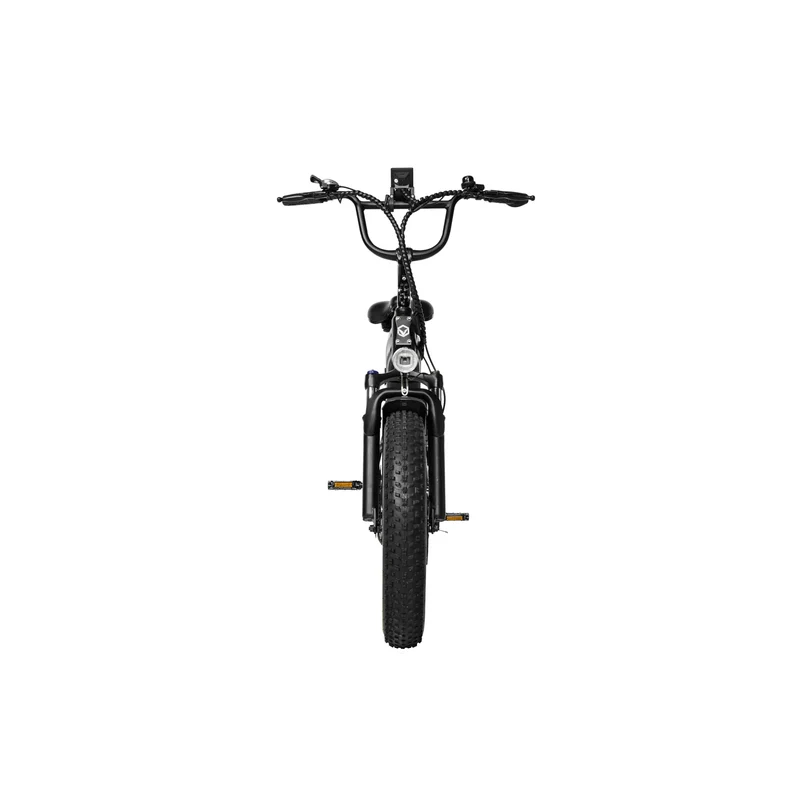

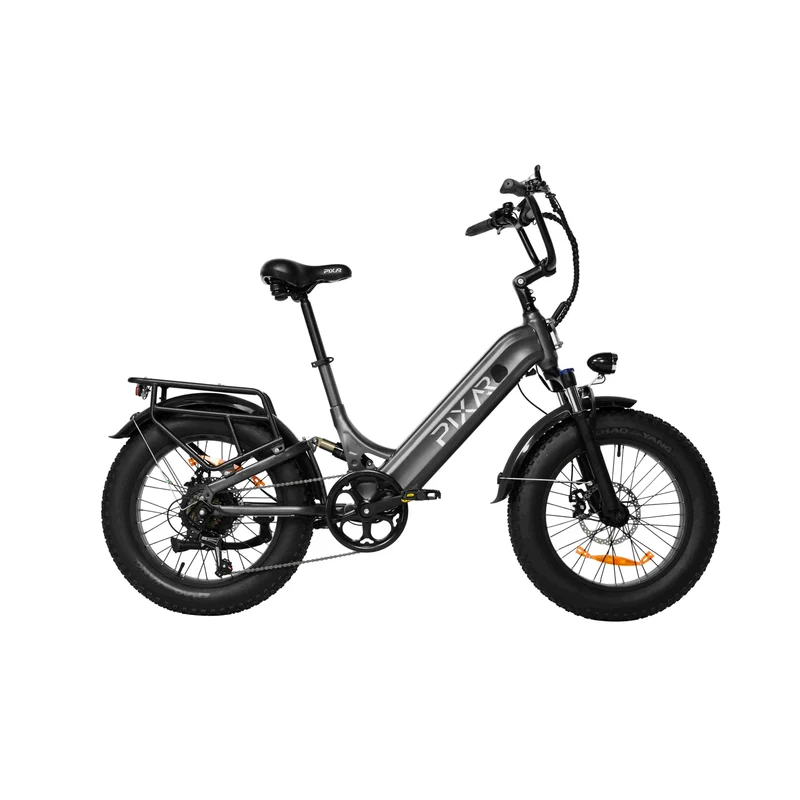

PIXAR Ride1 20" City Electric Bike 500W Motor 48V 10.4Ah Battery

[DESCRIPTION]

[/DESCRIPTION][SPECIFICATIONS]

General

• Brand:PIXAR
• Model:RIDE1
• Type:City Electric Bike
• Color:Black,Grey

Specifications

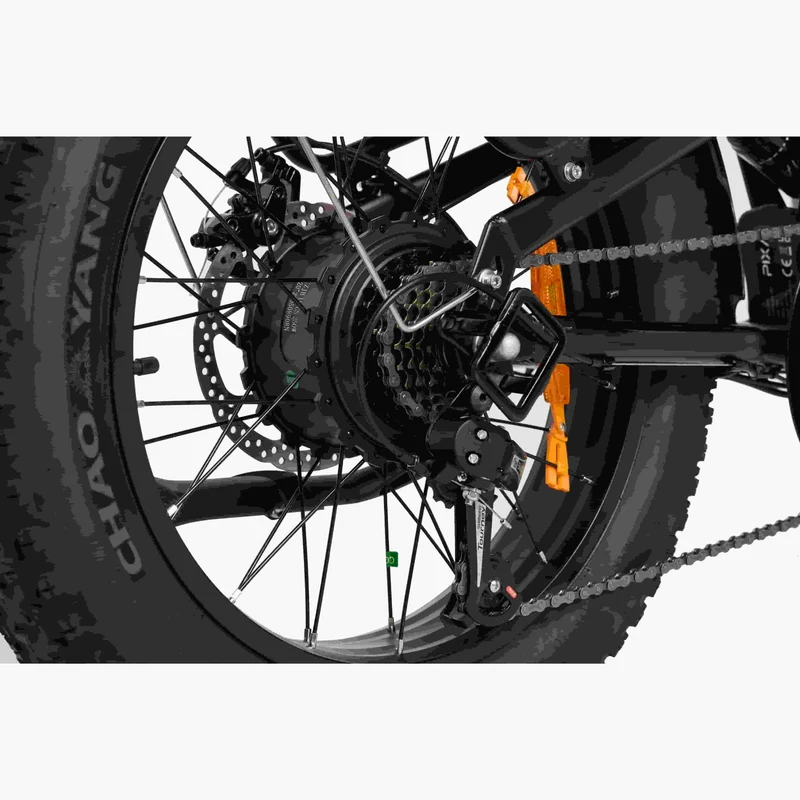

• Motor: 48V*500W Brushless hub motor (Jiabo brand)

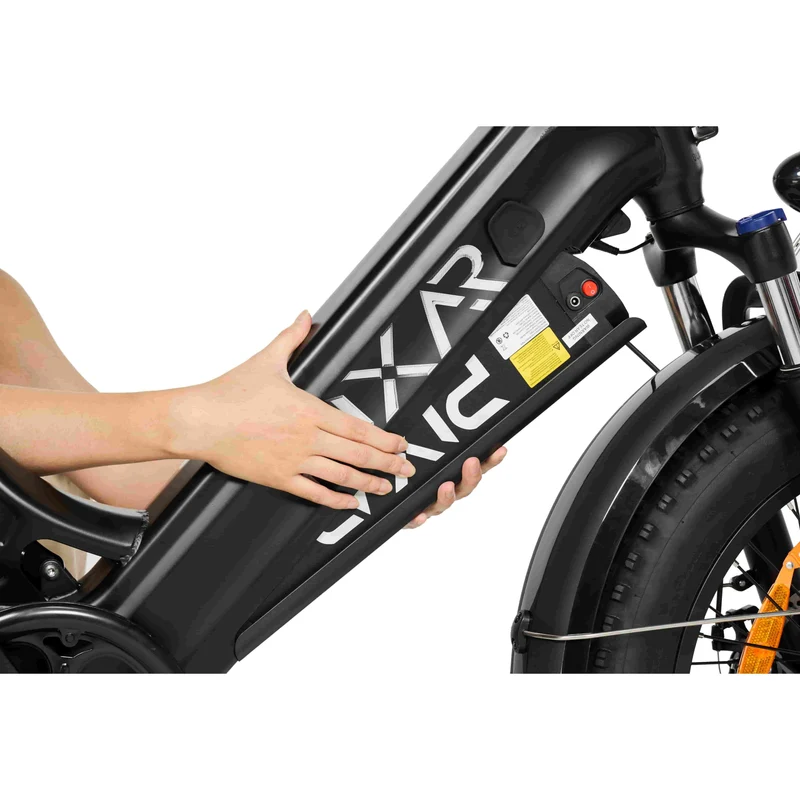

• Battery: 48V*10.4AH
• PAS: 5 Electric Modes
• Frame: Steel

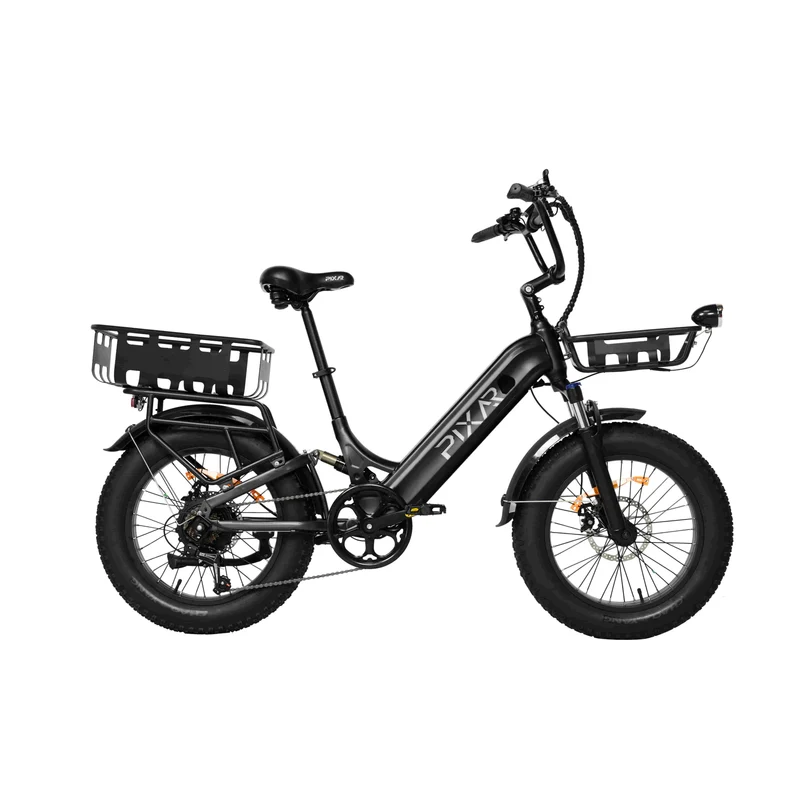

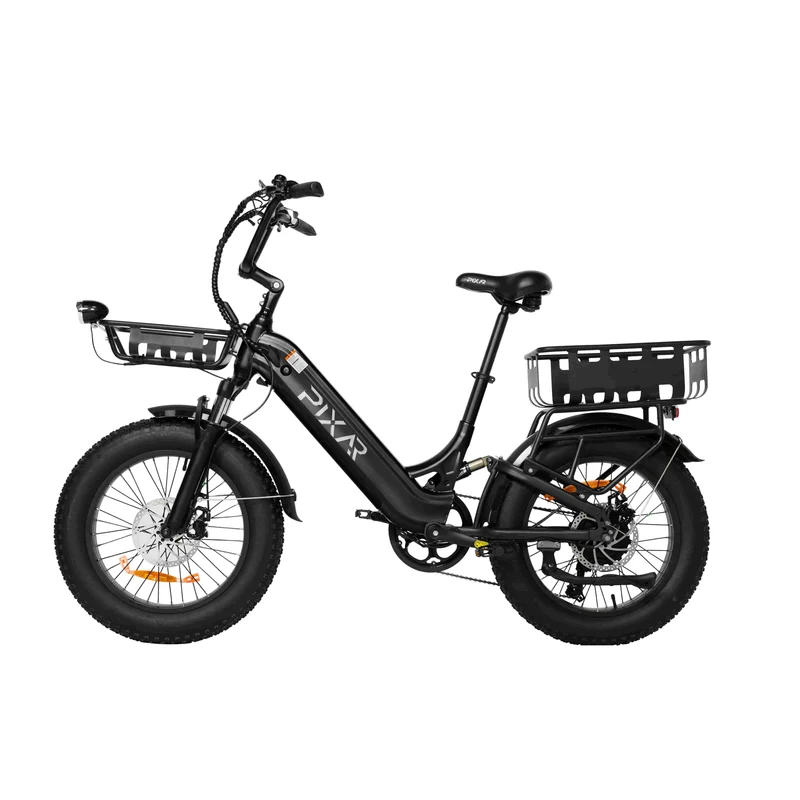

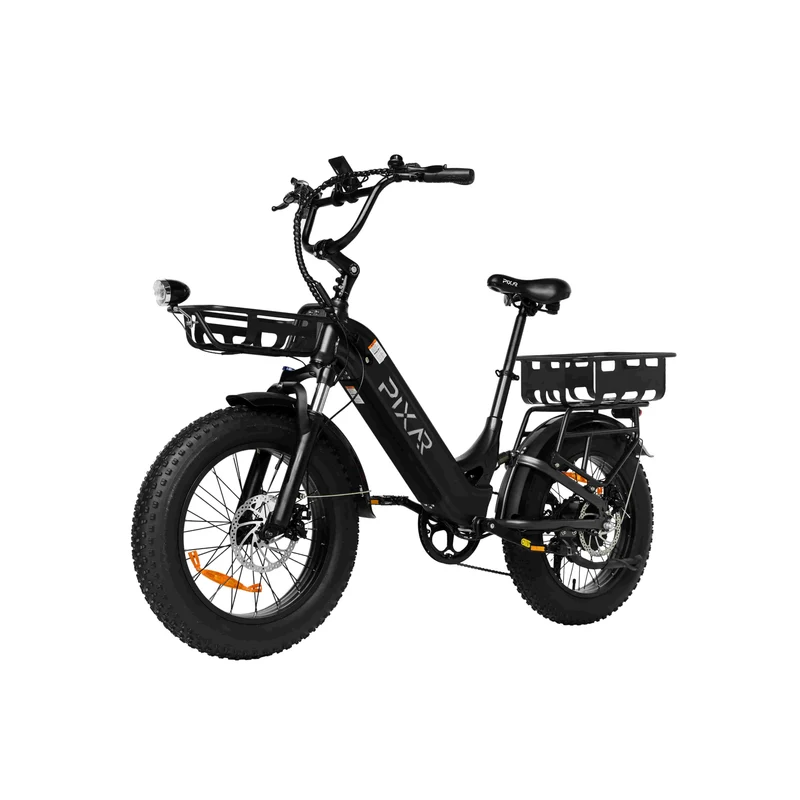

• Frame Basket Mounting: The frame head tube have mounting hole match as Galaxy basket
• Capacity Of A Single Battery Cell: Eve 21700-5000MAH* 26pc
• Battery Cell Brand: Eve
• Mileage: 60KM for 48V*10AH
• Controller: 36V controller (Kchq brand)

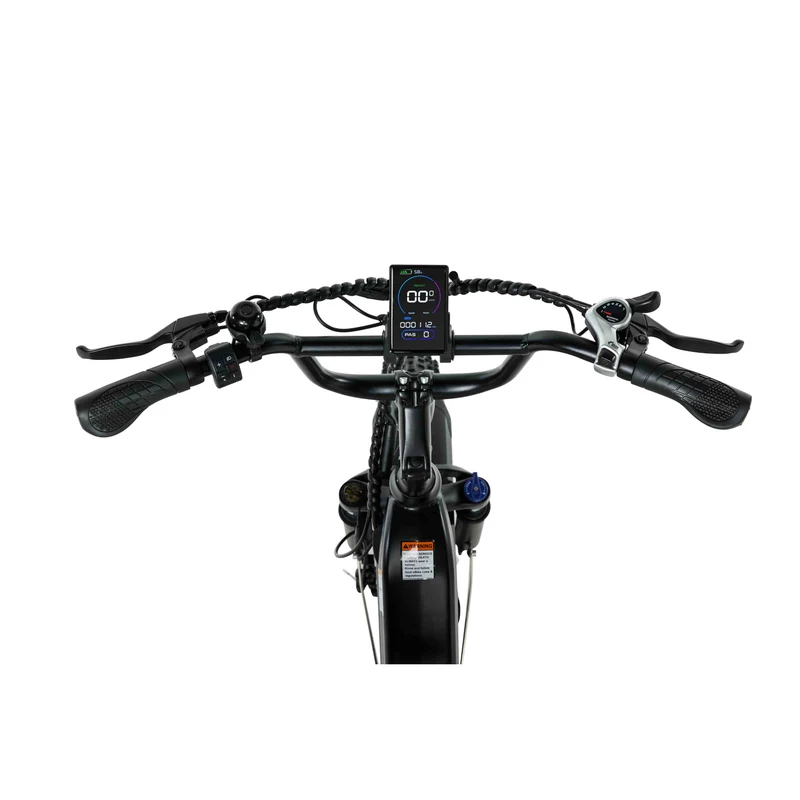

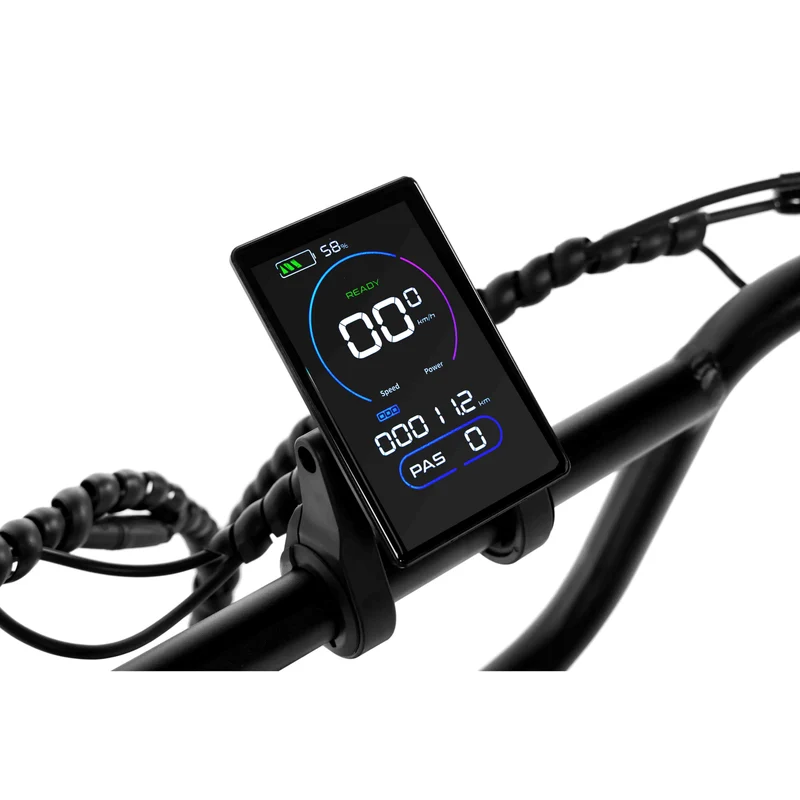

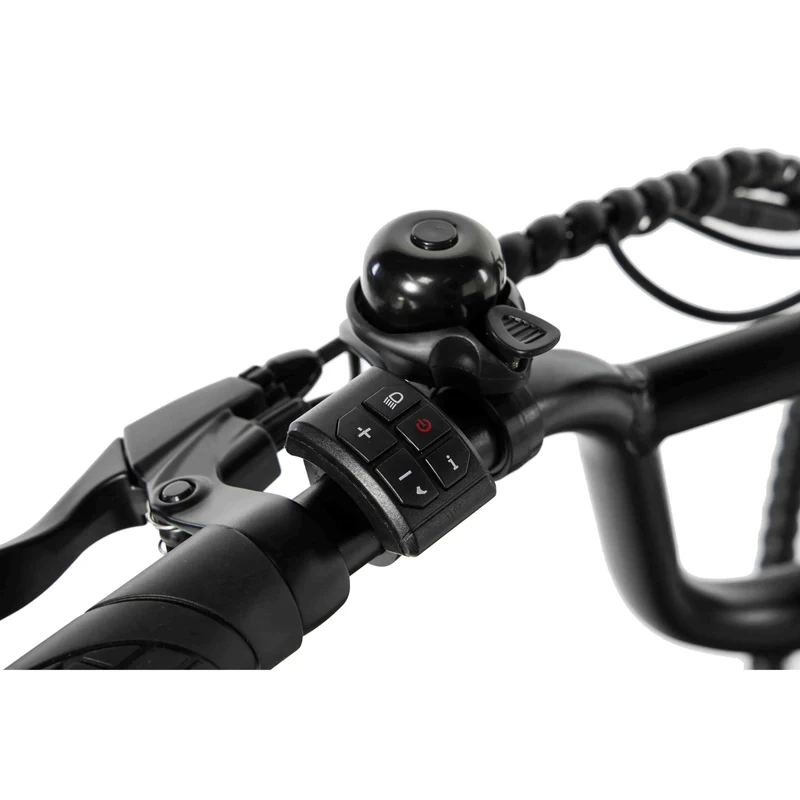

• Display: Middle LCD display (Electric Mode, PAS Mode, Pedal Mode, Type-C)
• Charger: 54.6V 2A charger
• Range Throttle Only: 30km for 10AH
• Range Pedal Assist: 60km for 10AH
• Max Speed: 25KMH (can unlock to 32KM/H)
• Stem: Alloy stem as picture
• Shifter: Shimano Thumb Shifter 7 Speed (TX50)
• Brake Pads: Mechanical disc brake (Filair brand)
• Brake Lever (EU Law): Left brake lever control rear wheel and right brake lever control front wheel
• Tire Brand: Chaoyang

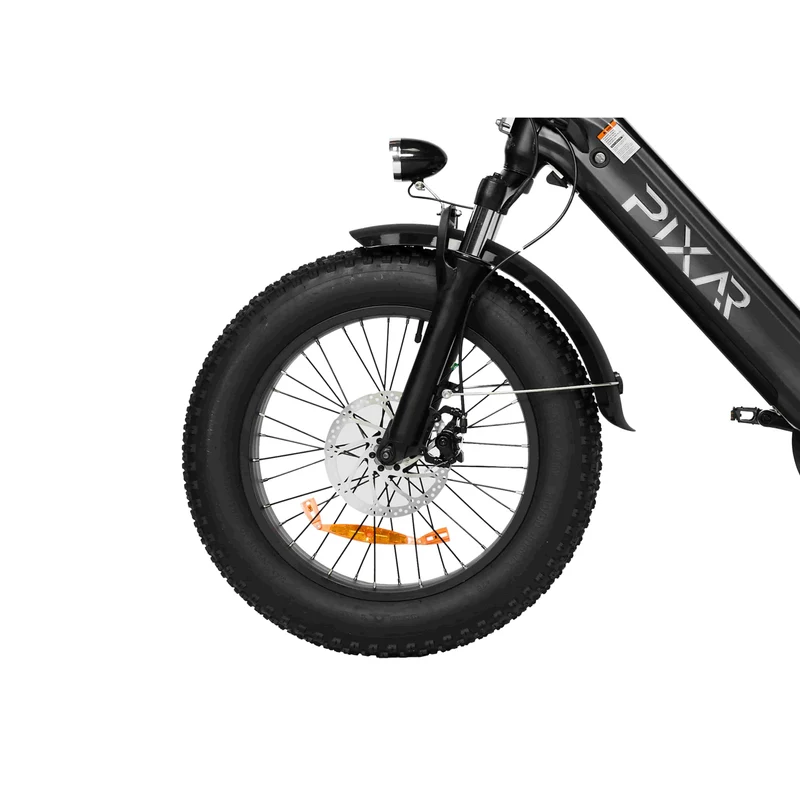

• Tire Size: 20"x4.0 fat tire
• Pedal: Plastic with reflectors
• Chain: Normal chain
• The Rear Derailleur: Have the derailleur protector /ATA brand freewheel + rear derailleur model is RD
• Screws: All screws must be rust resistant

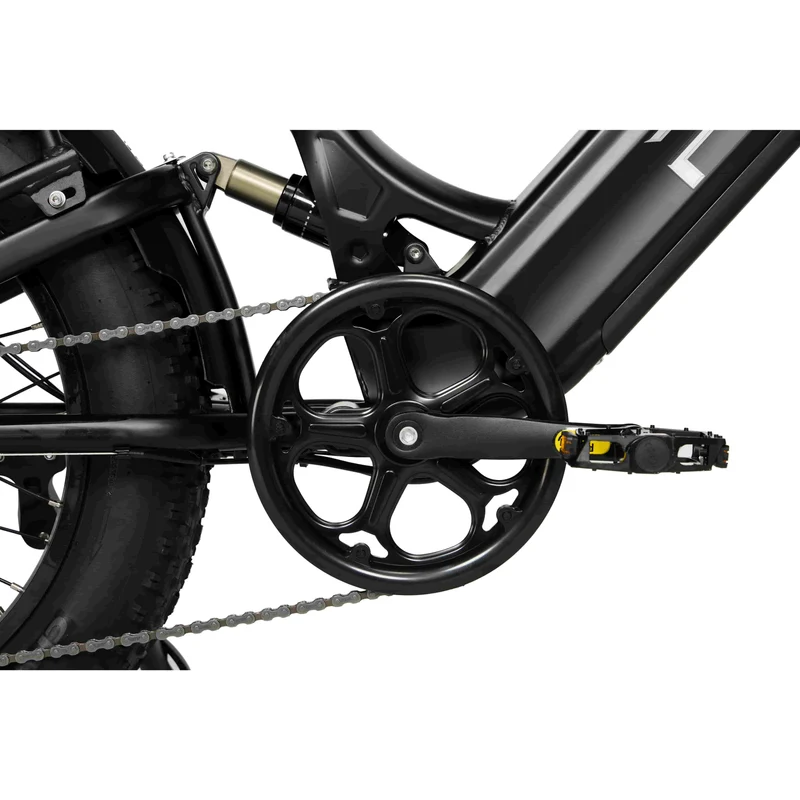

• Crank Set: 52T*170mm
• Disconnect: Comes connected
• Front Light: Front light with waterproof disconnect

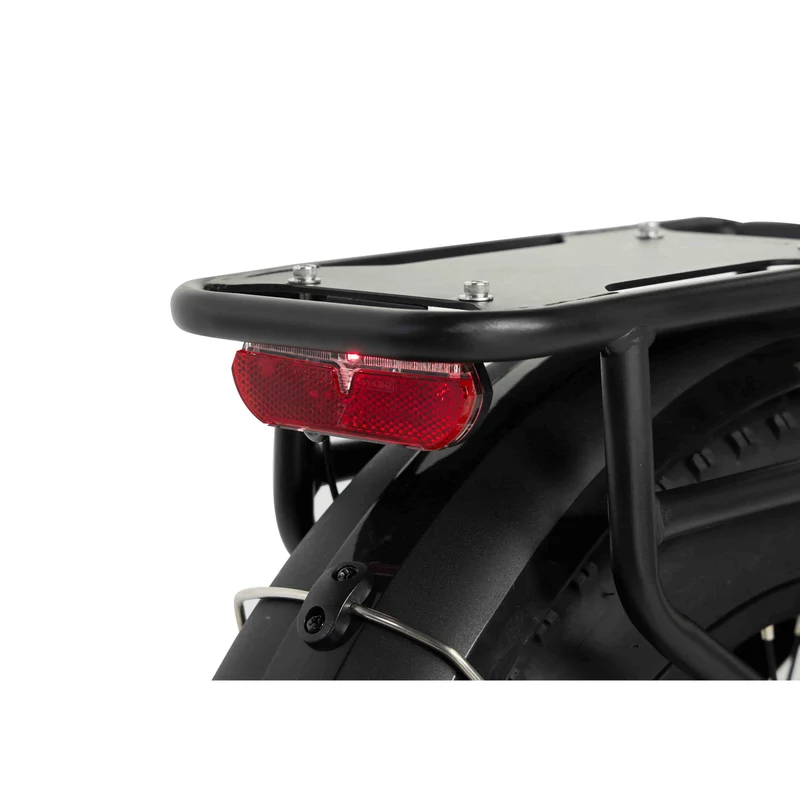

• Back Light: Front light with waterproof disconnect
• Fenders: PVC plastic front and rear fenders (matt black color)

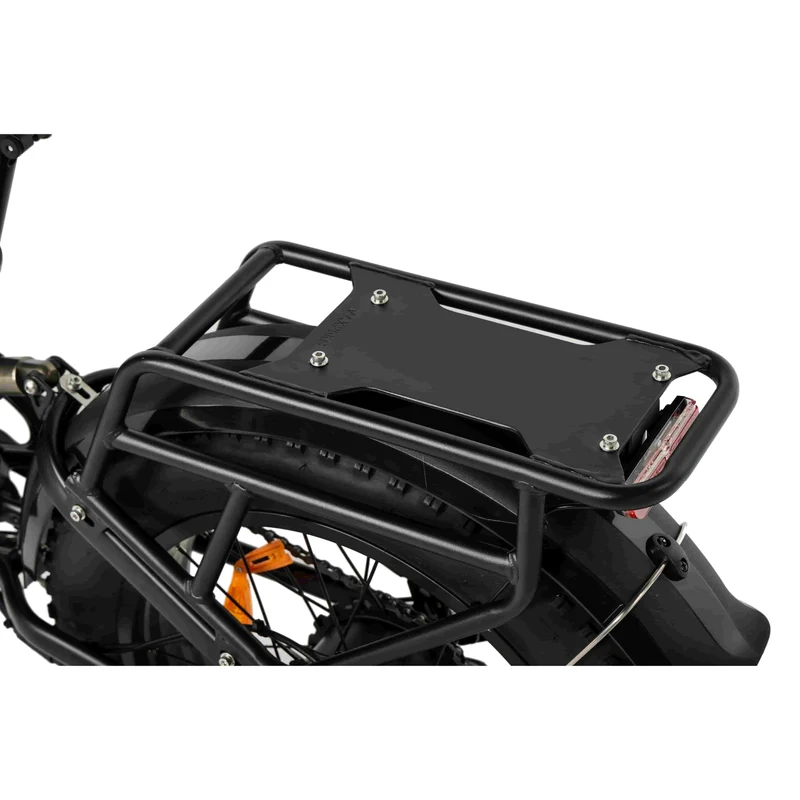

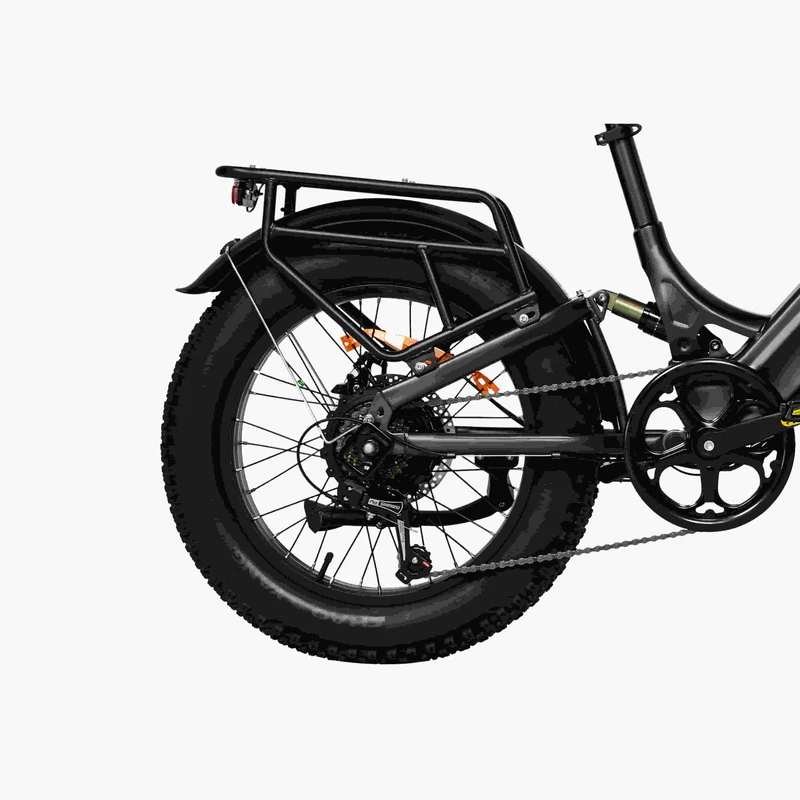

• Racks: Strong steel rack

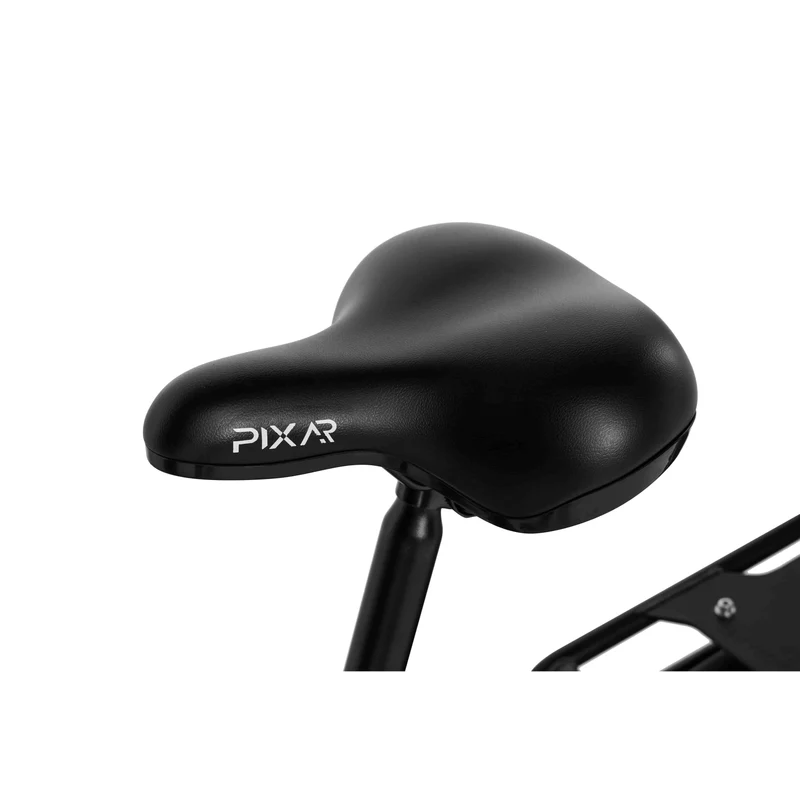

• Seat: Comfortable seat

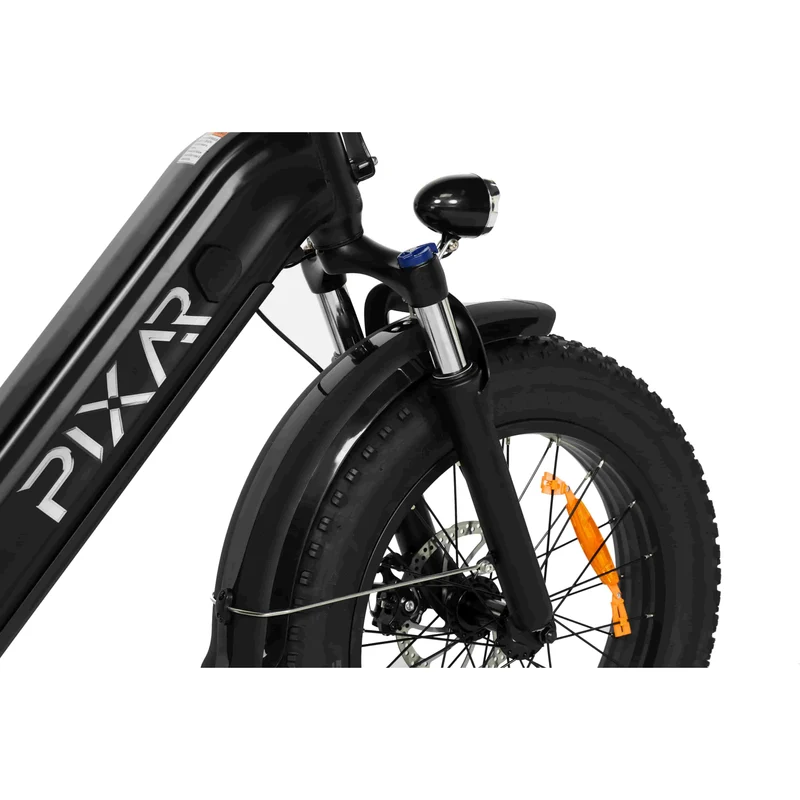

• Fork: Steel stanchion with aluminum crown with lockout
• Brake Pads Shape: Square shape
• Charging Time: 5.2 h
• Kickstand: Steel kick stand
• Bell: Electrical horn remote
• Manual: Please provide ebike user manual PDF file
• Tools: The tools
• Throttle: With waterproof disconnect
• Bike Weight: Net weight: 37.5kg, the gross weight: 48.2kg
• Capacity Load: 150KG
• Sensor: Speed sensor, 12 gears

Package Contents

• Battery x1
• User Manual x1
• Pedals x2
• Front Wheel x1
• Seat x1
• Toolkit x1
• Keys x2
• Charger x1

[/SPECIFICATIONS][MANUAL]

• User Manual
• PIXAR-Ried1-BS EN 15194 certificate
• PIXAR-Ried1-BS EN 15194 report-UKCA

Video:PIXAR Ried1 E-Bike Unboxing & First Look | On-Screen Text Details

Video:PIXAR Ried1 E-Bike Speed Unlocking Tutorial

Video:How to Install the Basket on the PIXAR Ried1 E-Bike | Text Guide?
