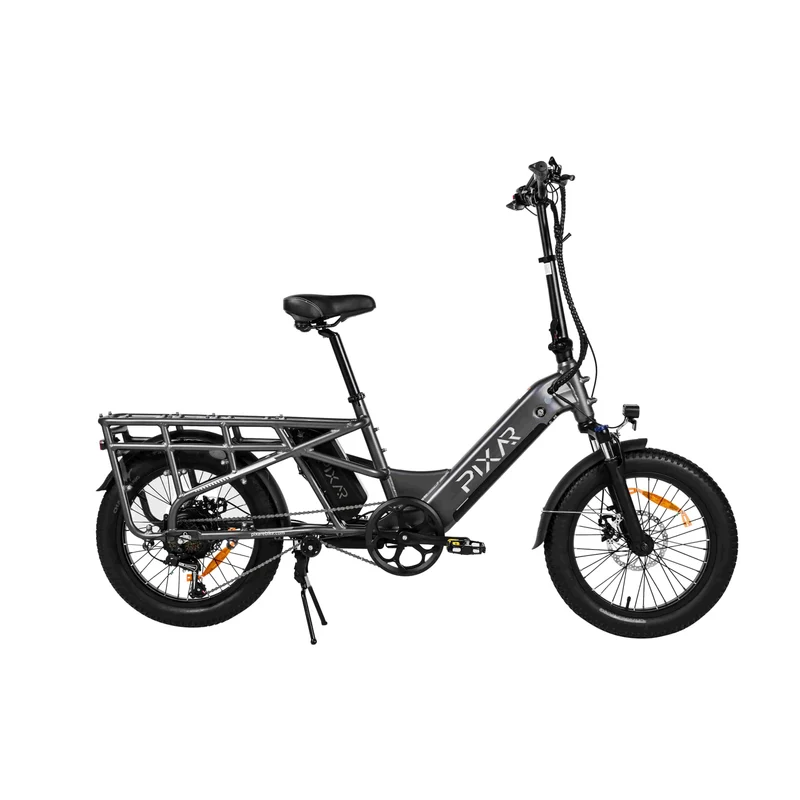

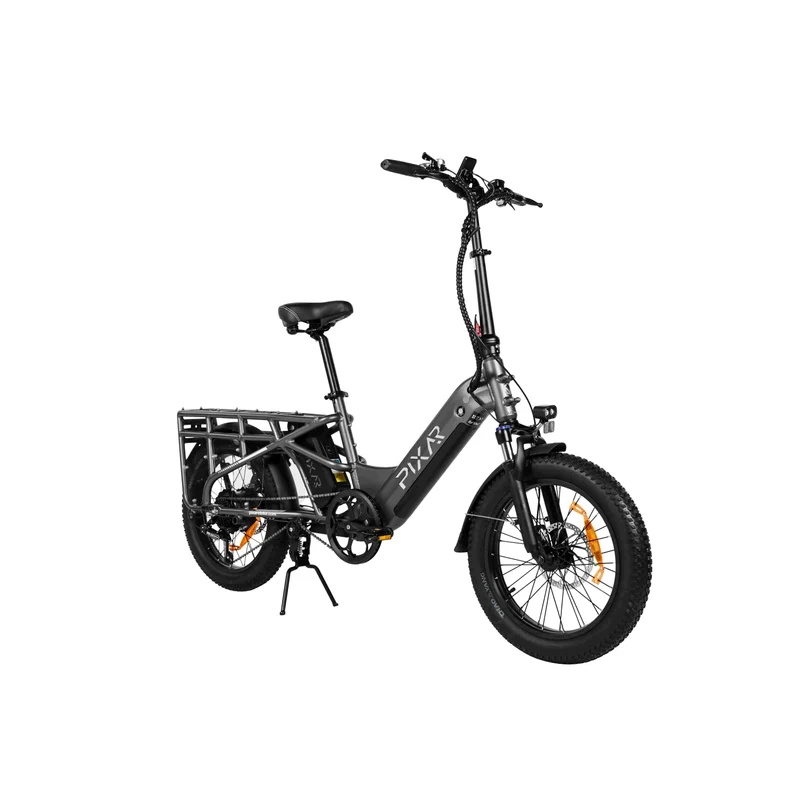

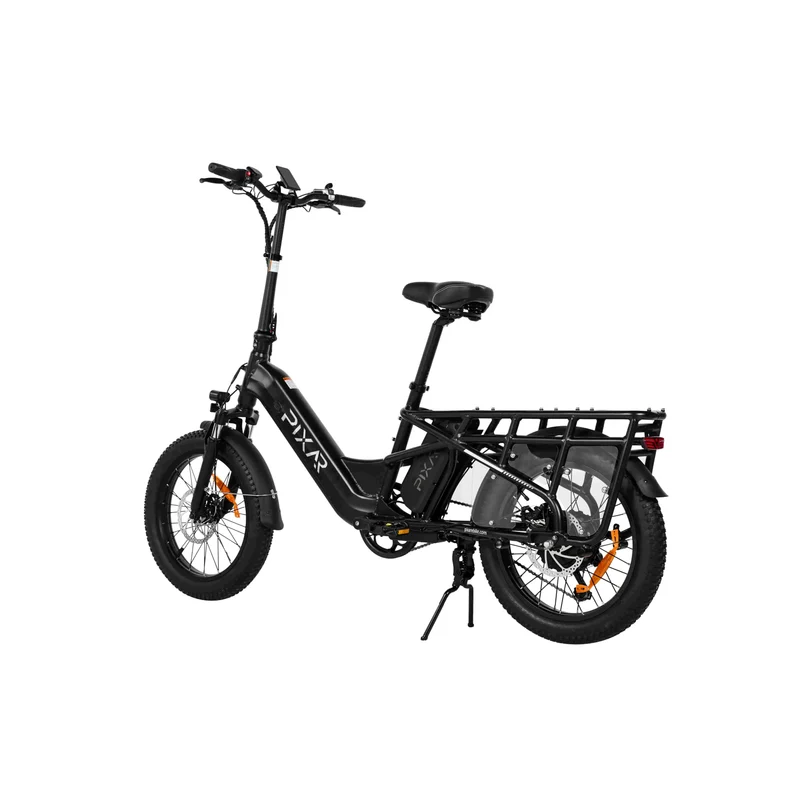

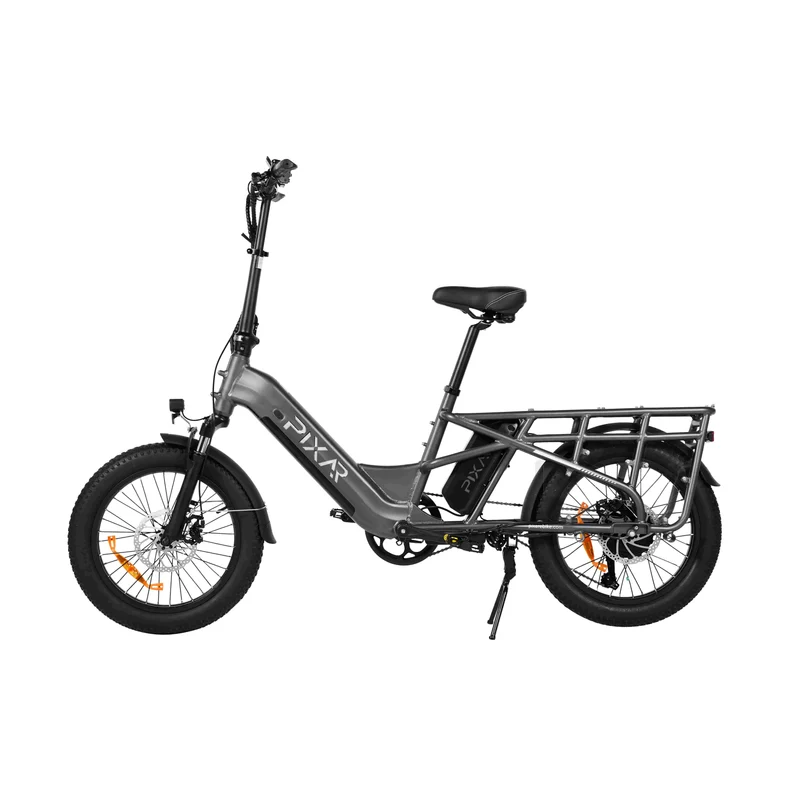

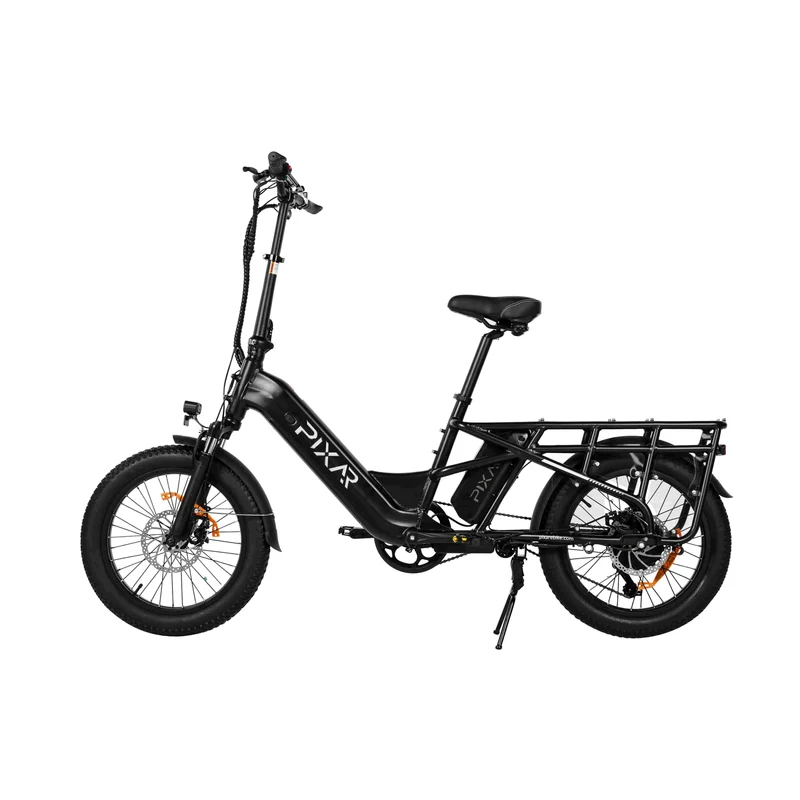

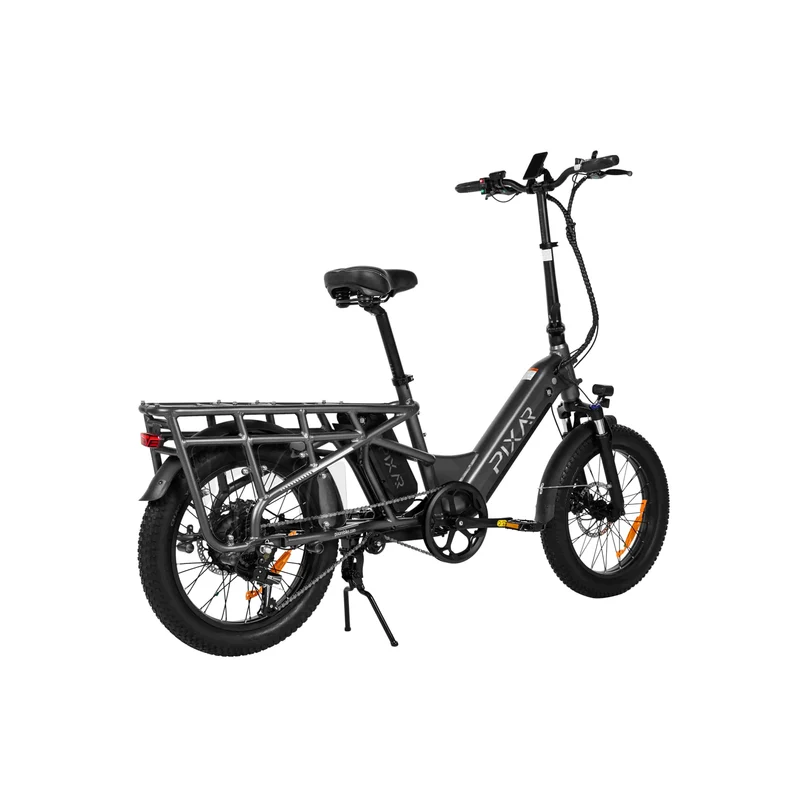

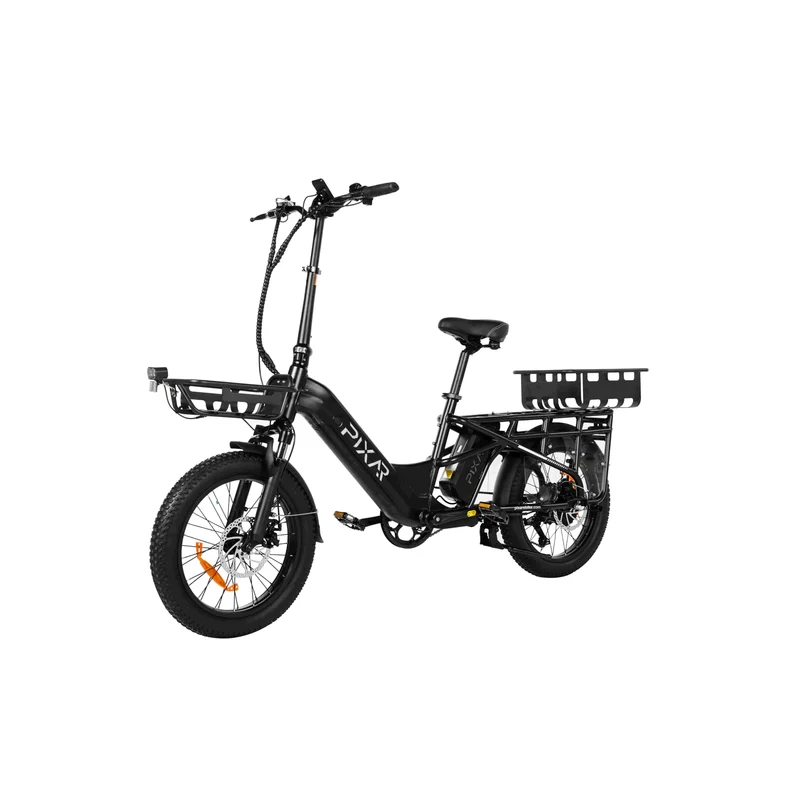

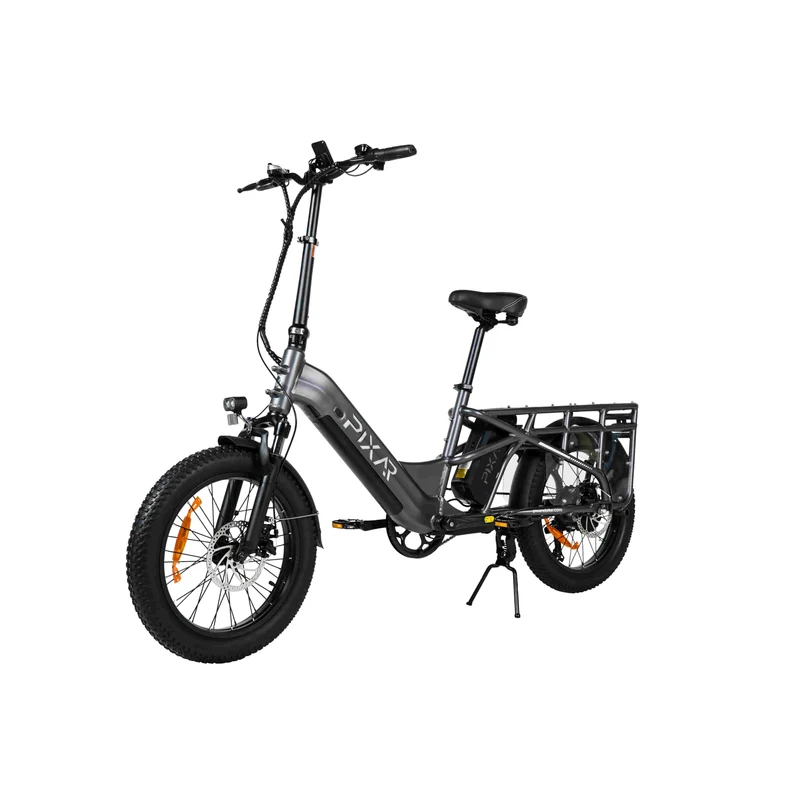

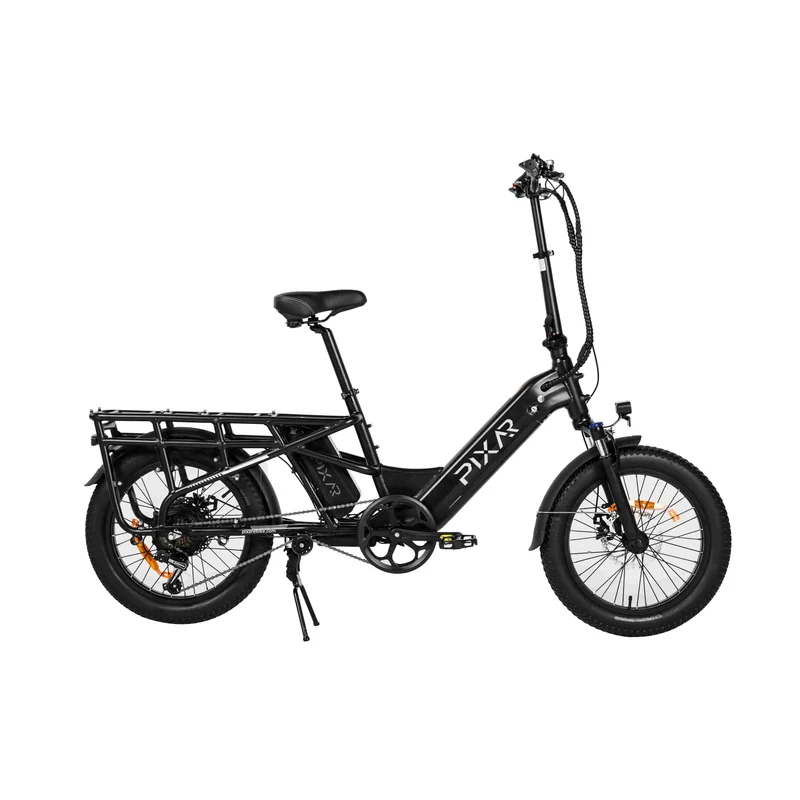

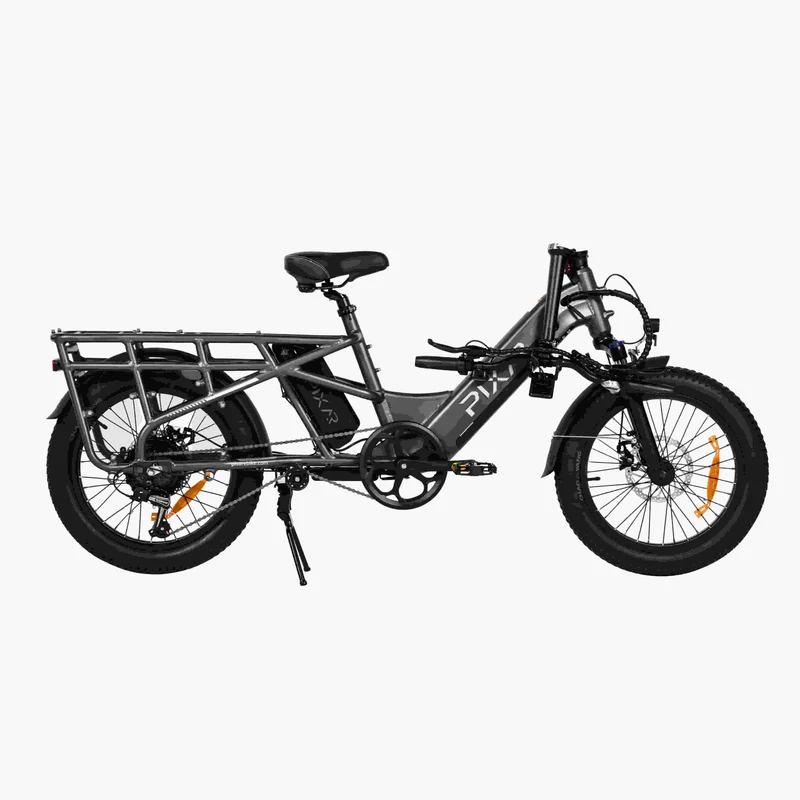

PIXAR Plus7 20" City Electric Bike 500W Motor 48V 20.4Ah Battery

692,84 €1257,47 €44% OFF
Ship to: EU
Option: 20.4AH (without baskets)
Color: Black
Quantità

Descrizione

[DESCRIPTION]

[/DESCRIPTION][SPECIFICATIONS]

General

  • Brand:PIXAR
  • Model:Plus7
  • Type:Electric Bike
  • Color:Black,Grey

Specifications

  • Motor: 48V*500W Brushless hub motor (Jiabo brand)

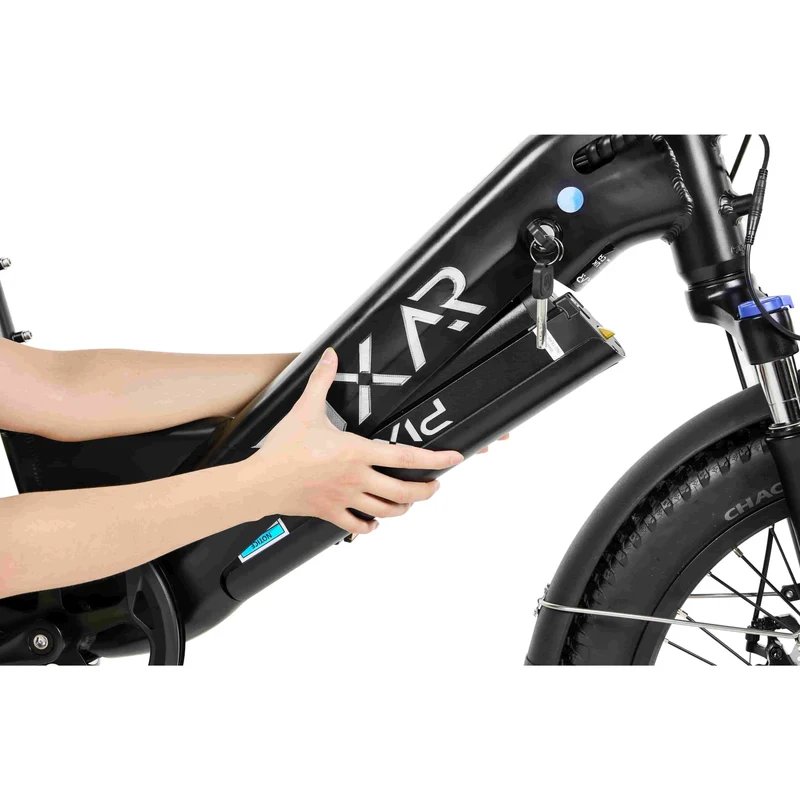

  • Battery: 48V*20.4AH (front battery 48V*10AH + rear battery 48V*10.4AH) Eve brand
  • Pas: 5 Modes
  • Frame: Aluminium alloy

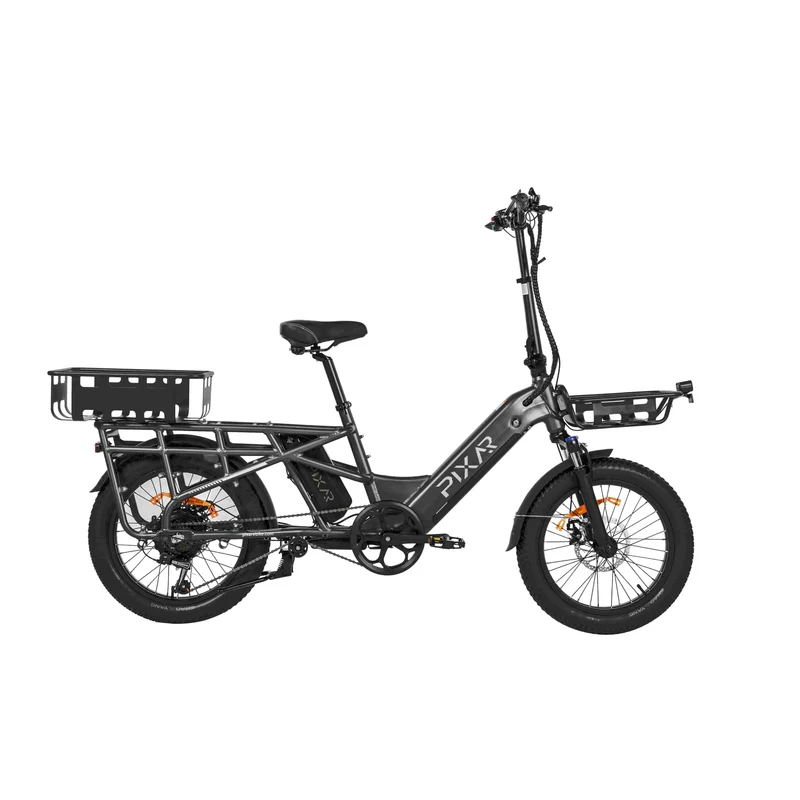

  • Frame Basket Mounting: The frame head tube have mounting hole match as Galaxy basket
  • Controller: 48V controller/9 tubes (Xi Ge Si brand)

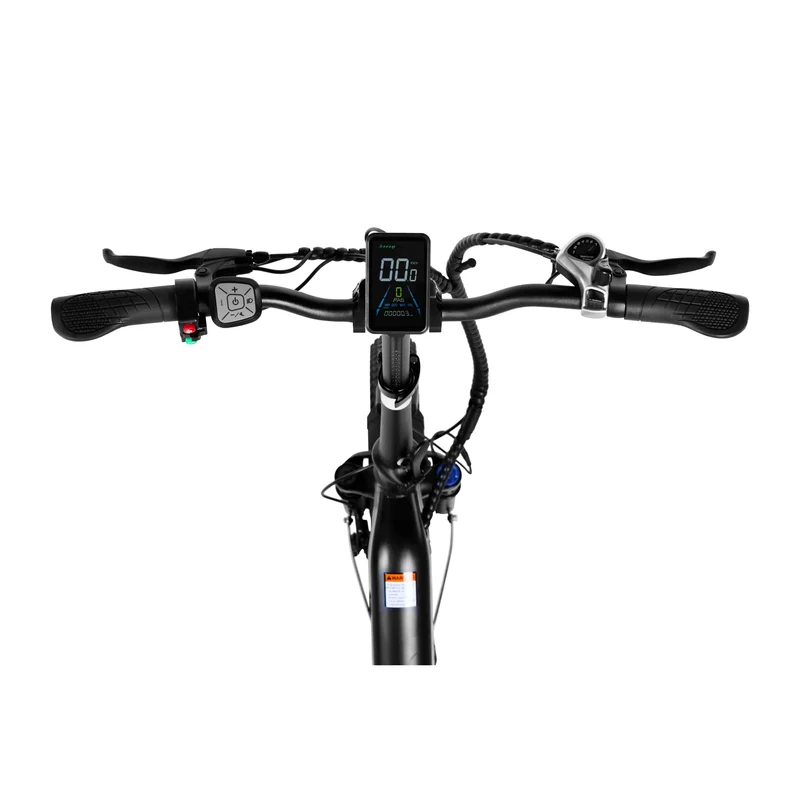

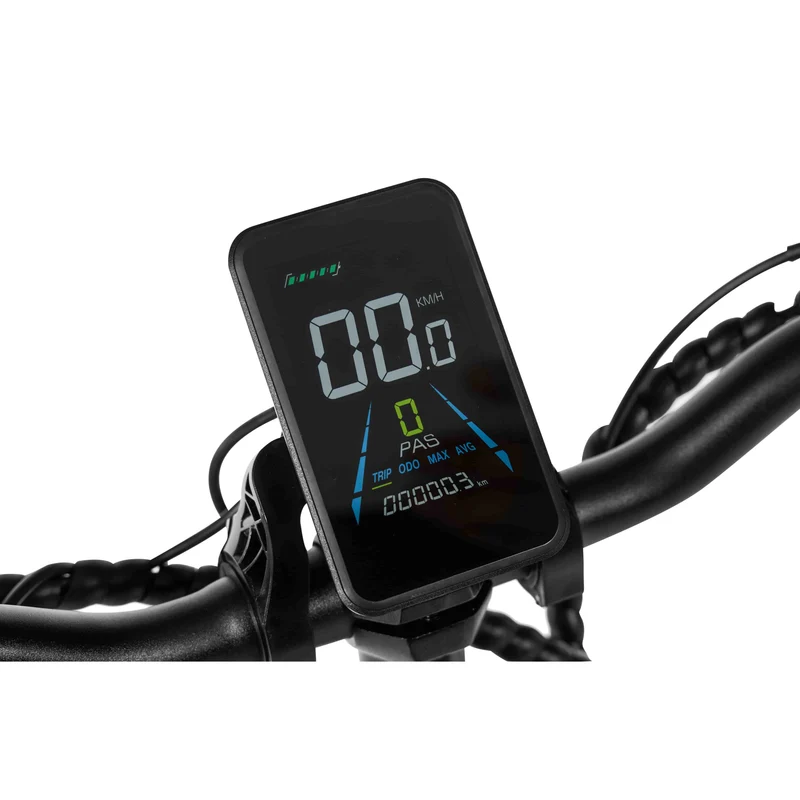

  • Display: Middle LCD display
  • Charger: 54.6V 2A charger
  • Range Throttle Only: 60 km for 20.4AH, 30km for 10AH
  • Range Pedal Assist: 120 km for 20.4AH, 60km for 10AH
  • Max Speed: 25km/h (can unlock to 32km/h)
  • Stem: Alloy stem as picture
  • Shifter: Shimano Thumb Shifter 7 Speed (TX50)

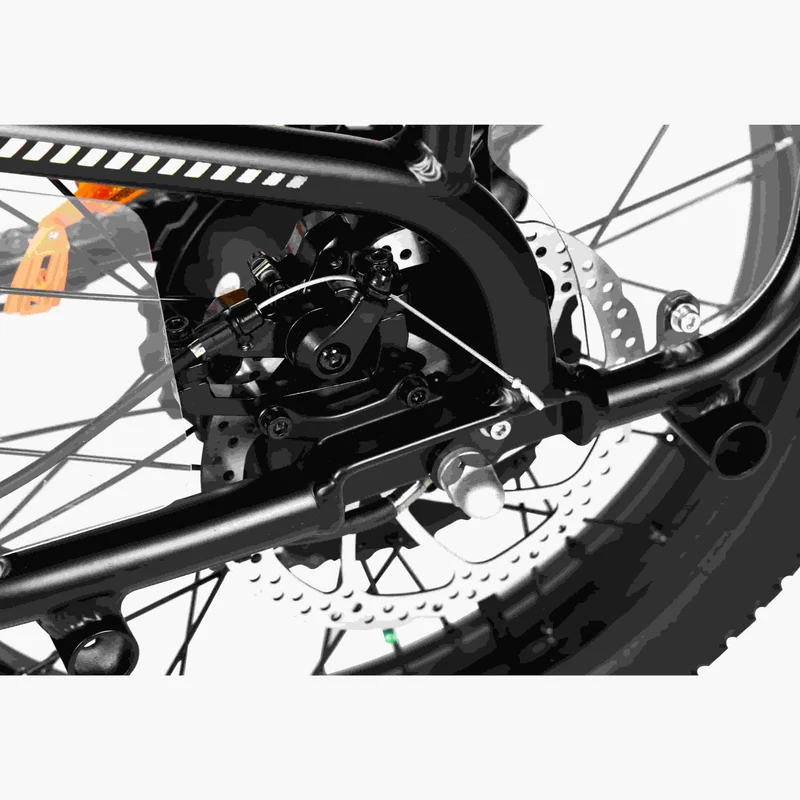

  • Brake Pads: Mechanical disc brake (Filair brand)
  • Brake Lever (EU Law): Left brake lever control rear wheel and right brake lever control front wheel
  • Tire Brand: Chaoyang

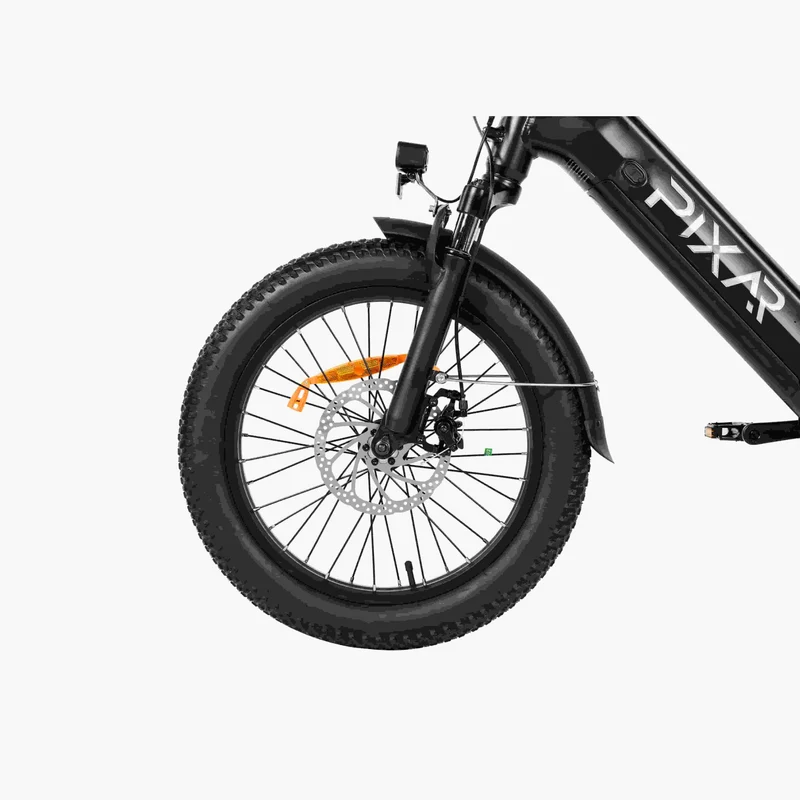

  • Tire Size: 20"x3.0 fat tire
  • Pedal: Plastic with reflectors
  • Chain: Normal chain
  • The Rear Derailleur: Have the derailleur protector /ATA brand freewheel + rear derailleur model is RD
  • Screws: All screws must be rust resistant
  • Crank Set: 52T*170mm
  • Disconnect: Comes connected

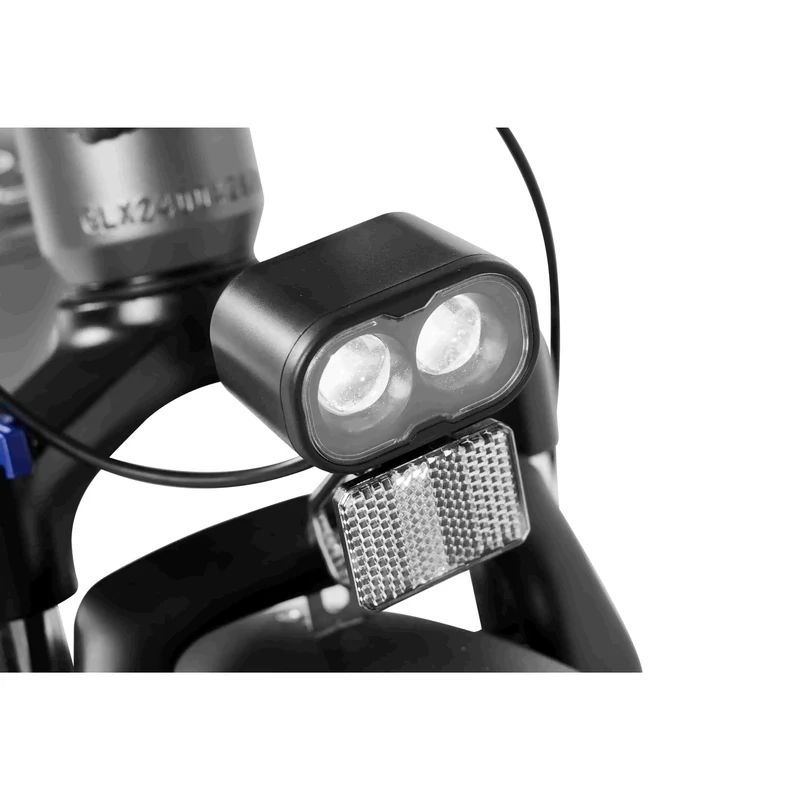

  • Front Light: Front light with waterproof disconnect

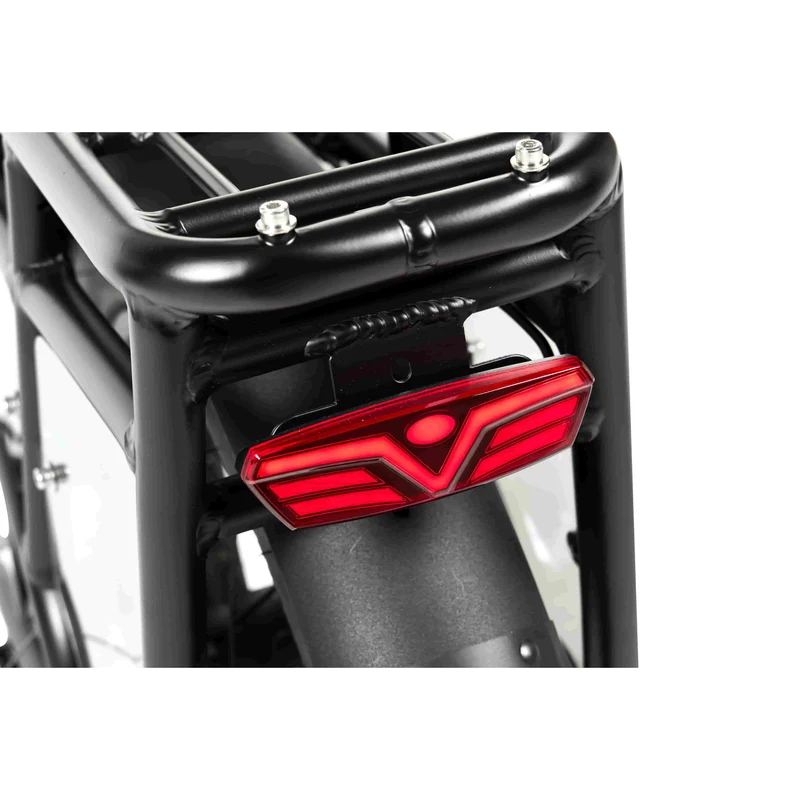

  • Back Light: Front light with waterproof disconnect
  • Fenders: PVC plastic front and rear fenders (matt black color)
  • Racks: Strong steel rack connect with frame

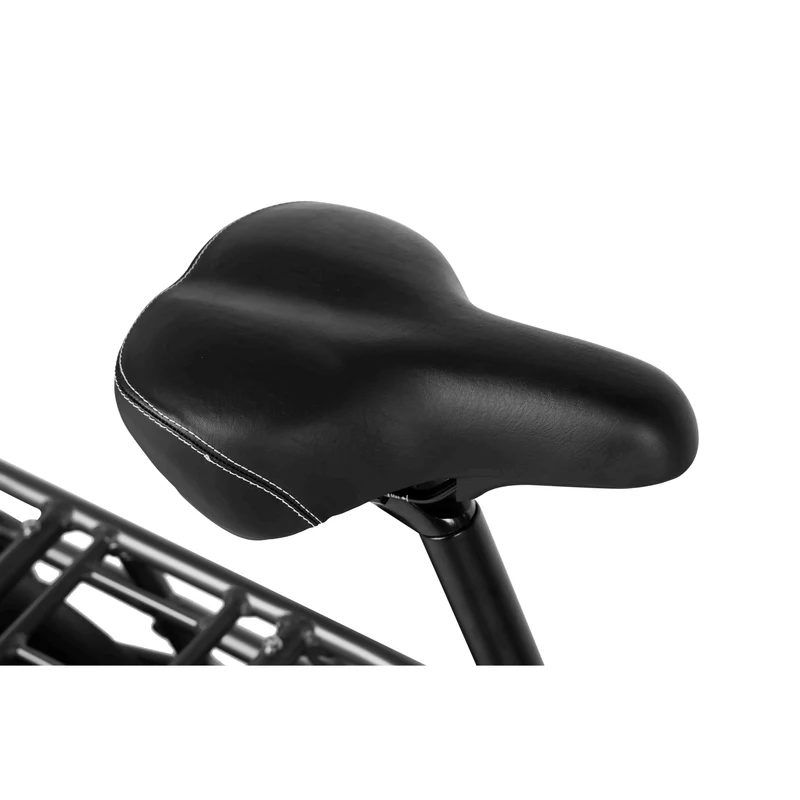

  • Seat: Comfortable seat
  • Fork: Steel stanchion with aluminum crown with lockout
  • Brake Pads Shape: Square shape
  • Charging Time: 5.2 h

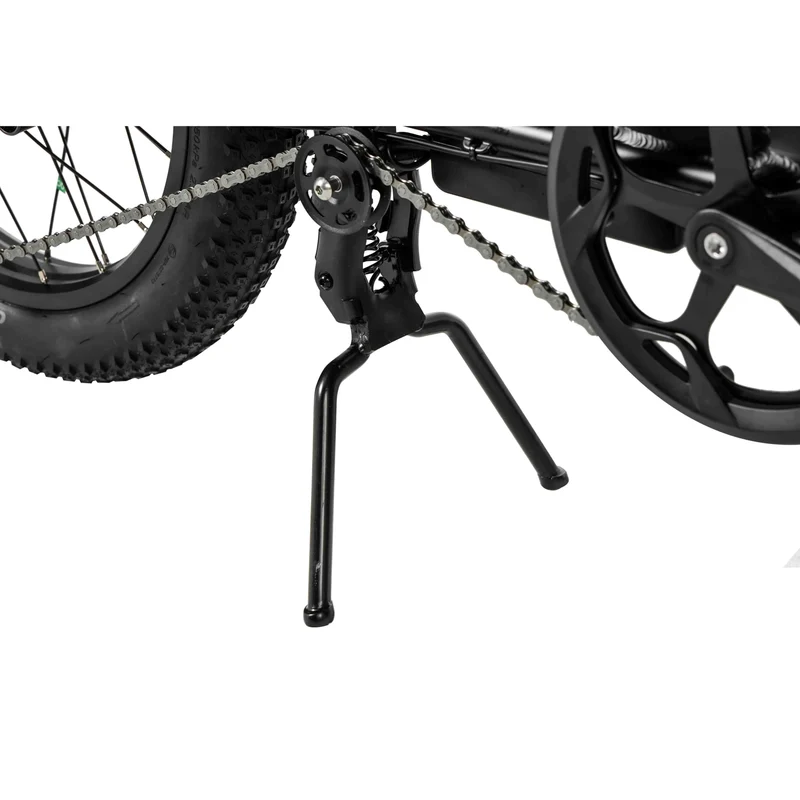

  • Kickstand: Steel kick stand
  • Bell: Electrical horn remote
  • Manual: Please provide ebike user manual PDF file
  • Tools: The tools

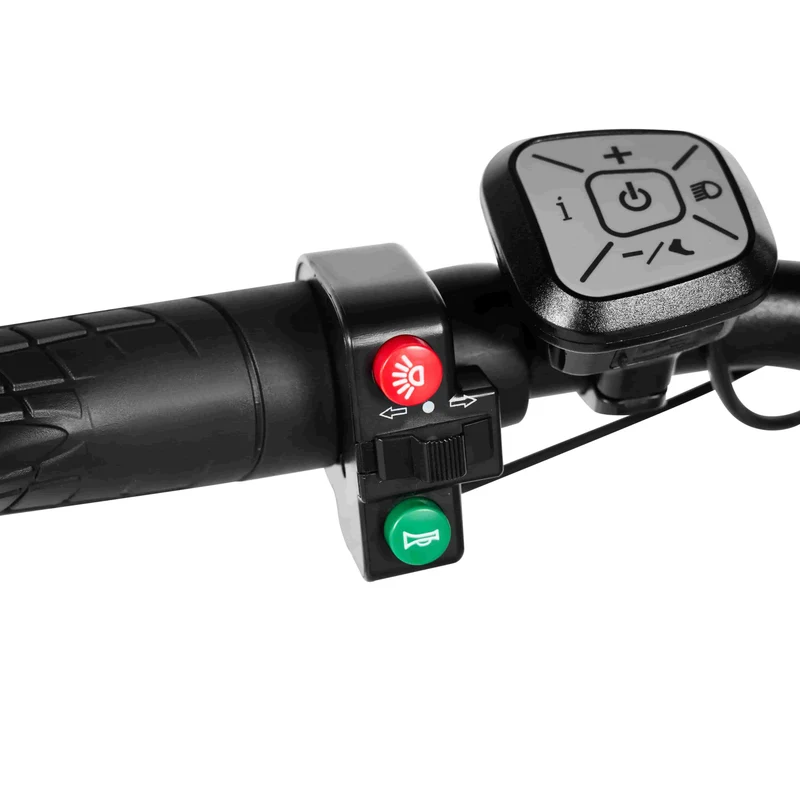

  • Throttle: With waterproof disconnect
  • Bike Weight: Net weight: 37.5kg, the gross weight: 48.2kg
  • Capacity Load: 150kg
  • Sensor: Speed sensor, 12 gears

Package Contents

  • Battery x1
  • User Manual x1
  • Pedals x2
  • Front Wheel x1
  • Seat x1
  • Toolkit x1

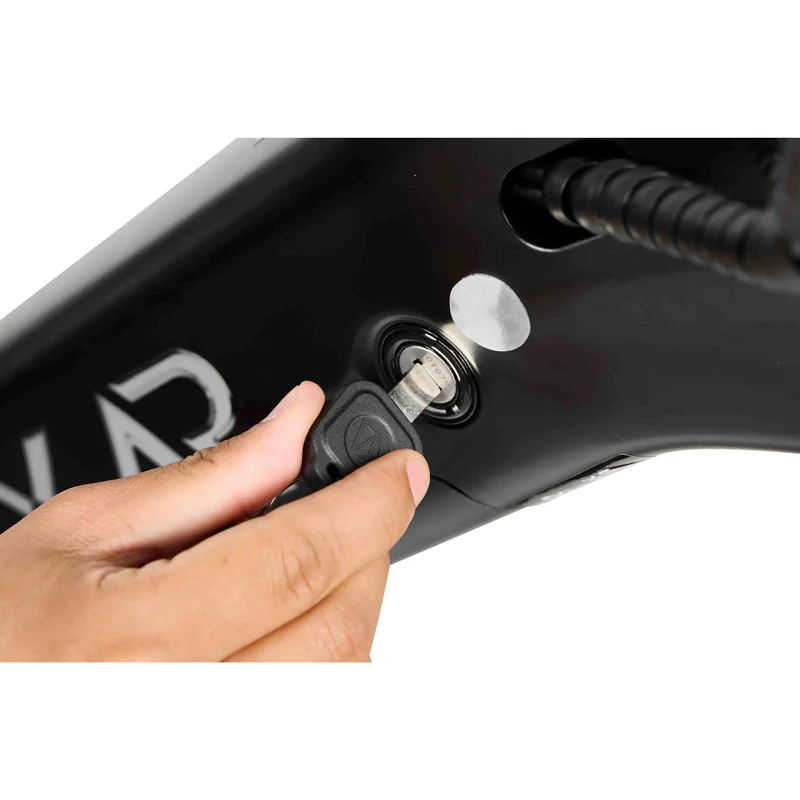

  • Keys x2
  • Charger x1

[/SPECIFICATIONS][MANUAL]

  • User Manual
  • PIXAR-Plus7-BS EN 15194 certificate
  • PIXAR-Plus7-BS EN 15194 report-UKCA
