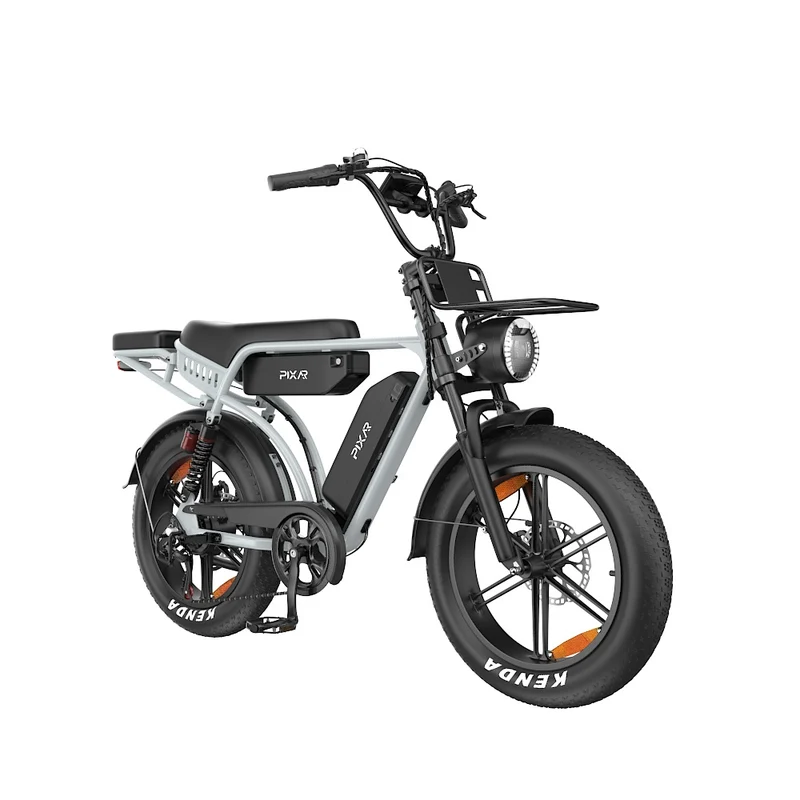

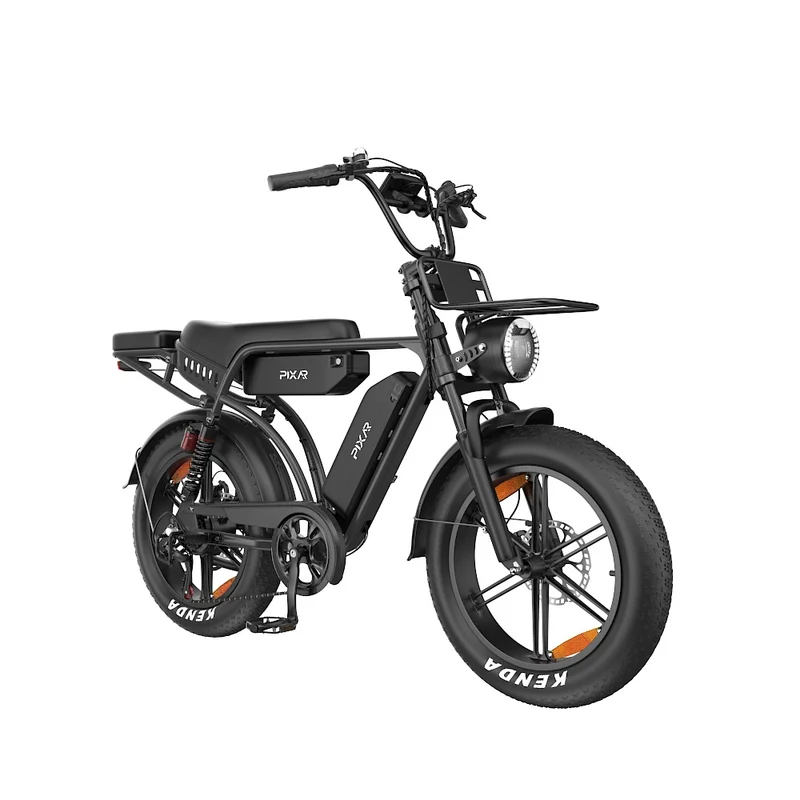

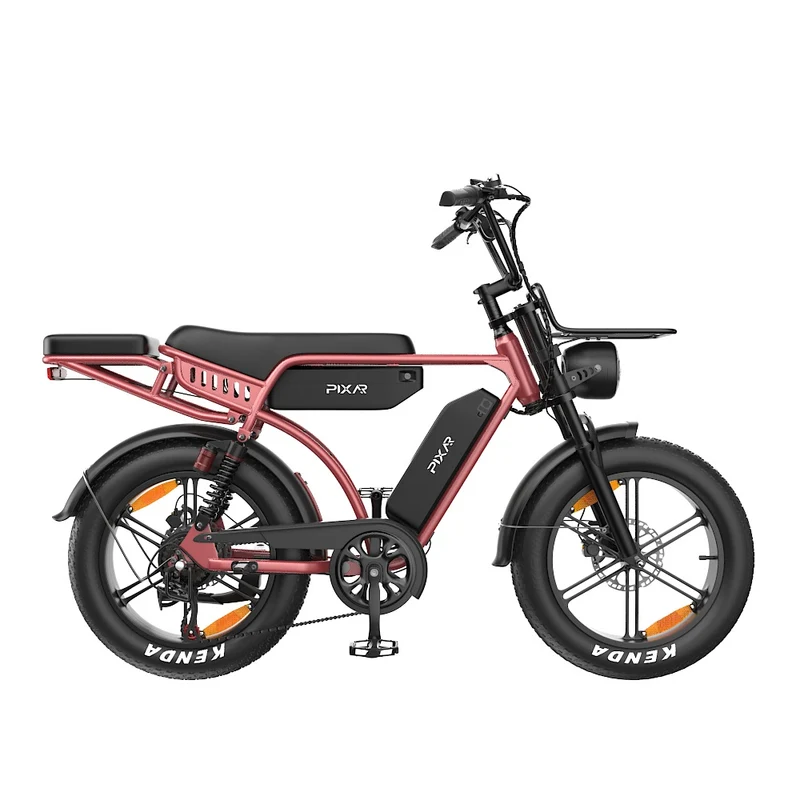

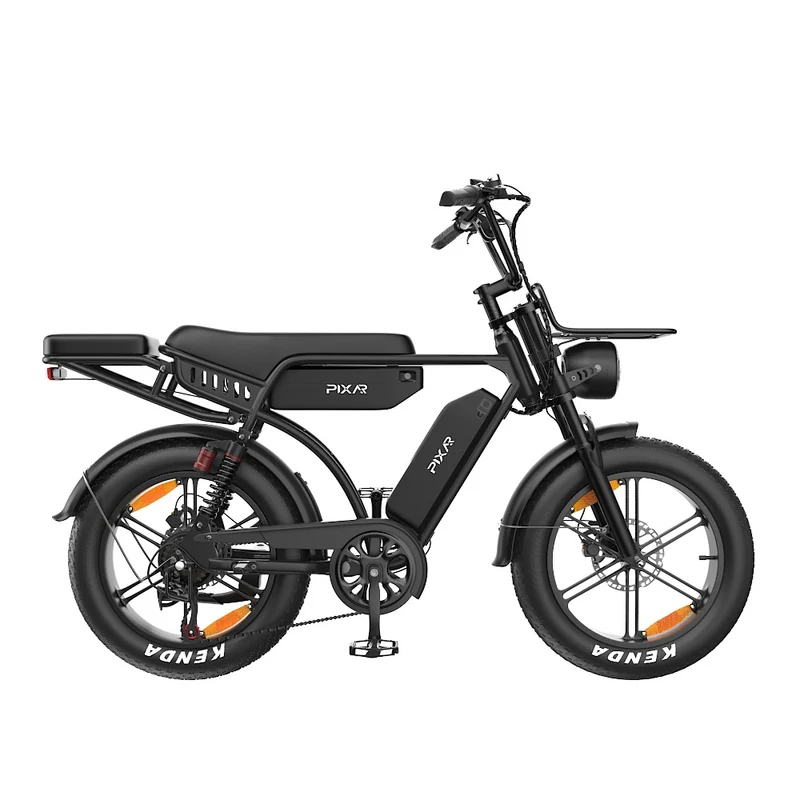

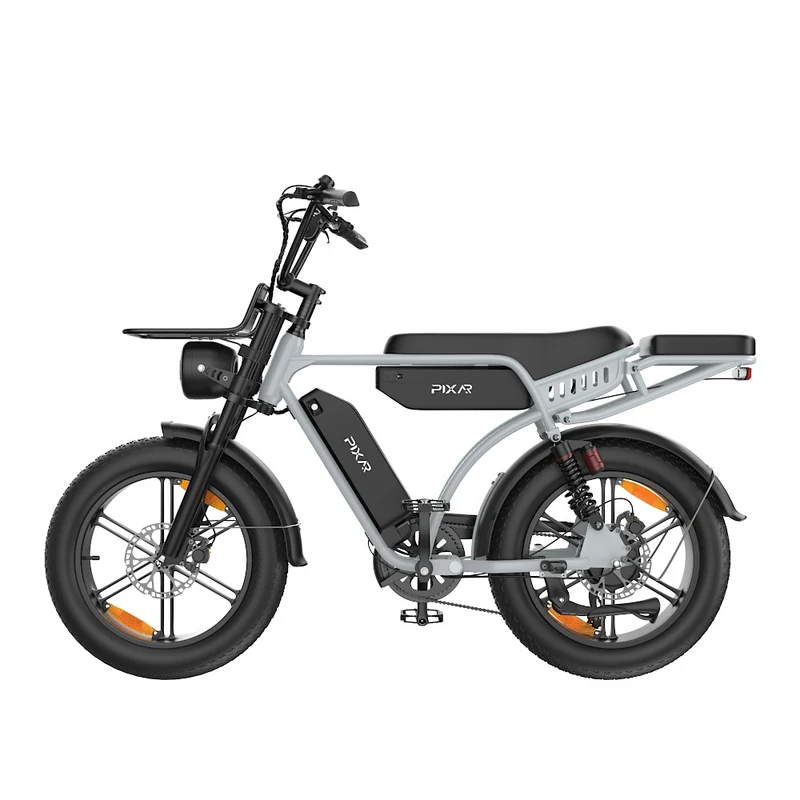

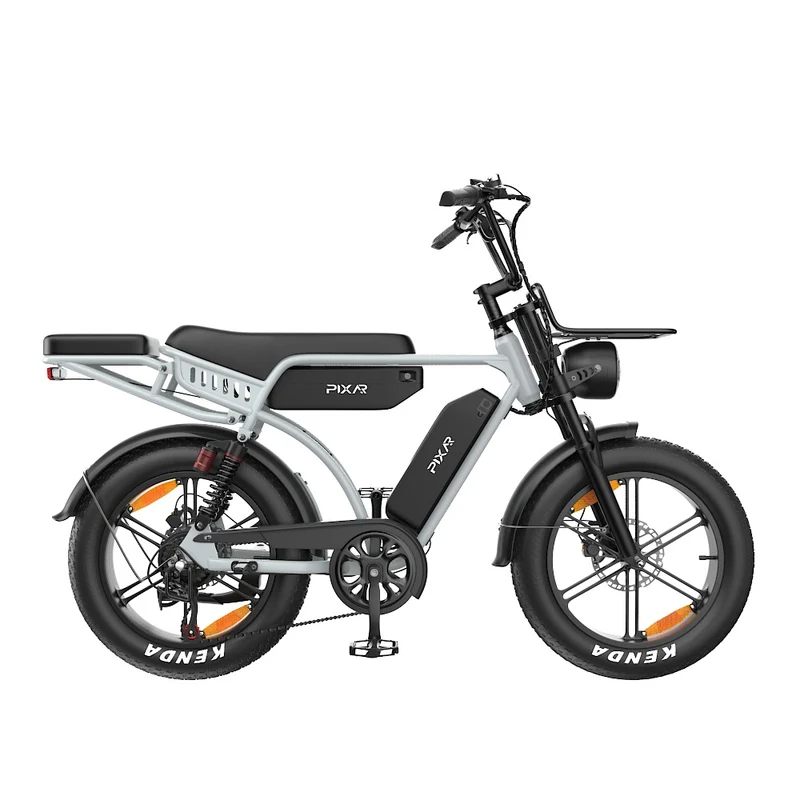

PIXAR M9 20" Retro Electric Bike 250W Motor 48V 35Ah Battery

[DESCRIPTION]

Experience the ultimate fusion of power and intelligence with the M9 Electric Bike. Engineered with a high-performance BAFANG 250W motor and a dual Samsung battery system, this e-bike is designed for riders who demand smooth power delivery and an industry-leading 240km range.

🚀 Next-Gen Propulsion: BAFANG 250W Motor

Experience a smarter way to ride. The M9 features a high-speed BAFANG brushless motor integrated with a Sinusoidal Wave Structure and 5-level Pedal Assist System (PAS) for a smoother, more intuitive power delivery.

• Maximum Torque: 60 N.m
• Maximum Speed: 3805 rpm
• Ride Quality: Ultra-smooth acceleration with reduced noise.

🔋 Massive Dual-Battery Range (240km)

Go further without the range anxiety. The M9 is powered by dual 48V 17.5Ah Samsung 21700 cells, offering 6% higher energy density than standard batteries.

• Total Range: Up to 240km on a single charge.
• Quick-Release Design: Swap or charge batteries with ease.
• All-Weather Ready: IPX6 waterproof rating for reliable performance in rain or shine.

🔒 Smart Security: NFC Unlock & Anti-Theft

Ditch the keys. The M9 features cutting-edge NFC Unlocking and a military-grade Intelligent Burglar Alarm.

• NFC Unlock: Instant 0.5s response time with 99.9% success rate.
• 100dB Alarm: Instant 0.5s trigger if the bike is moved or tampered with.

🚲 Safety & Visibility

Navigate city streets with confidence. The frame-integrated Left/Right Turn Signals ensure you are visible to drivers and pedestrians at all times.

• Visibility Range: 150 meters.
• Brightness: 50 lm indicators.

📱 Built-in Tech & Charging

Keep your journey connected. The M9 includes a Type-C Fast Charging port (12W output) and a sturdy integrated phone mount, compatible with all iOS and Android devices.

Technical Specifications

Motor	BAFANG 250W Brushless (60 N.m)
Battery	Dual 48V 17.5Ah Samsung 21700 Cells
Max Range	240km
Waterproof Rating	IPX6
Security	NFC Unlock & 100dB Anti-Theft Alarm
Charging	12W Type-C Fast Charge

250W High Speed
Brushless Motor

Smooth & Reliable: BAFANG 250W High Speed Brushless Motor with 5-Level PAS & Sinusoidal Wave Structure. Experience a smoother ride and smarter power delivery.

3805rpmMax Speed 60 N.mMax Torque

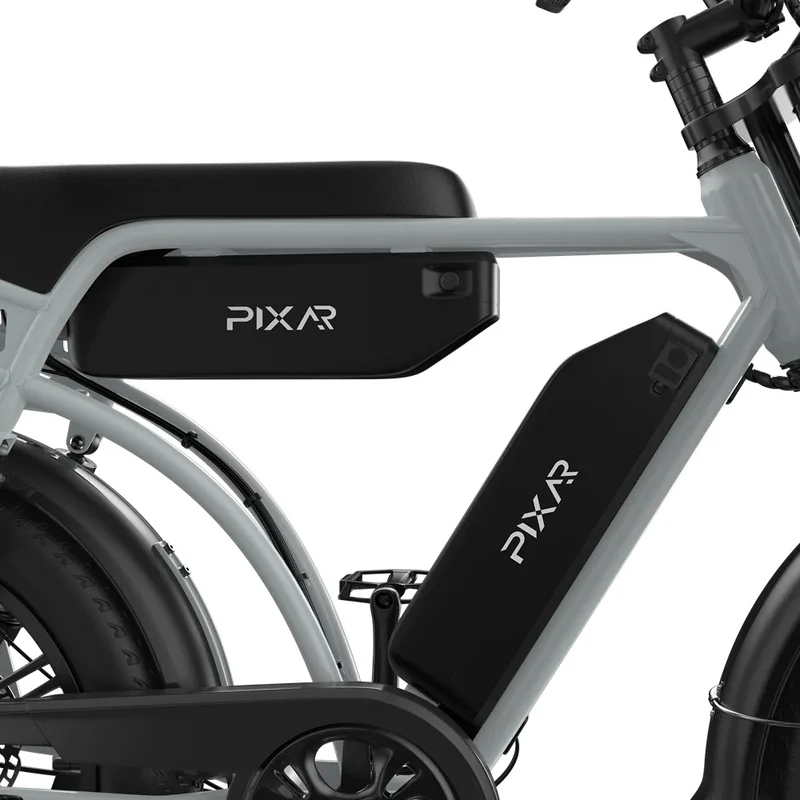

Dual Battery
Greater Range

2 × 48V 17.5Ah Samsung 21700 battery offers 6% higher energy density than 18650 cells for extended range. Quick-release design for easy access, IPX6 waterproof for all-weather reliability.

240kmMax Range IPX6Waterproof

NFC
Unlocking Mode

Say goodbye to traditional keys. The M9 comes with NFC Unlocking Mode—a simple tap is all it takes to power up your ride instantly.

0.5sUnlock Time 99.9%Success Rate

Intelligent
Burglar Alarm

Equipped with a smart anti-theft system. The moment someone tries to move or tamper with your bike, a powerful 100dB alarm sounds instantly.

0.5sResponse Time 100 dBAlarm Volume

Left/Right
Turn Signals

Bright, visible indicators built into the frame. With a simple press, you can clearly show drivers and pedestrians your direction for ultimate safety.

50 lmBrightness 150 mVisible Range

Type-C
Fast Charging

Stay connected on the go. The M9 features a Type-C charging port and a built-in phone mount, supporting both iOS and Android models.

12WOutput Power iOS/AndroidSupported

PIXAR M9 Electronic Control Cofiguration

[/DESCRIPTION][SPECIFICATIONS]

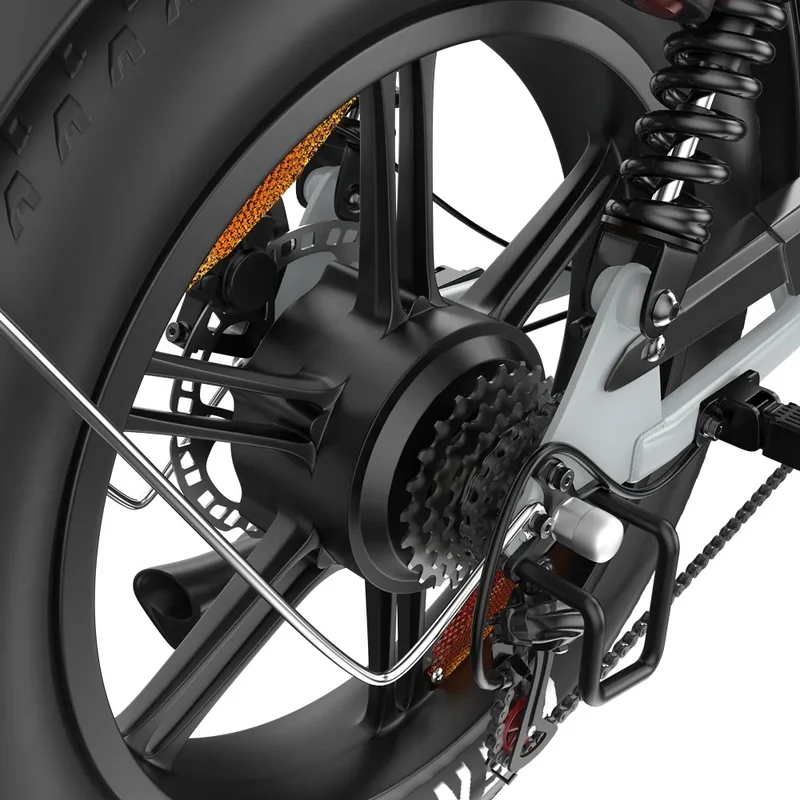

• Motor: 250W Peak Rear Hub Brushless Motor.
• Sensors: Speed Sensor.
• Freewheel: Shimano 7-Speed Indexing, 14-28T.
• Rear Derailleur: Shimano 14-28T.
• Crankset: 180mm Crank Arms, 48t Chainring.
• PAS Levels: 0-5 PAS.
• Throttle: Half-Twist Throttle / Optional Thumb Throttle.
• Maximum Output: 54.6V2A With Temperature Control Protection.
• Charger: 2A Smart Charger, CE Certified.

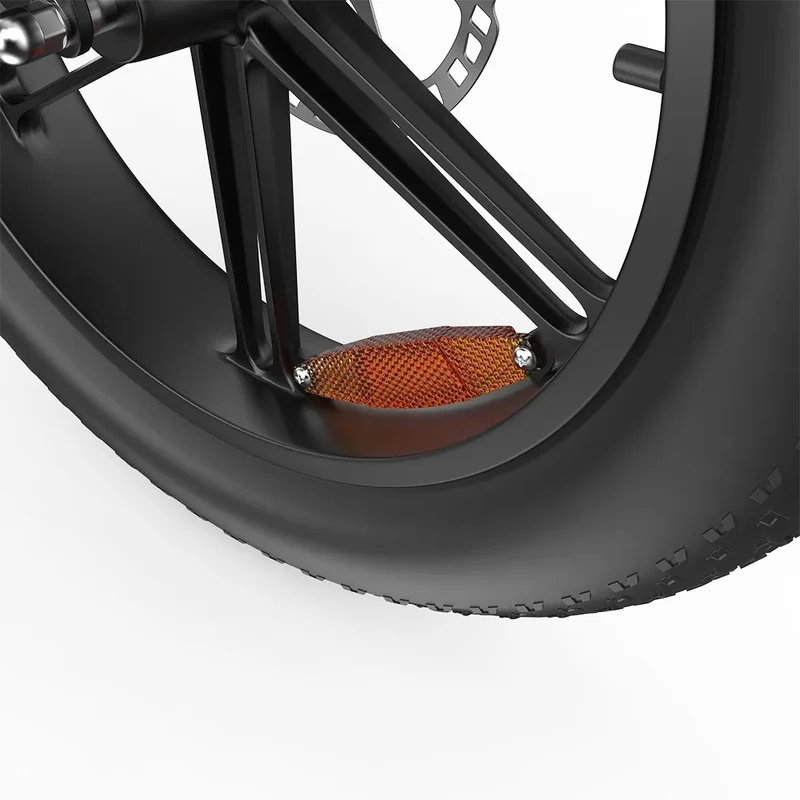

• Rim: Alloy 20" × 4" × 13G × 36H.
• Spokes: 45# 12g × 212mm, Compliant With EN15194 Standard.

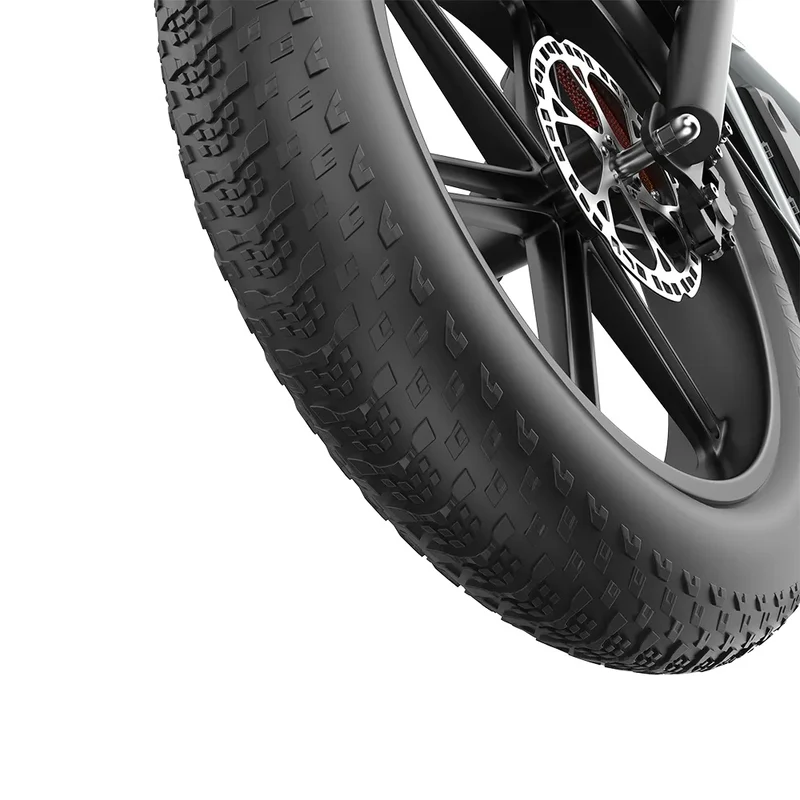

• Tire Brand: KENDA Tire.
• Tire Size: 20" × 4", 45psi.
• Inner Tube: 20" × 4", Valve Stem 35mm.
• Brake Levers: Aluminum Material (With Brake Priority Protection).

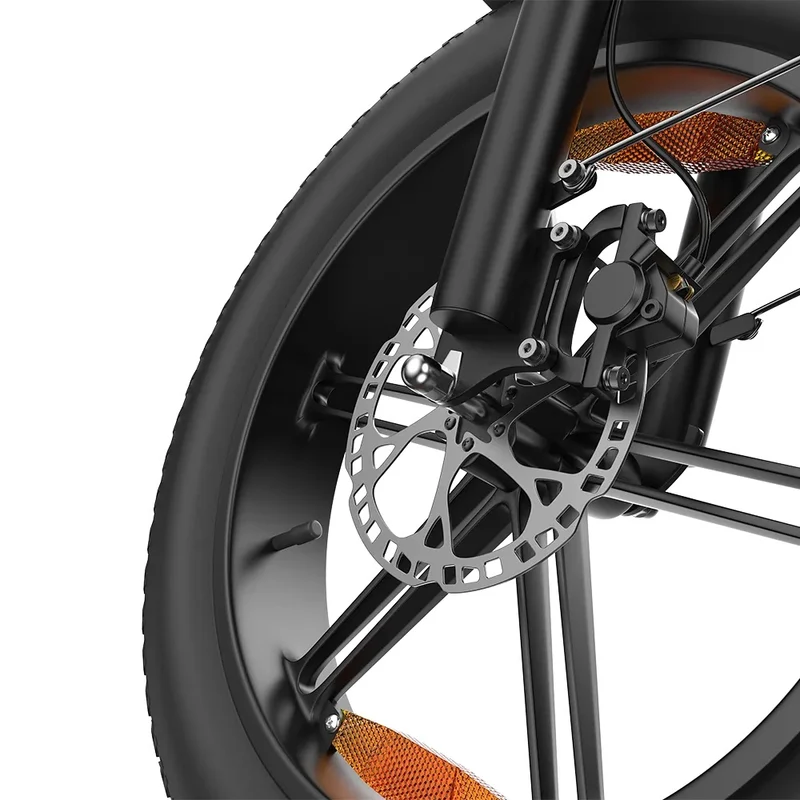

• Brakes: Front And Rear Hydraulic Disc Brakes.
• Brake Rotors: 180mm.
• Kickstand: Heavy-Duty Aluminum Kickstand.

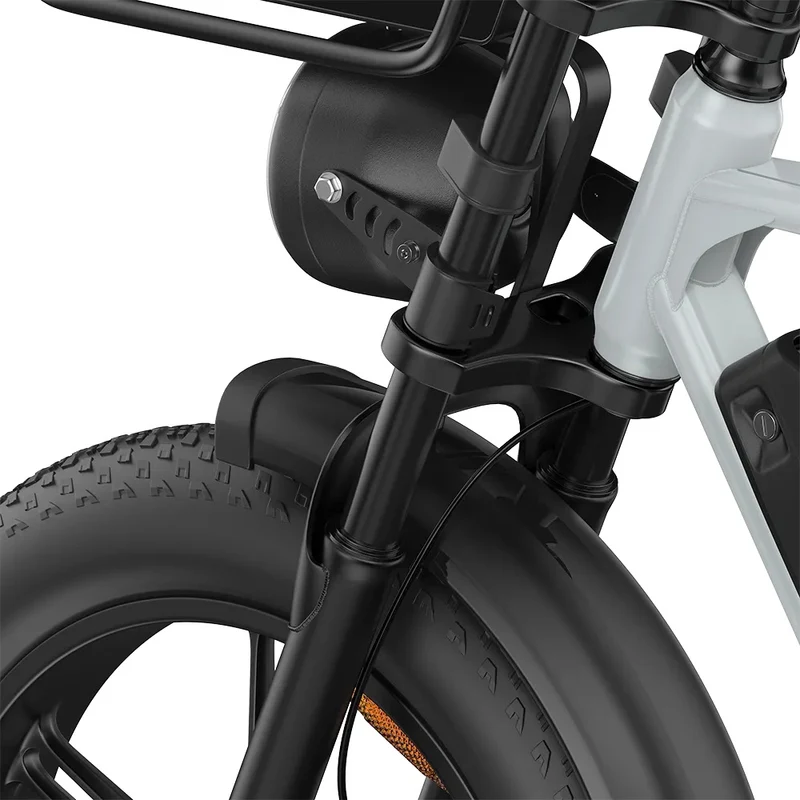

• Front Suspension: Aluminum Adjustable Shock Absorbers.
• Front Suspension Travel: Total Length 630mm, Travel 100mm.

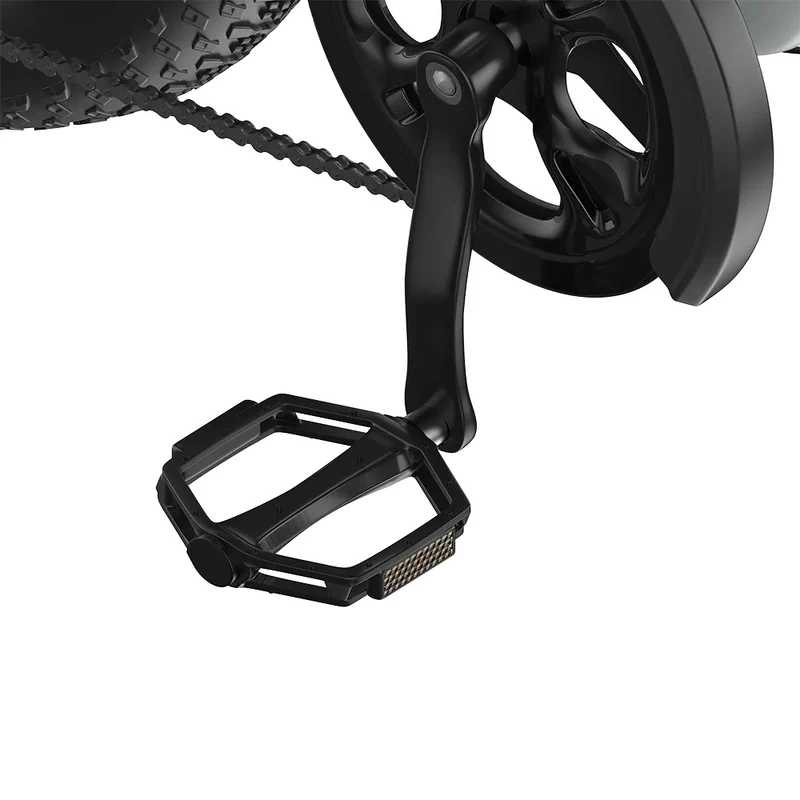

• Pedals: 10×9(cm), With Reflectors.
• Chain: 1/2" × 3/32" × 118L, 21-Speed Indexing.
• Pedal Assist Range: 240+ km
• Electric-Only Range: 100 km
• Top Speed: 25 km/h
• Dimensions: 170 × 68 × 113 (cm)
• Max Load Capacity: 350 kg
• Ebike Net Weight: 49.5 kg
• Torque: 60 N.m
• Battery: Samsung 2 × 48V 17.5Ah IPX6 Waterproof, CE Certified
• Battery Charging Time: 2 × 5 hours
• Battery Weight: 2 × 5.5 kg
