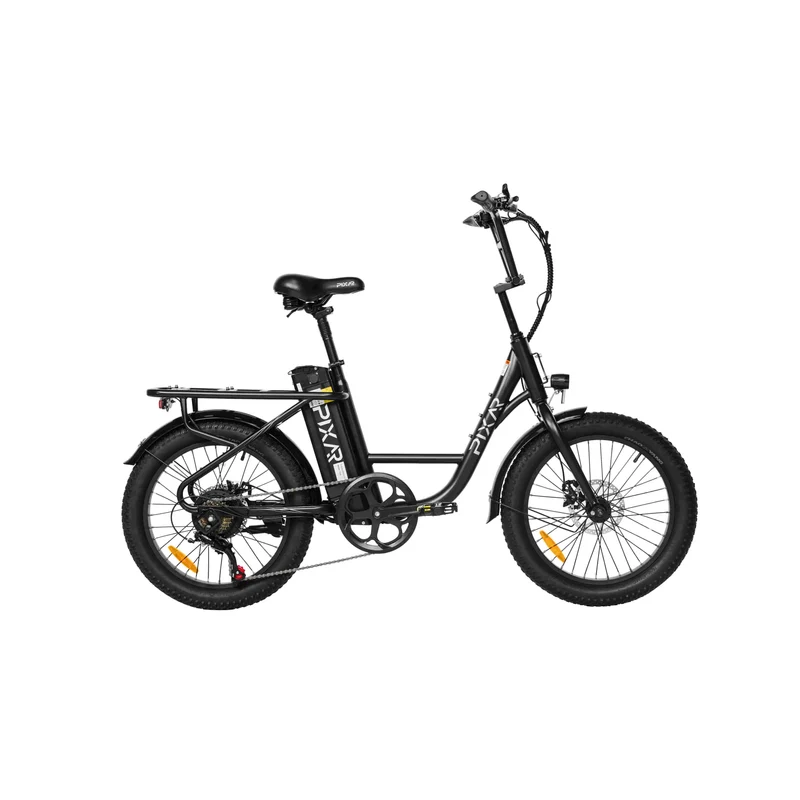

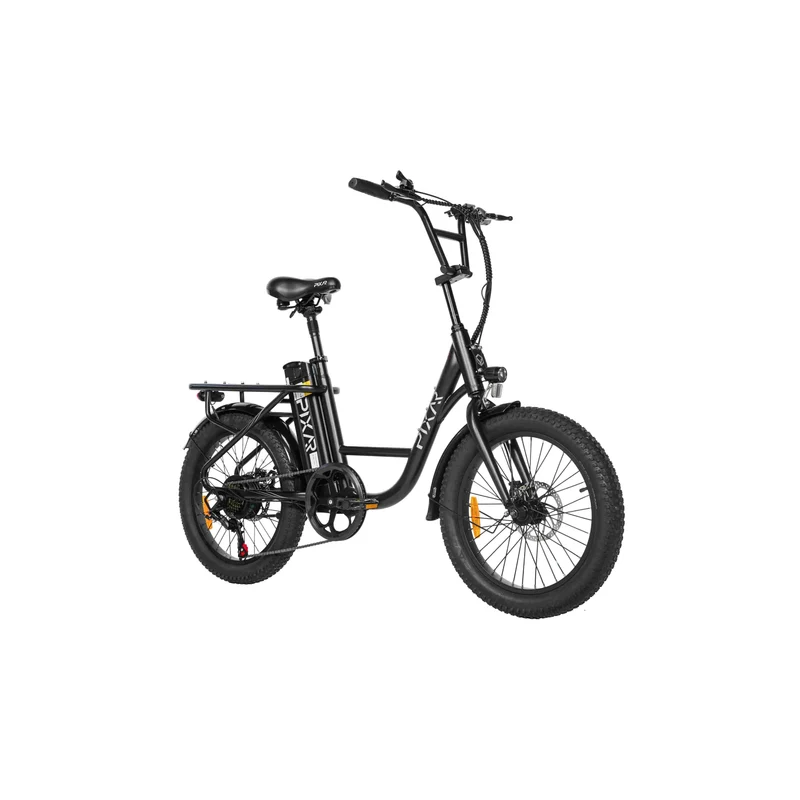

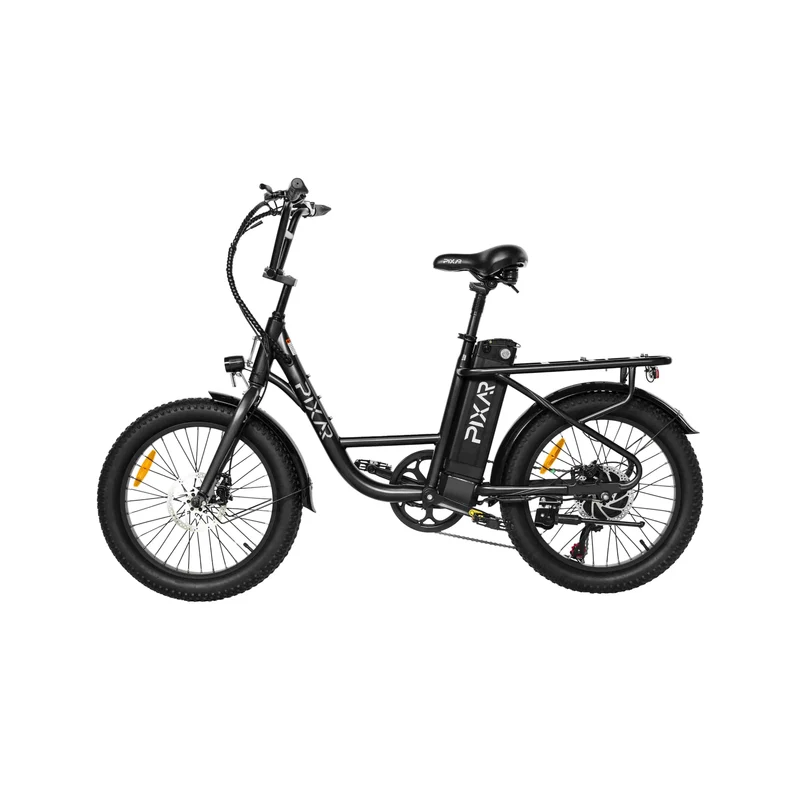

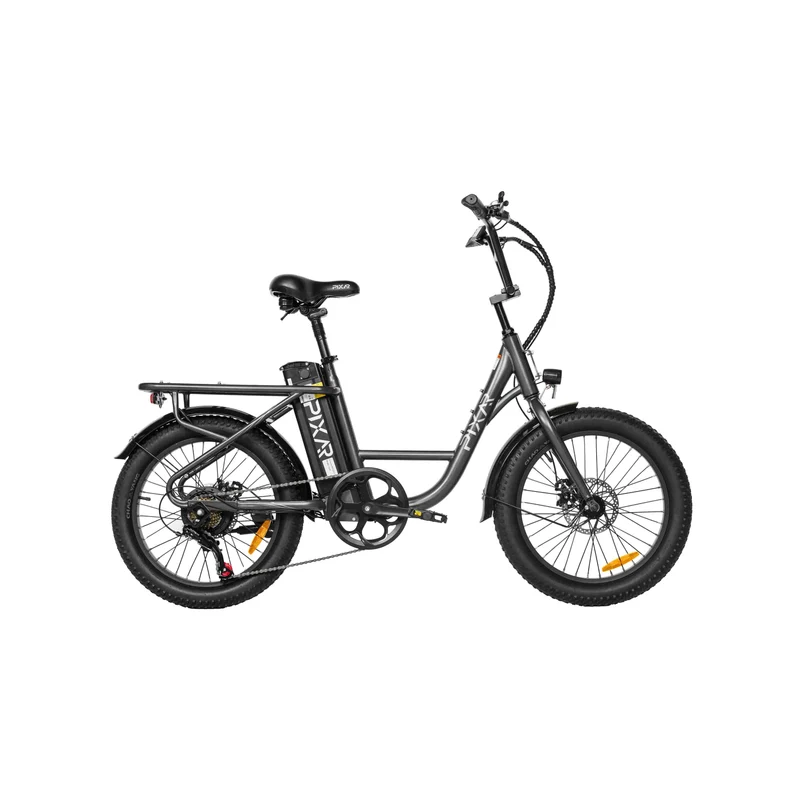

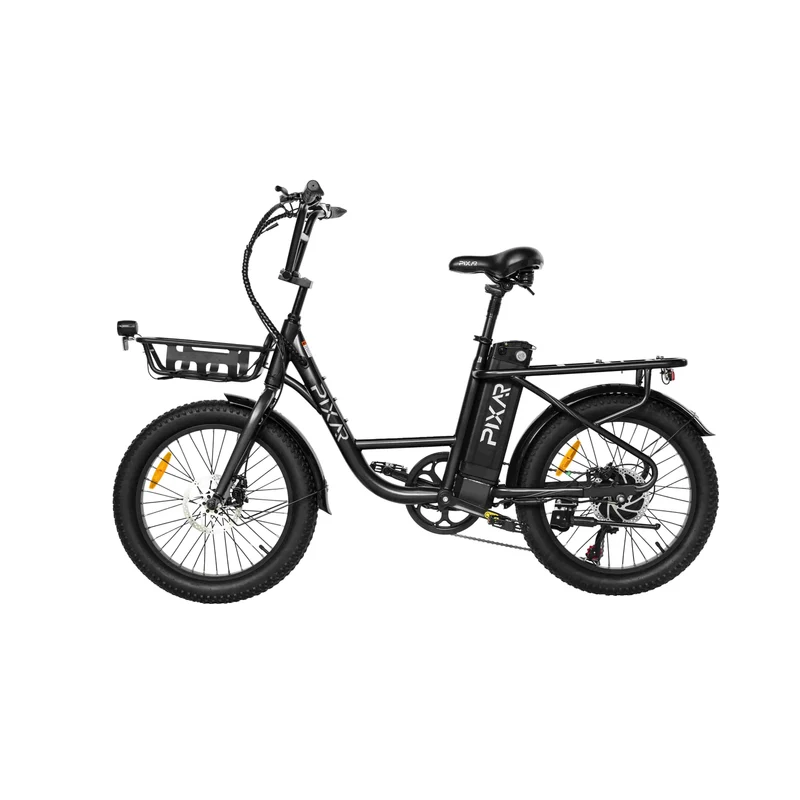

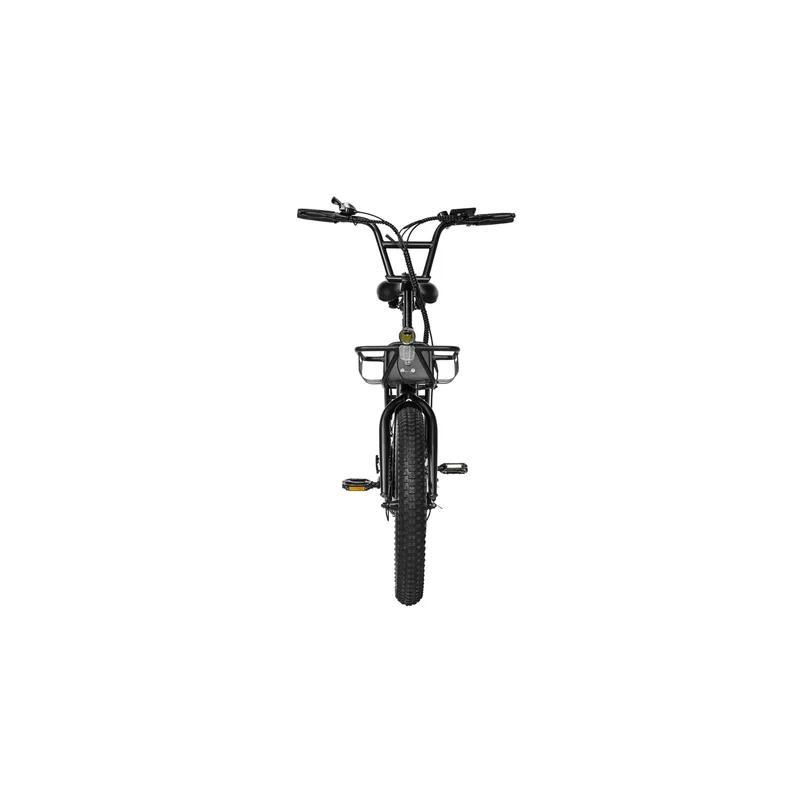

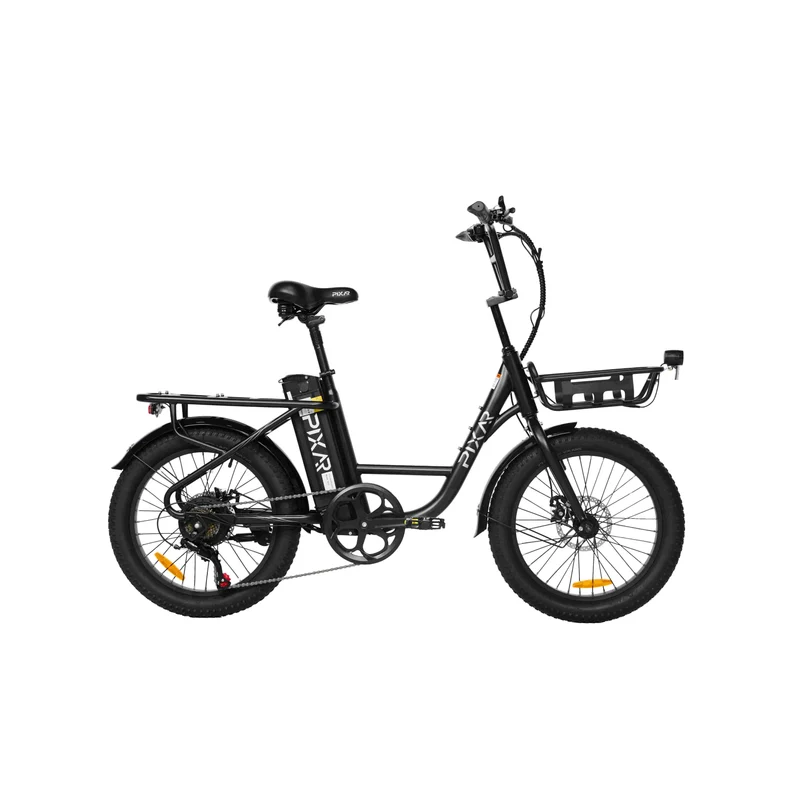

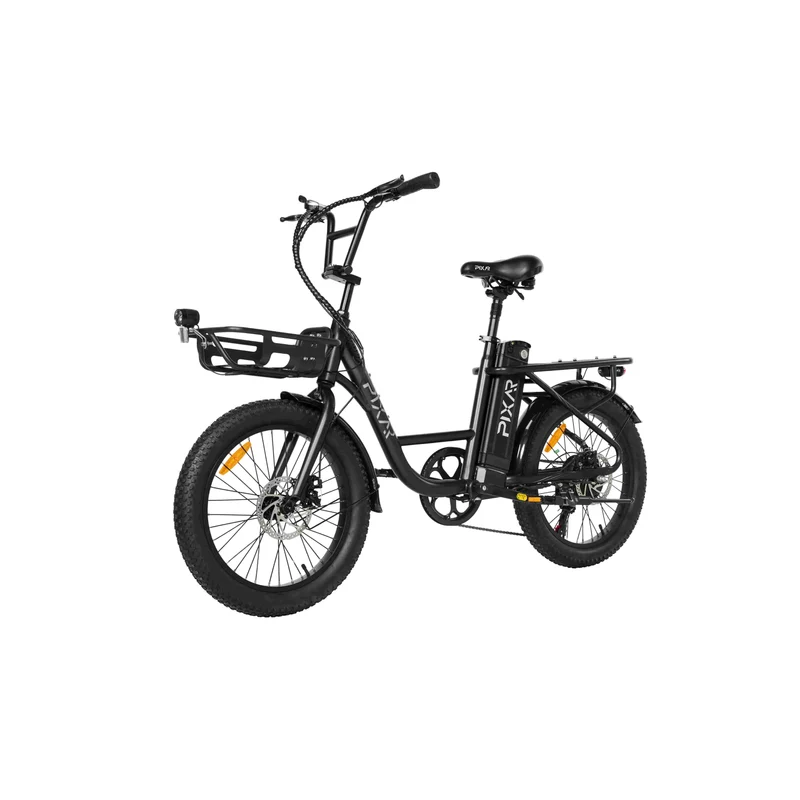

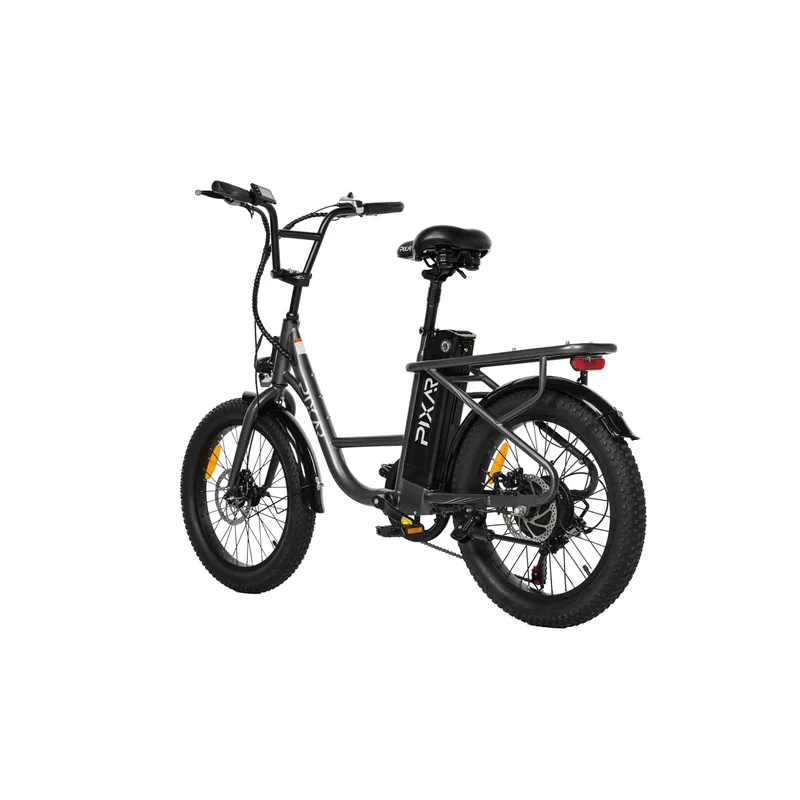

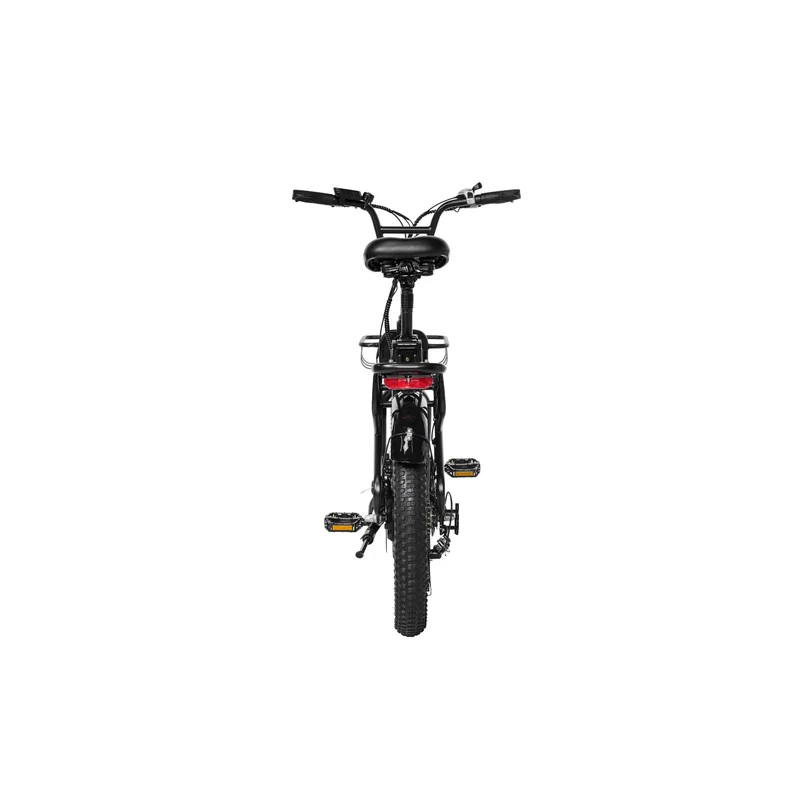

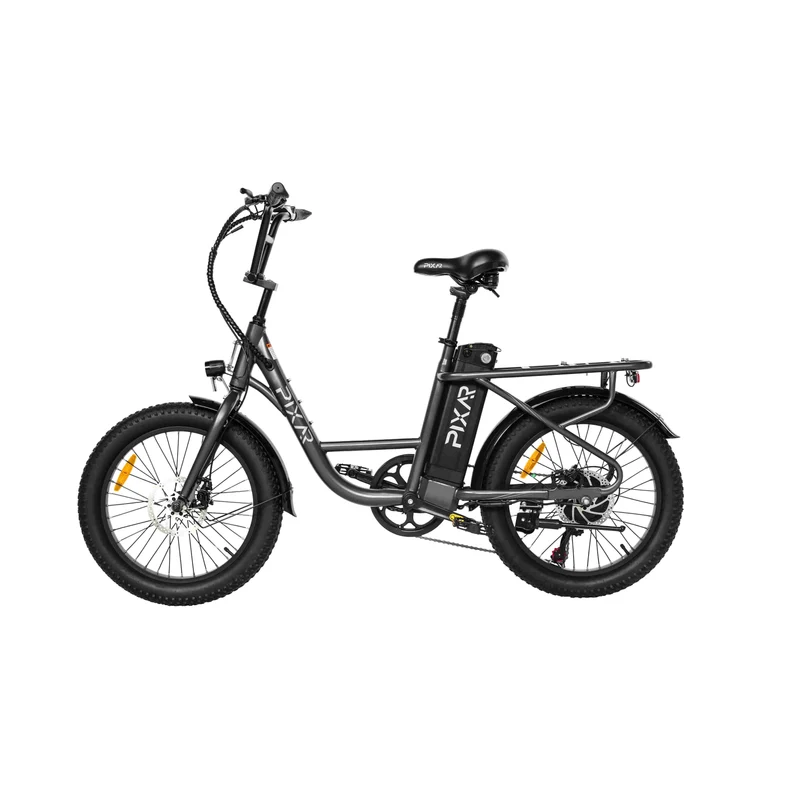

PIXAR FUN1 20" City Electric Bike 250W Motor 36V 10.4AH Battery

[DESCRIPTION]

[/DESCRIPTION][SPECIFICATIONS]

General

• Brand:PIXAR
• Model:FUN1
• Type:Fat-tire Electric Bike

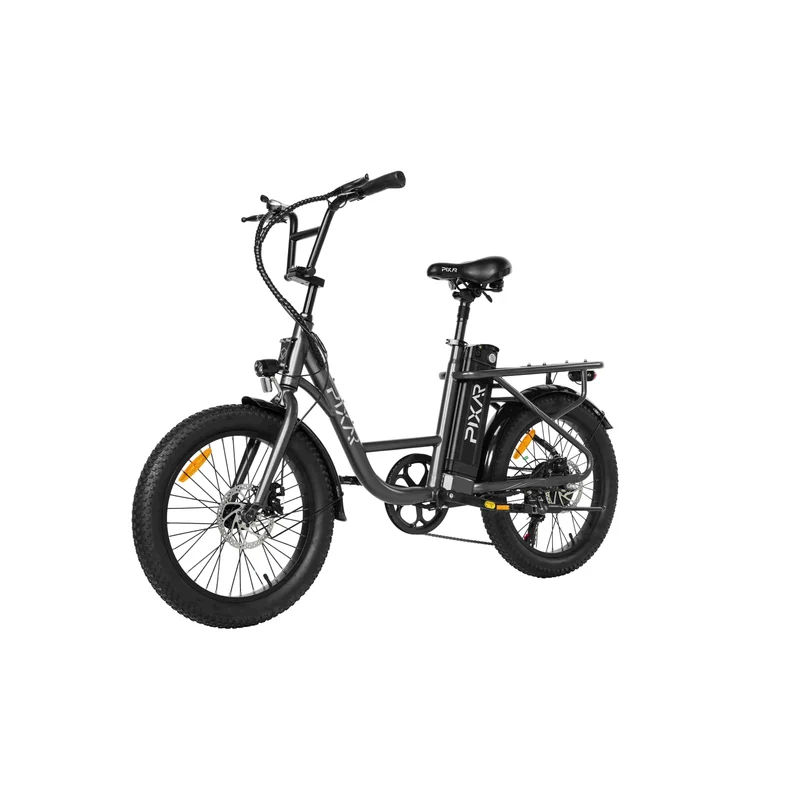

• Color:Black,Grey

Specifications

• Motor: 36V*350W Peak Brushless hub motor (show 250W in motor logo)

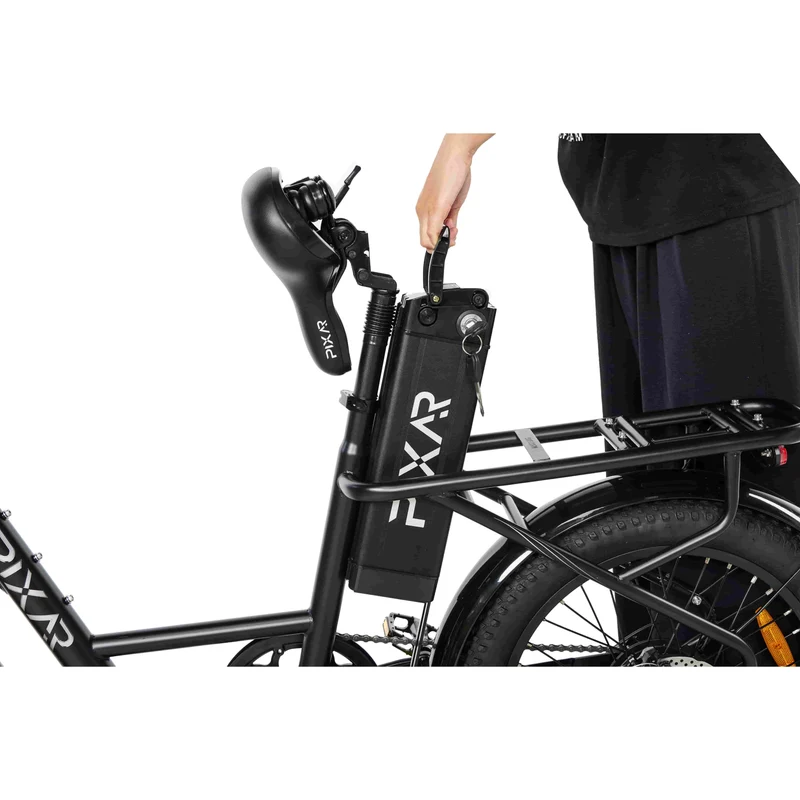

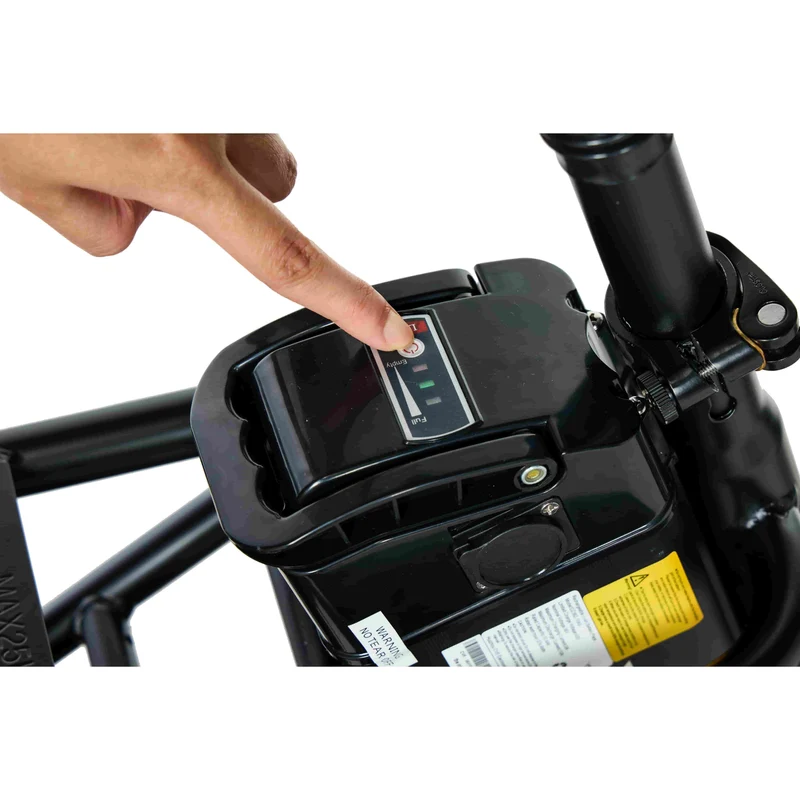

• Battery: 36V*10.4AH
• Frame: Steel

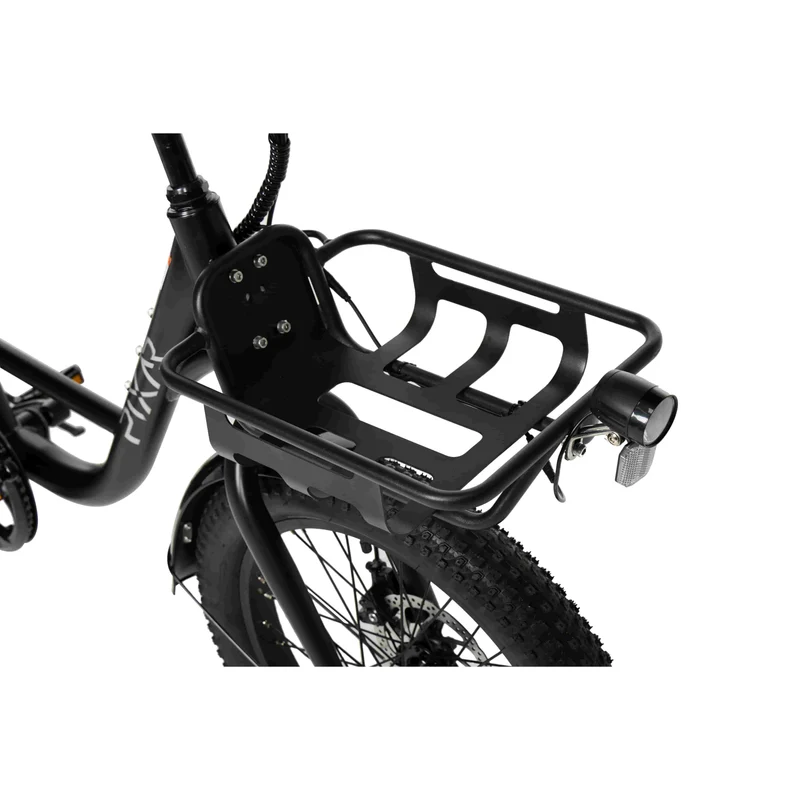

• Frame Basket Mounting: The frame head tube have mounting hole match as GALAXY basket
• Capacity Of A Single Battery Cell: EVE2600MAH* 40pc
• Battery Cell Brand: EVE
• Mileage: 60KM for 36V*10AH
• Controler: 36V controller (JINGHUI BRAND)

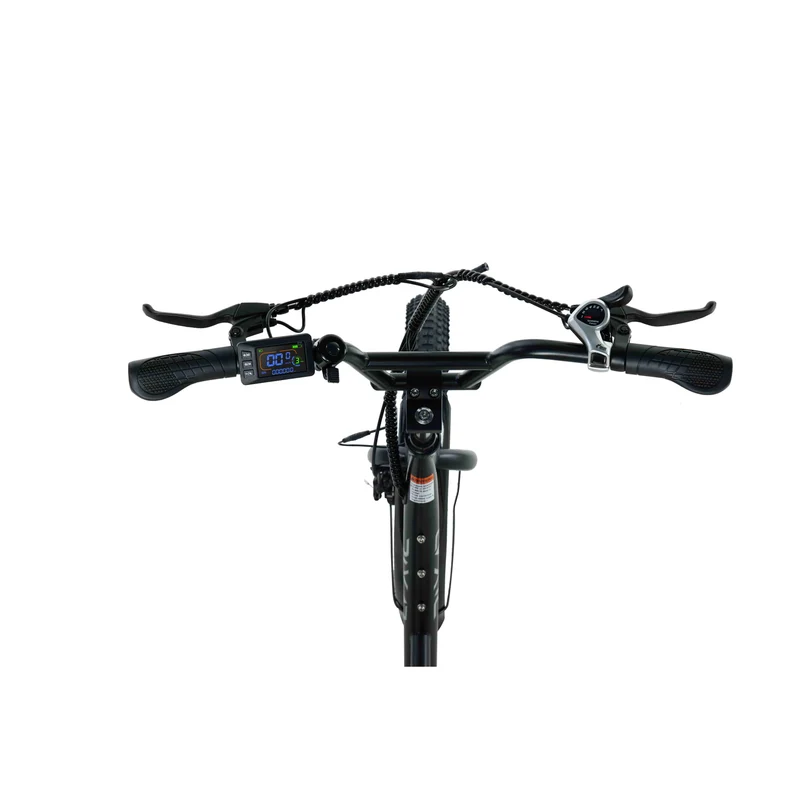

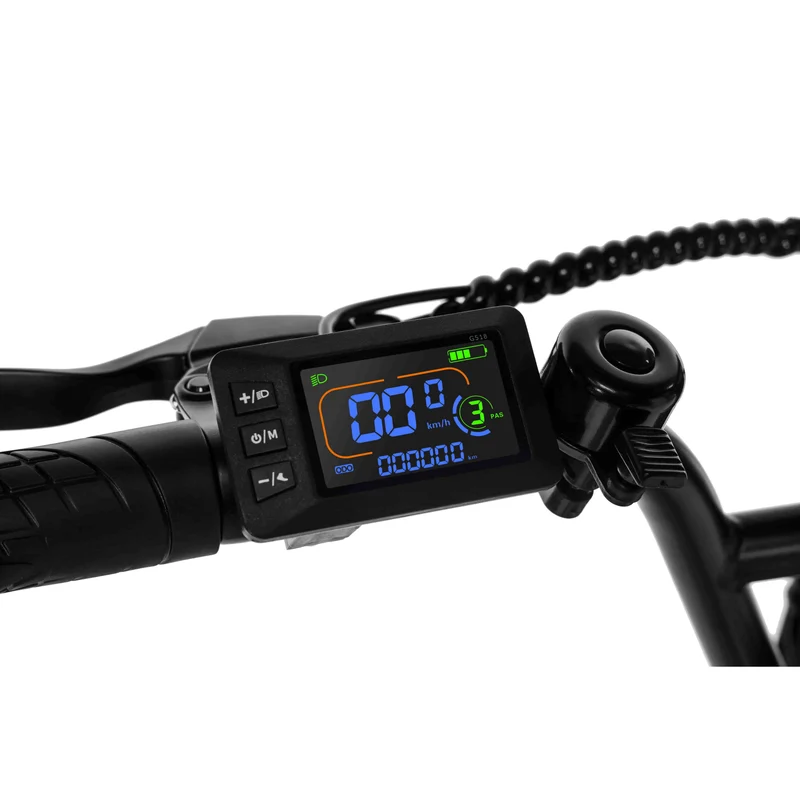

• Display: Left display (Electric Mode, PAS Mode, Pedal Mode,TYPE-C)
• Charger: 42V 2A charger
• Range Throttle Only: 30km for 10AH
• Range Pedal Assist: 60km for 10AH
• Max Speed: 25KMH(can unlock to 32KM/H)
• Stem: Alloy and Steel stem as picture
• Shifter: Shimano Thumb Shifter 7 Speed (TX50)
• Brake Pads: MECHANICAL DISC BRAKE (FILAIR BRAND),
• Brake Lever (EU Law): Left brake level control rear wheel and right brake level control front wheel.
• Tire Brand: CHAOYANG

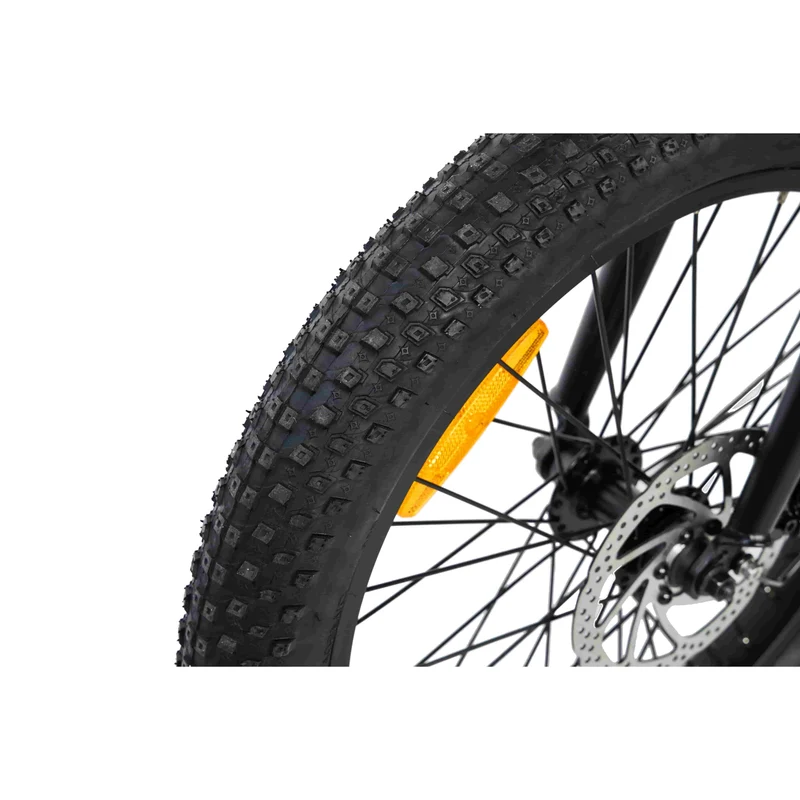

• Tire Size: 20"x3.0 fat tire
• Pedal: Plastic With Reflectors
• Chain: Normal chain

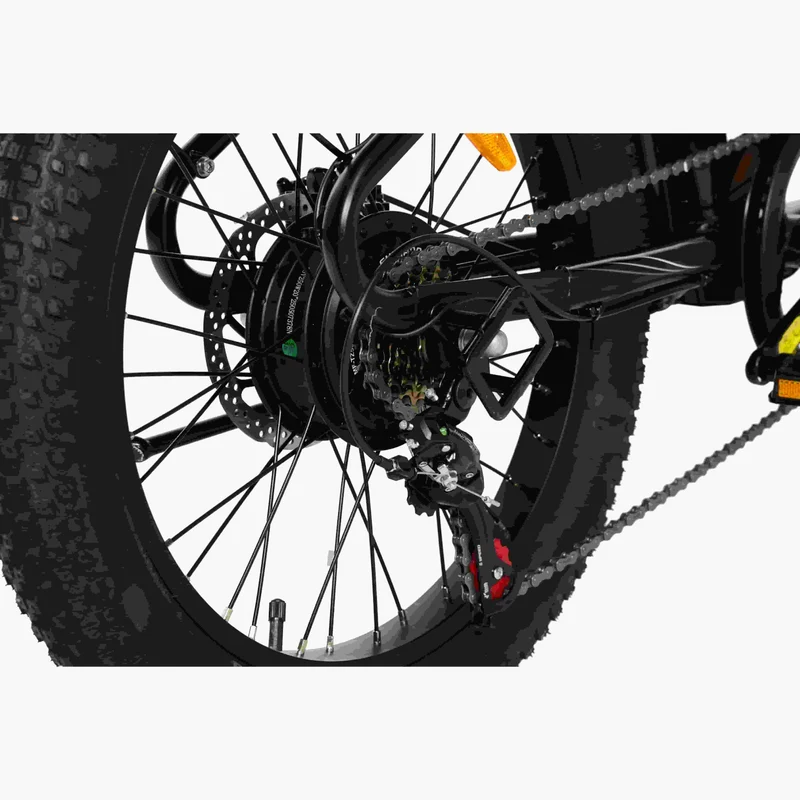

• The Rear Derailleur: Have the derailleur protector /ATA brand freewheel + rear derailleur model is TZ5
• Screws: All screws must be rust resistant
• Crank Set: 52T*170MM
• Disconnect: Comes connected

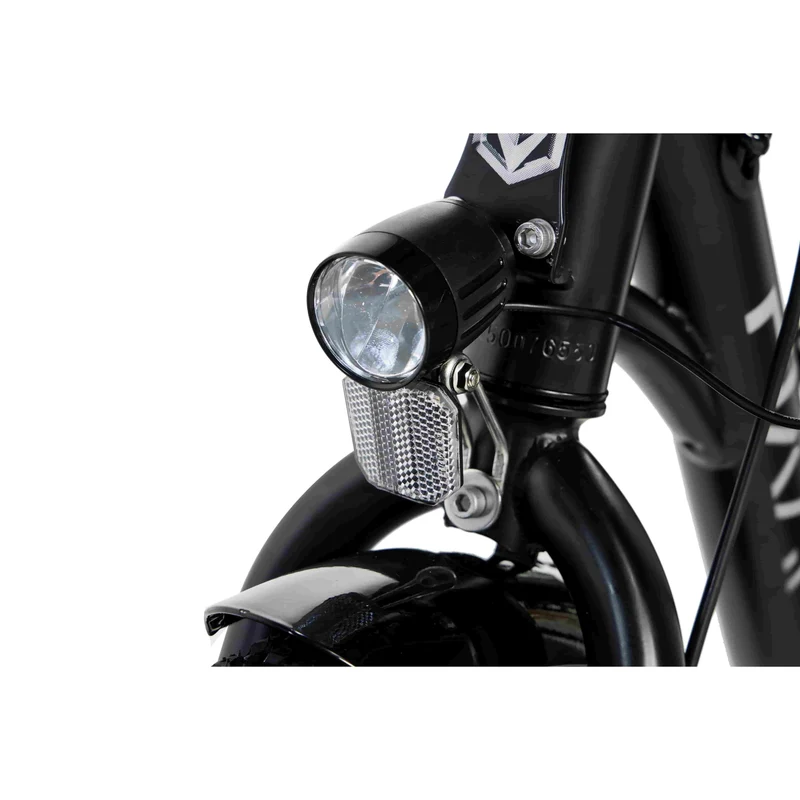

• Front Light: Front light with waterproof disconnect
• Back Light: Front light with waterproof disconnect
• Fenders: PVC plastic front and rear fenders (mat black color)

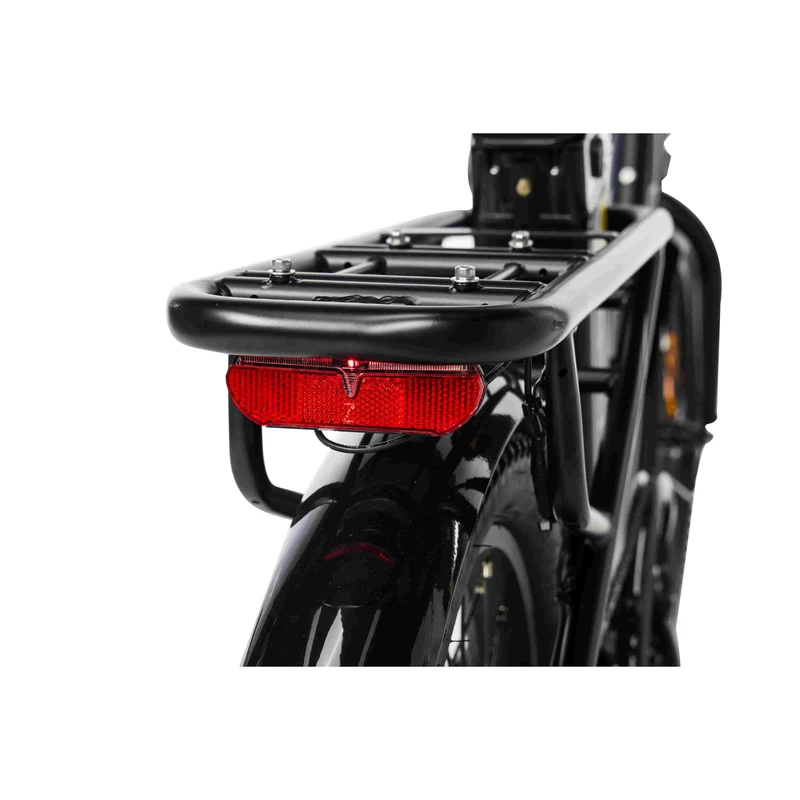

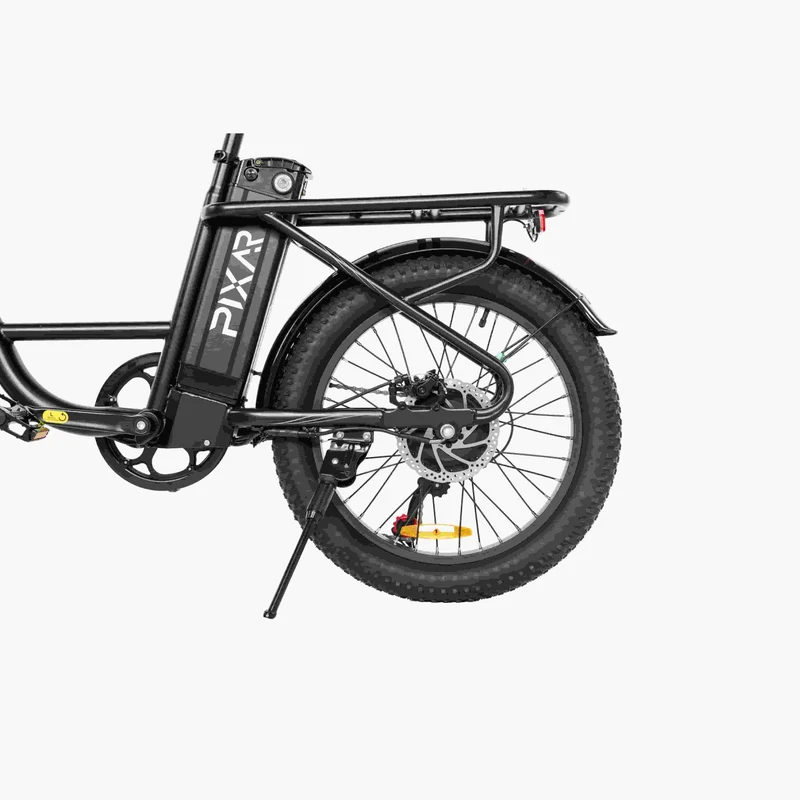

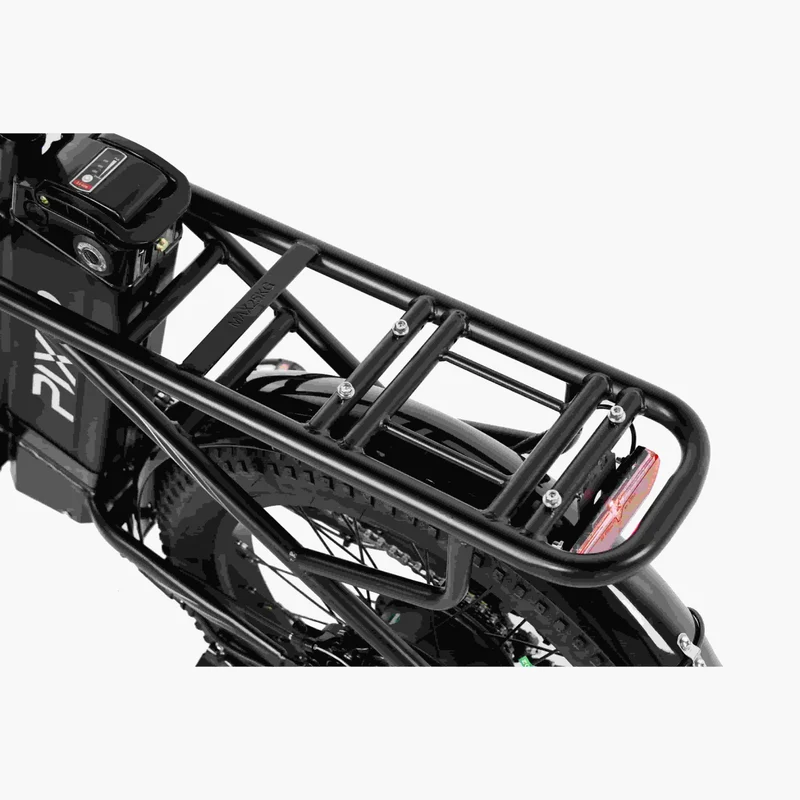

• Racks: Strong steel rack

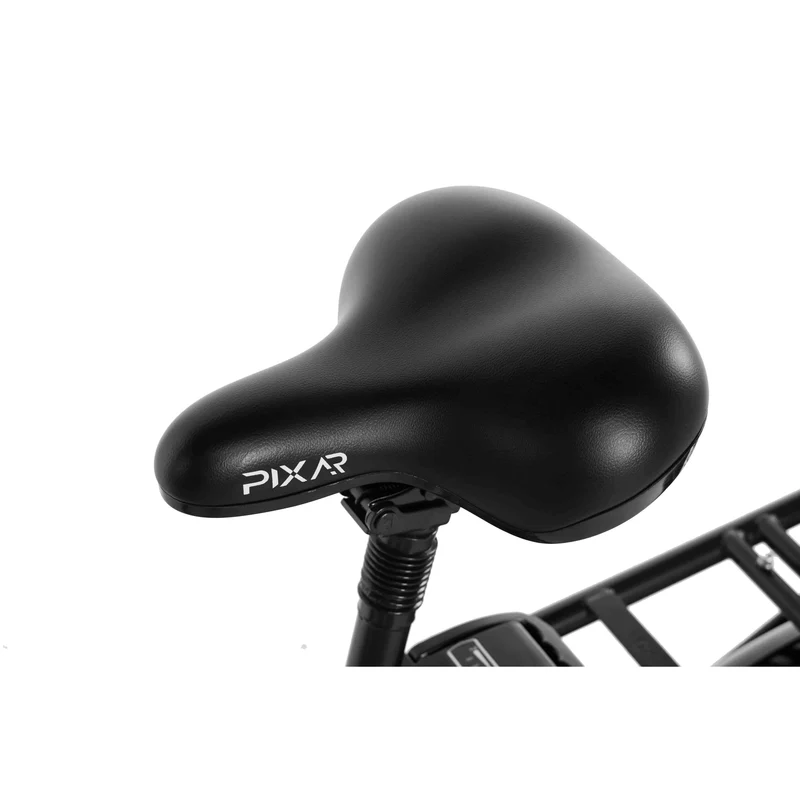

• Seat: Comfortable seat
• Fork: (steel stanchion with Aluminum crown )with lockout
• Brake Pads Shape: Square shape
• Charging Time: 5.2 h
• Kickstand: Steel kick stand
• Bell: Please provide ebike user manual PDF file
• Tools: The tools
• Throttle: With waterproof disconnect
• Bike Weight: Net weight: 37.5kg, the gross weight: 48.2kg
• Capacity Load: 150KG
• Sensor: Speed sensor,12gears
• Pas:5 Modes

Package Contents

• Battery x1
• User Manual x1
• Pedals x2
• Front Wheel x1
• Seat x1
• Toolkit x1
• Keys x2
• Charger x1

[/SPECIFICATIONS][MANUAL]

• User Manual
• PIXAR-Fun-BS EN 15194 certificate
• PIXAR-Fun-BS EN 15194 report-UKCA

Video:?PIXAR Fun1 E-Bike Unboxing & First Look | On-Screen Text Details

Video:?PIXAR Plus7 E-Bike Speed Unlocking Tutorial

Video: How to Install the Basket on the PIXAR Fun1 E-Bike | Text Guide?
