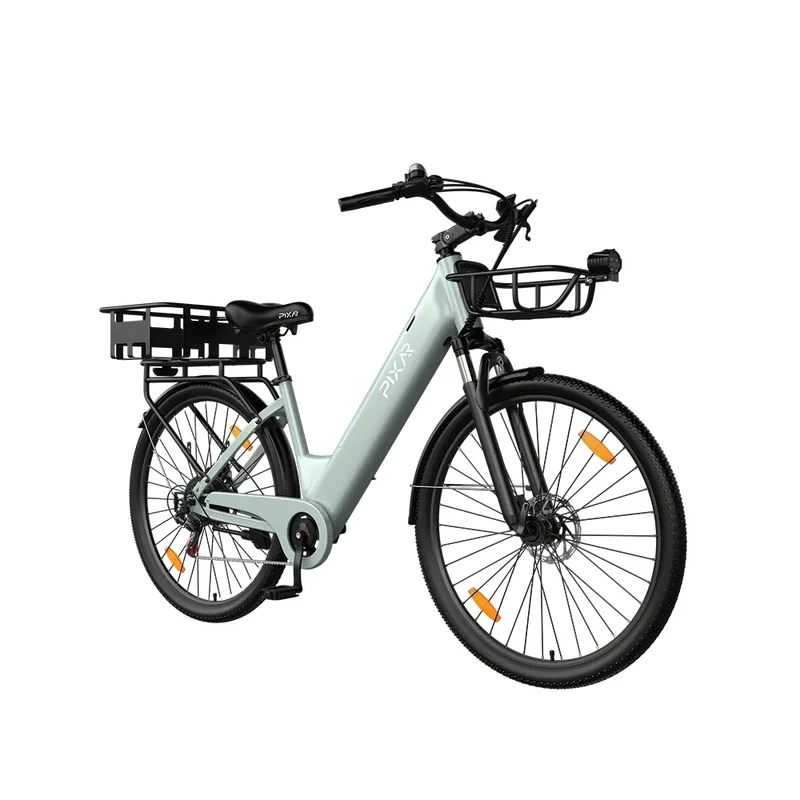

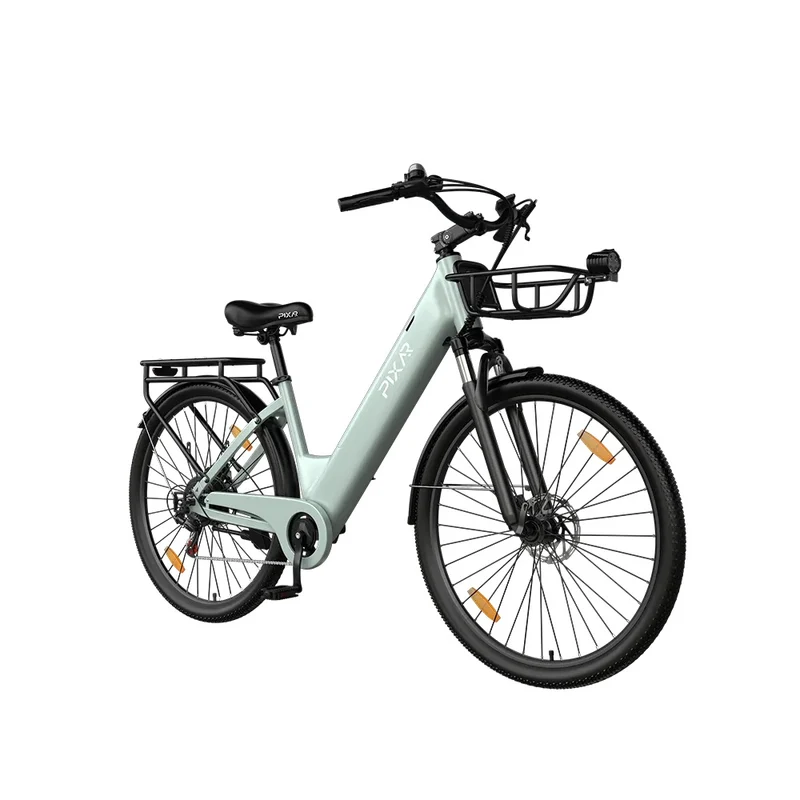

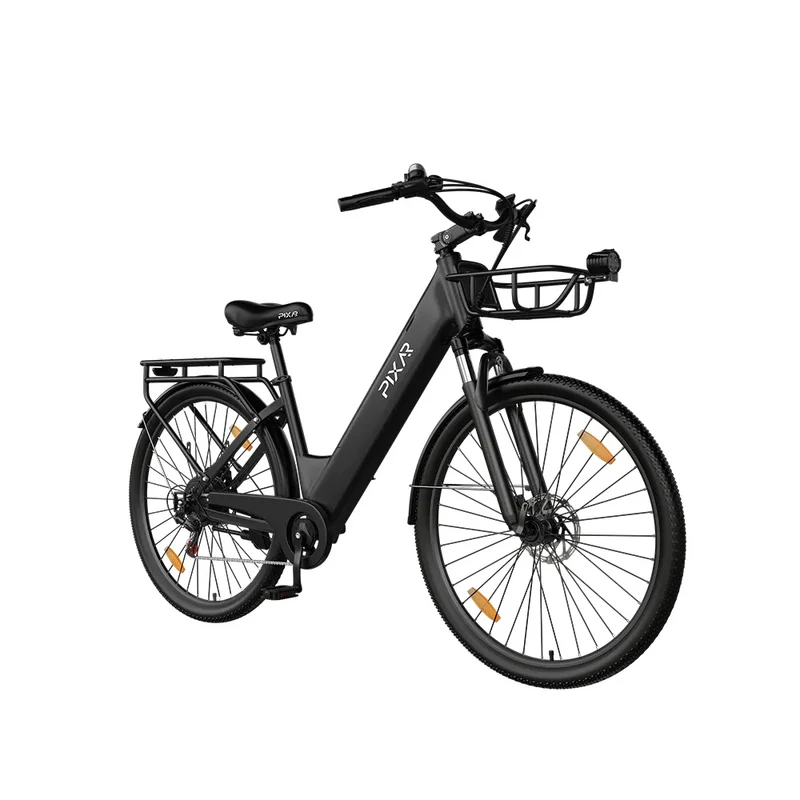

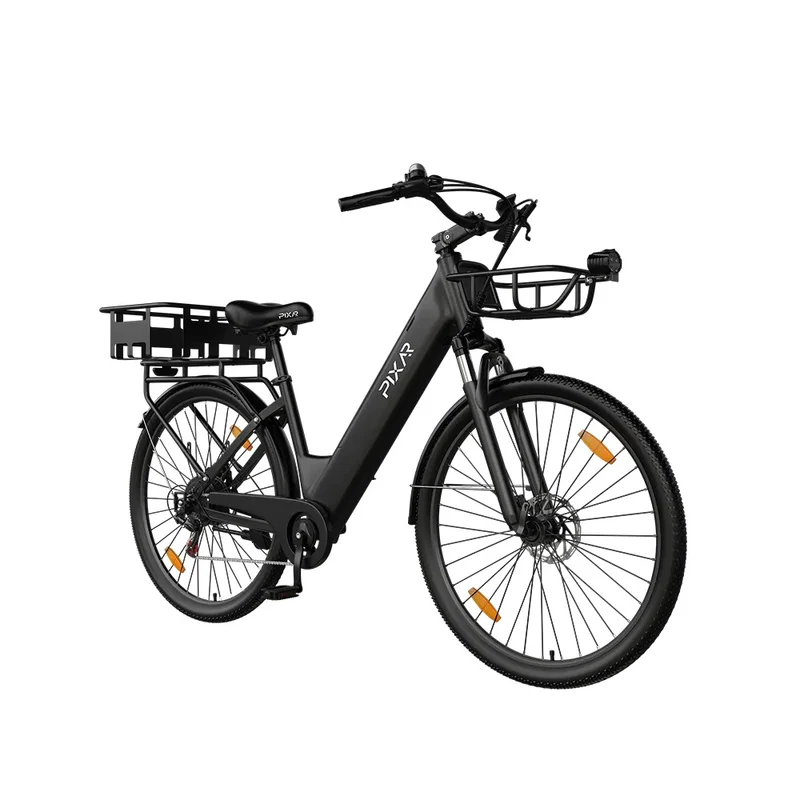

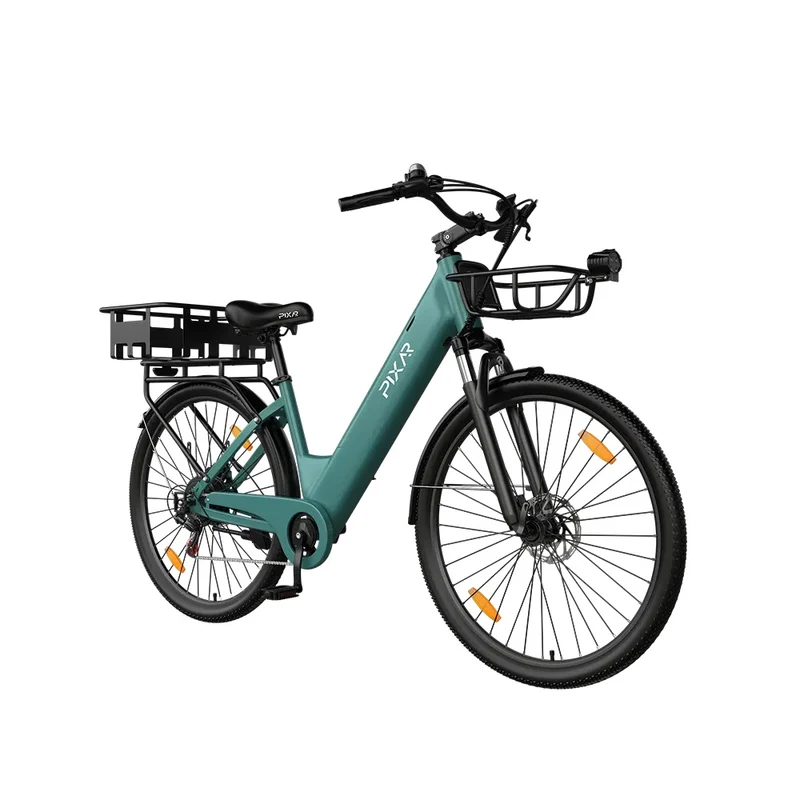

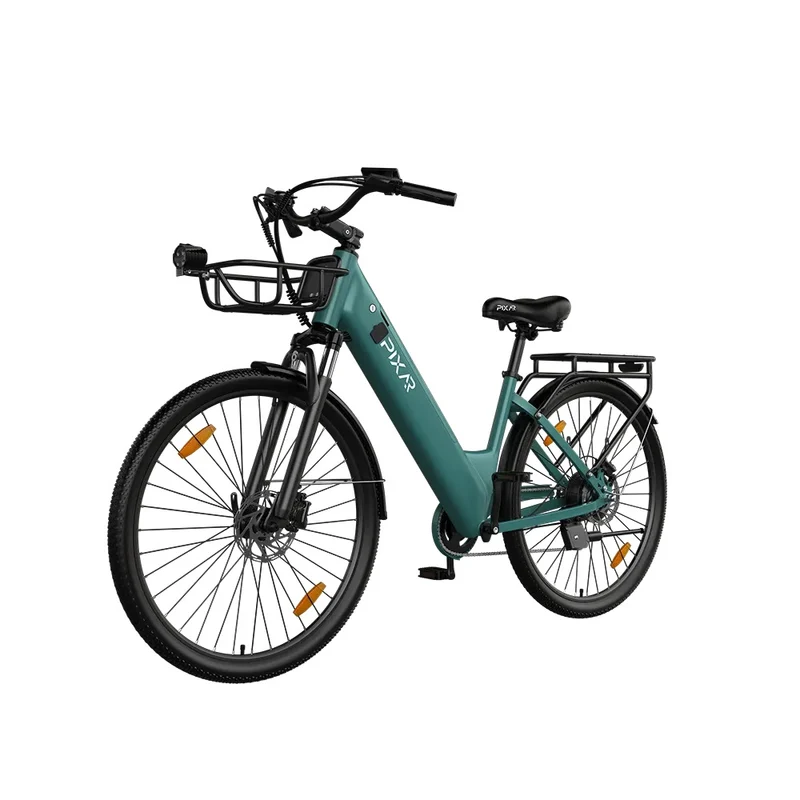

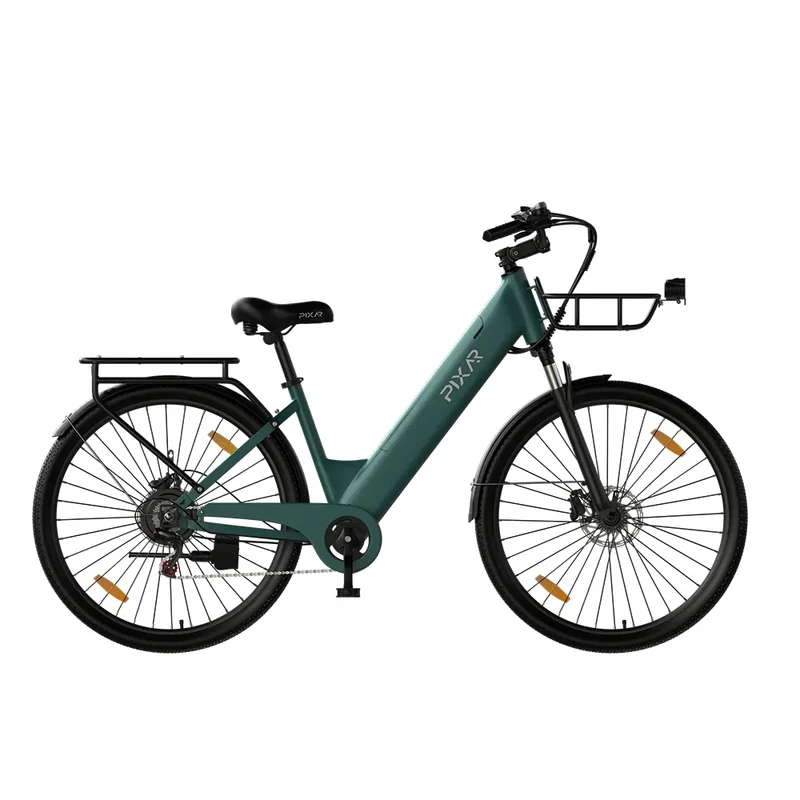

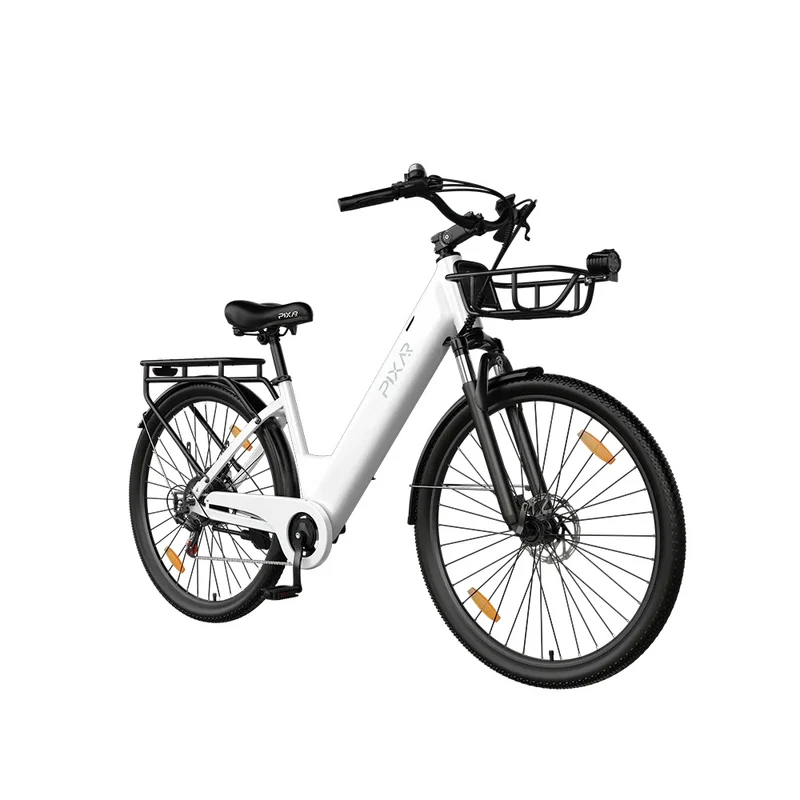

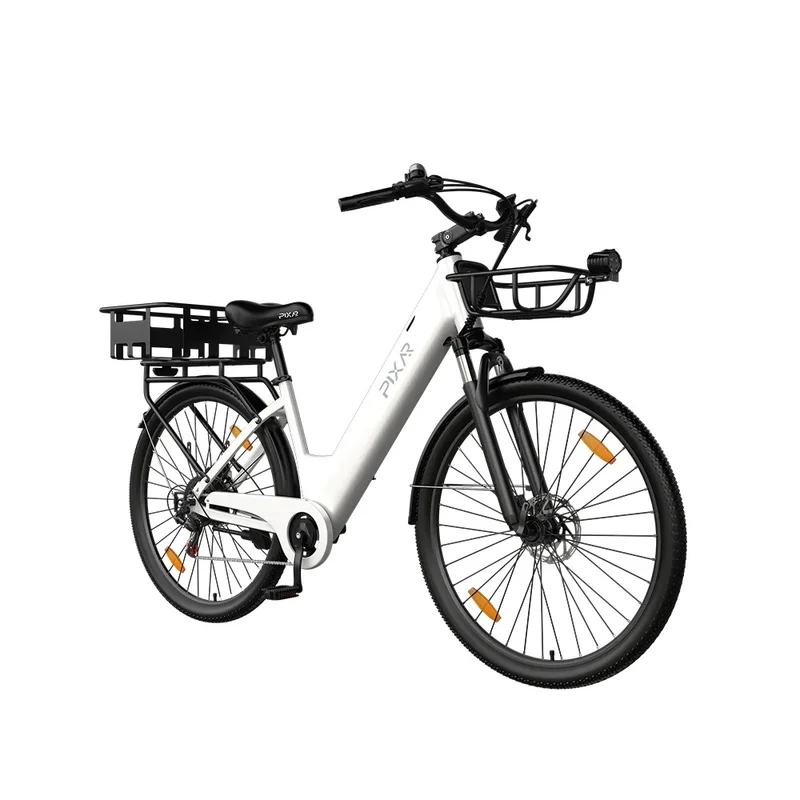

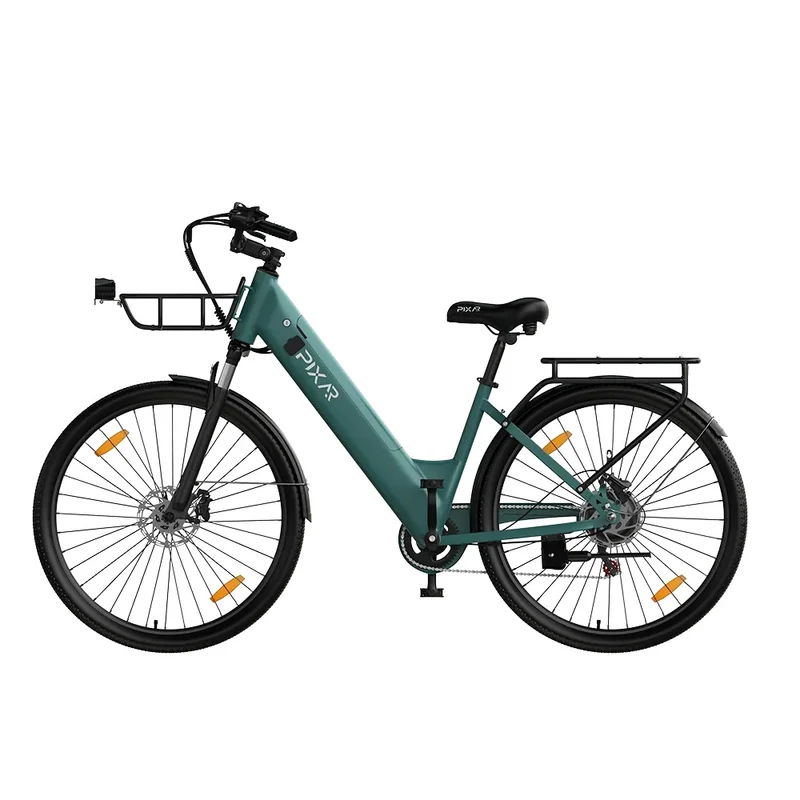

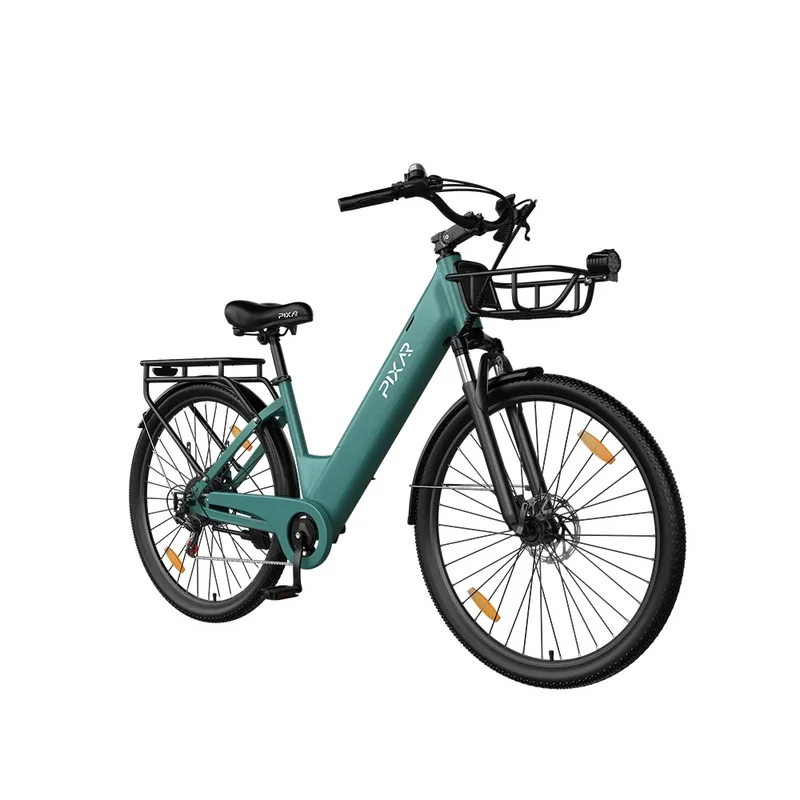

PIXAR C1 PRO 28" Electric Bike 250W Motor 36V 13Ah Battery

[DESCRIPTION]

Experience the elite fusion of vintage aesthetics and superior endurance with the PIXAR C1 PRO Electric Bike. Engineered for professional urban performance, the C1 PRO features a high-capacity Samsung 13Ah battery system and a reinforced high-strength frame supporting a 250kg load capacity, making it the most reliable partner for your daily city journeys.

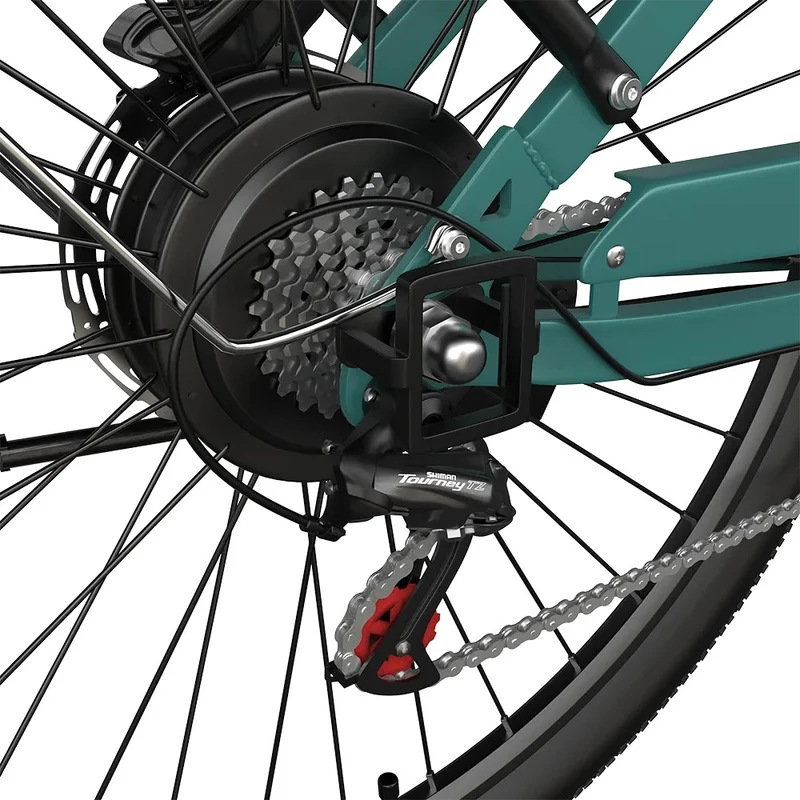

⚡ Peak Hub Power: BAFANG 250W Motor

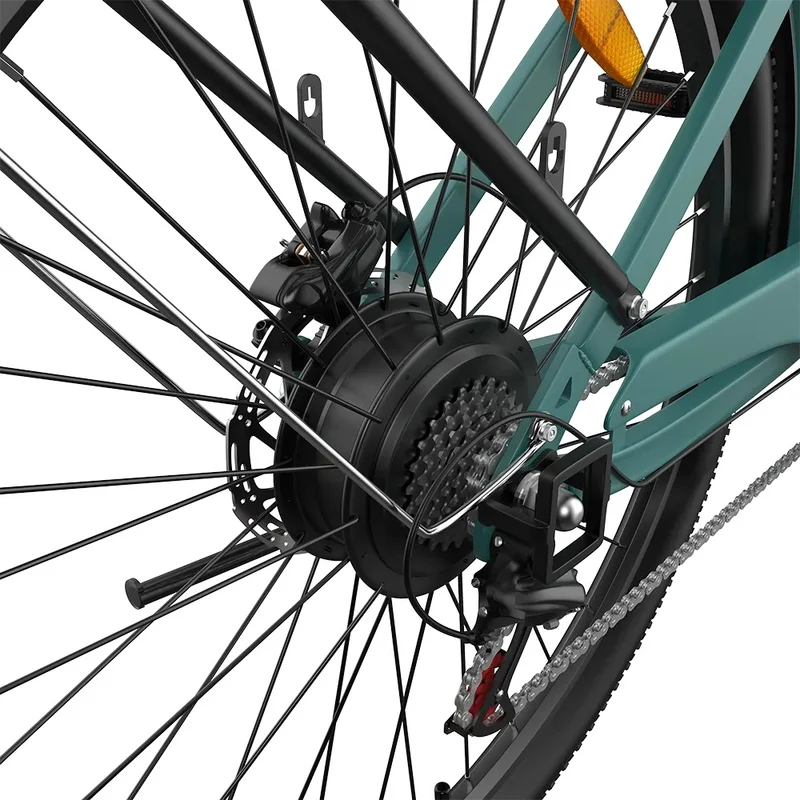

Efficient and steady: The PIXAR C1 PRO is equipped with a high-performance BAFANG 250W motor featuring a Sinusoidal Wave Structure. Paired with an advanced 48V23A controller with temperature protection, it provides a safe, smooth, and smarter power delivery optimized for city streets.

• Maximum Torque: 45 N.m
• Maximum Speed: 25 km/h
• Ride Quality: 5-Level PAS for smooth, intuitive acceleration and low-noise operation.

🔋 Massive Range: Samsung 36V 13Ah Battery

Go further with confidence. The PRO version is powered by a high-capacity Samsung 13Ah 21700 battery, offering 6% higher energy density than standard cells. Experience a reliable 120+ km range under pedal assist, perfect for long-distance urban exploration.

• Total Range: 120+ km (PAS) / 58 km (Electric-Only).
• Quick-Charging: Fully charged within 4-5 hours.
• All-Weather Ready: IP65 waterproof rating and CE certified for safety.

💪 Heavy Duty: 250kg Max Load & Dutch Design

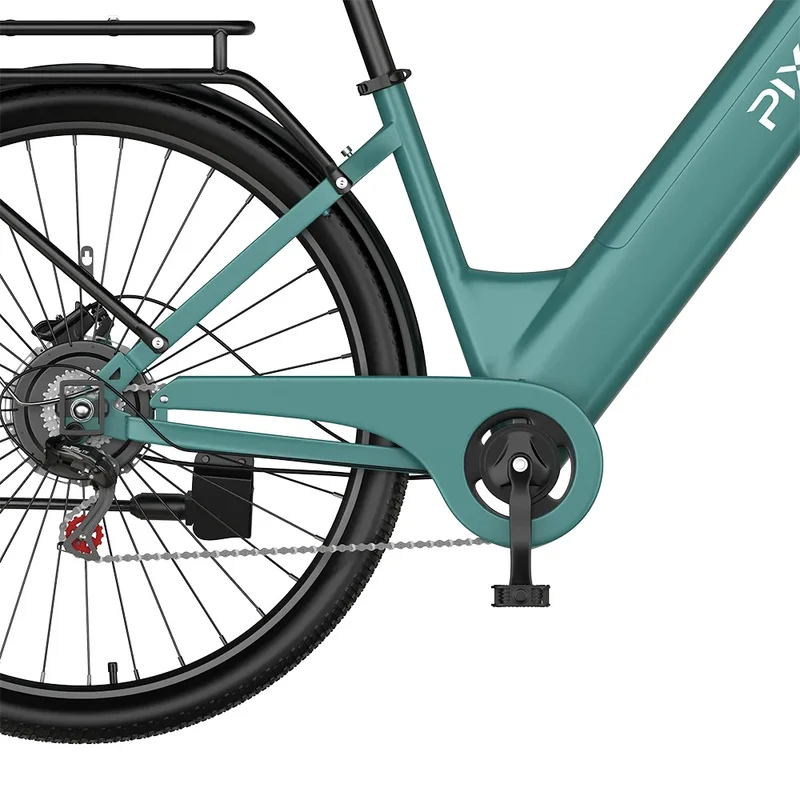

Designed for unrivaled stability and strength. The PIXAR C1 PRO utilizes a 1000 MPa high-strength alloy low-step frame, allowing for a 250kg maximum load—ideal for cargo, groceries, or heavy riders. The classic Dutch design is paired with a Full Enclosed Chain Guard to ensure a cleaner, maintenance-free experience.

• Max Load: 250 kg reinforced support.

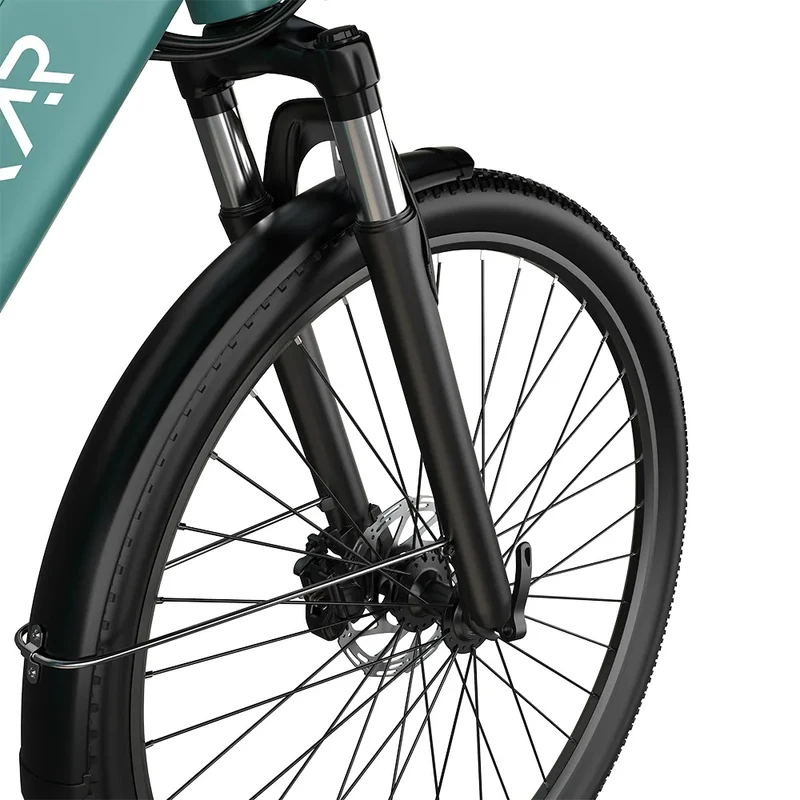

• Suspension: Aluminum adjustable shock absorbers (80mm travel).

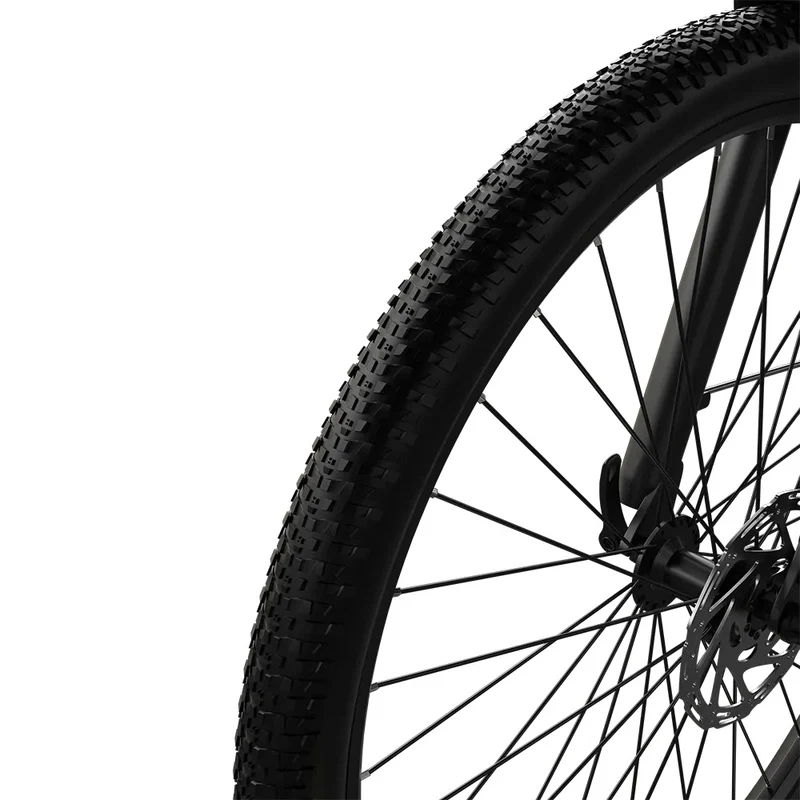

• Tires: 28" × 1.95" KENDA tires for superior momentum and grip.

⚙️ Precision Control: Shimano 7-Speed System

Adapt to any terrain with the Shimano 7-speed indexing system. Paired with 170mm crank arms and a 48T chainring, the C1 PRO offers the perfect mechanical advantage for effortless urban climbing and high-speed cruising.

• Gearing: Shimano 14-28T Freewheel and Rear Derailleur.

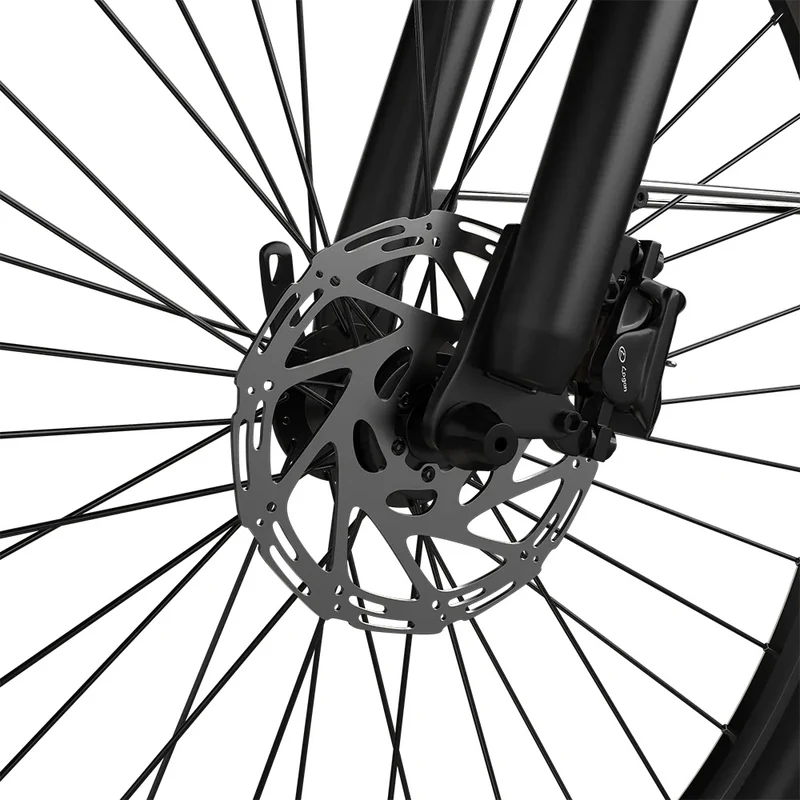

• Braking: Front and Rear Mechanical Disc Brakes with 160mm rotors.
• Safety: Brake priority protection system and CE certified components.

Technical Specifications

Motor	BAFANG 250W Peak Rear Hub Brushless (45 N.m)
Battery	Samsung 36V 13Ah (460Wh) IP65 Waterproof
Max Range	120+ km (PAS) / 58 km (Electric-Only)
Max Load	250 kg Heavy-Duty Reinforced
Tires	28" × 1.95" KENDA Tires (EN15194 Standard)
Dimensions	180 × 67 × 114 cm

Experience the elite fusion of vintage aesthetics and superior endurance with the PIXAR C1 PRO Electric Bike. Specifically engineered for professional urban performance, the PRO version features a high-capacity Samsung 18Ah battery system and a reinforced frame supporting a 250kg load capacity, making it the ultimate heavy-duty partner for long-range city travel.

BAFANG
250W Power

Smooth & Reliable: The BAFANG 250W Outer Rotor BLDC Motor with 5-Level PAS & Sinusoidal Wave Structure ensures a smoother ride and smarter power delivery for an effortless urban cruise.

3805rpmMax speed 45 N.mMax torque

648Wh
Samsung Battery

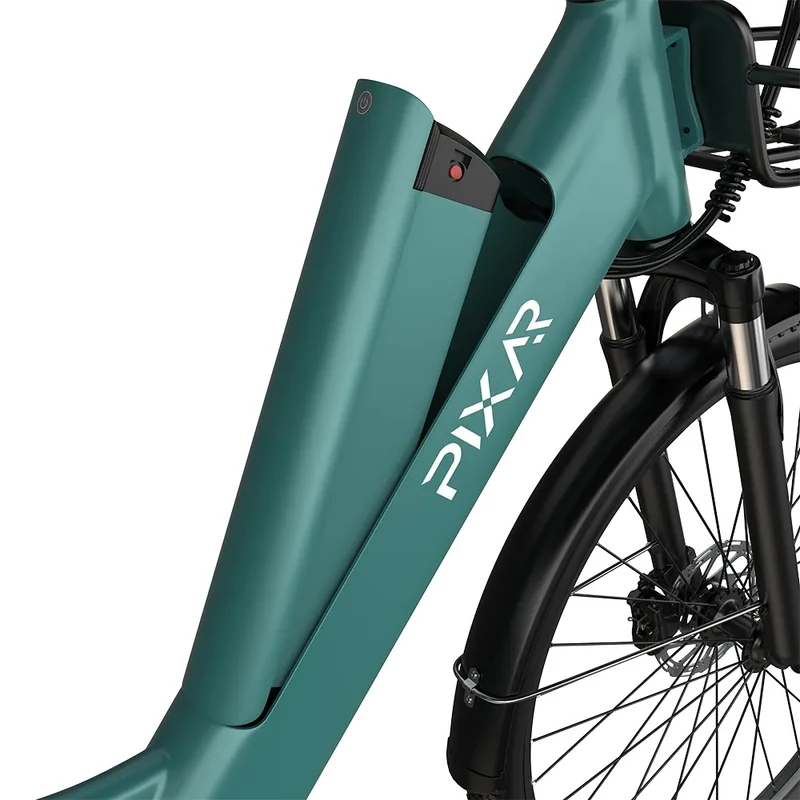

The 36V 18Ah Samsung 21700 battery offers 6% higher energy density than 18650 cells for extended range and power. Quick-release design for easy access, IPX6 waterproof for all-weather reliability.

150kmMax range IPX6Waterproof rating

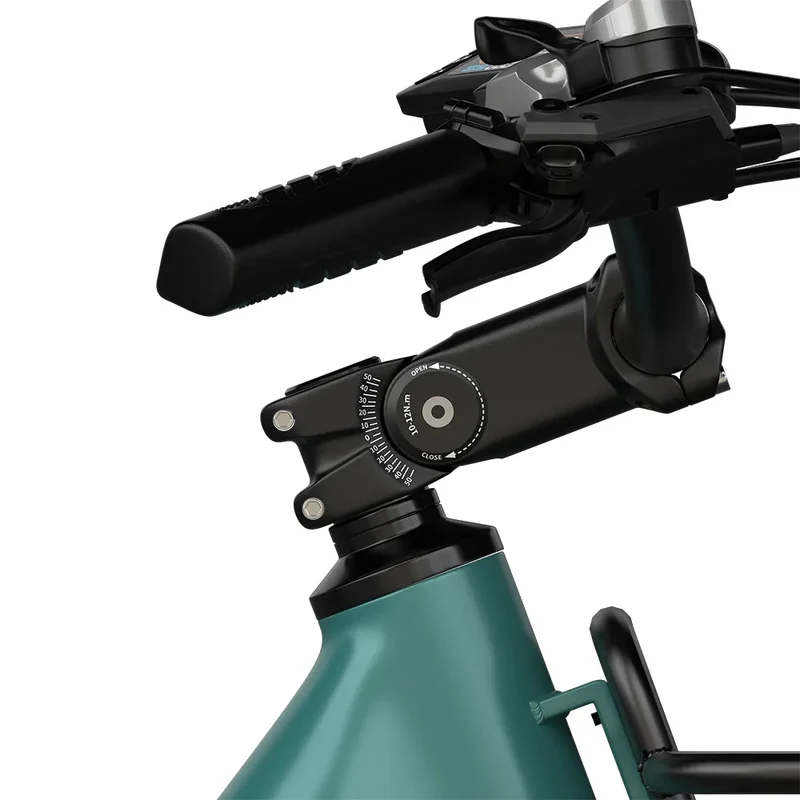

Handlebar
Angle Adjustment

Find your perfect riding position in seconds. The C1 PRO features adjustable handlebar flexibility for customized comfort, control, and total ergonomic flexibility — all in one effortless motion.

100°Adjust Angle PROComfort Control

C1 PRO Technical Specifications

Motor	BAFANG 250W Outer Rotor BLDC (45 N.m)
Battery	Samsung 36V 18Ah 21700 Cells (648Wh)
Max Range	150km (Pedal Assist) / 70km (Electric Only)
Max Load	250 kg (Heavy Duty Reinforced)
Adjustable Handlebar	100° Angle Adjustment Range
Brakes	Front & Rear Mechanical Disc Brakes (160mm)

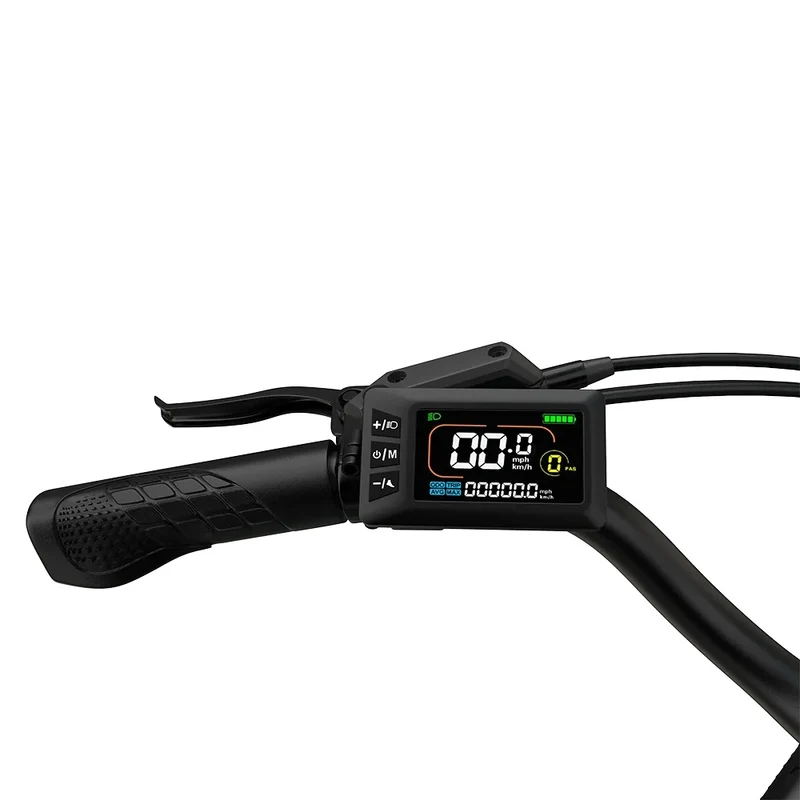

PIXAR C1 PRO Electronic Control Cofiguration

[/DESCRIPTION][SPECIFICATIONS]

• Motor: 250W Peak Rear Hub Brushless Motor.
• Crankset: 170mm Crank Arms, 48t Chainring.
• PAS Levels: 0-5 PAS.
• Throttle: Half-Twist Throttle / Optional Thumb Throttle.
• Maximum Output: 48V23A With Temperature Control Protection.
• Sensors: Speed Sensor.
• Freewheel: Shimano 7-Speed Indexing, 14-28T.
• Rear Derailleur: Shimano 14-28T.
• Charger: 2A Smart Charger, CE Certified.
• Pedal Assist Range: 150+ km
• Electric-Only Range: 70 km
• Top Speed: 25 km/h
• Dimensions: 180 × 67 × 114 (cm)
• Max Load Capacity: 250 kg
• Ebike Net Weight: 32.9kg
• Torque: 45 N.m
• Battery: Samsung 36V 18Ah IP65 Waterproof, CE Certified
• Battery Charging Time: 4 - 5 hours
• Battery Weight: 5.1 kg
• Front Suspension: Aluminum Adjustable Shock Absorbers.
• Front Suspension Travel: Total Length 450mm, Travel 80mm.
• Handlebar: Riser Handlebar, Grip Length 11.5cm, Total Length 66cm
• Pedals: 9×7(cm), With Reflectors.
• Chain: 1/2" × 3/32" × 118L, 21-Speed Indexing.
• Rim: Alloy 28"× 1.95" × 13G × 36H.
• Spokes: 45# 12g × 212mm, Compliant With EN15194 Standard.
• Tire Brand: KENDA Tire.
• Tire Size: 28" × 1.95", 45psi.
• Inner Tube: 28" × 1.95", Valve Stem 35mm.
• Brake Levers: Aluminum Material (With Brake Priority Protection).
• Brakes: Front And Rear Mechanical Disc Brakes.
• Brake Rotors: 160mm.
• Kickstand: Heavy-Duty Aluminum Kickstand.
