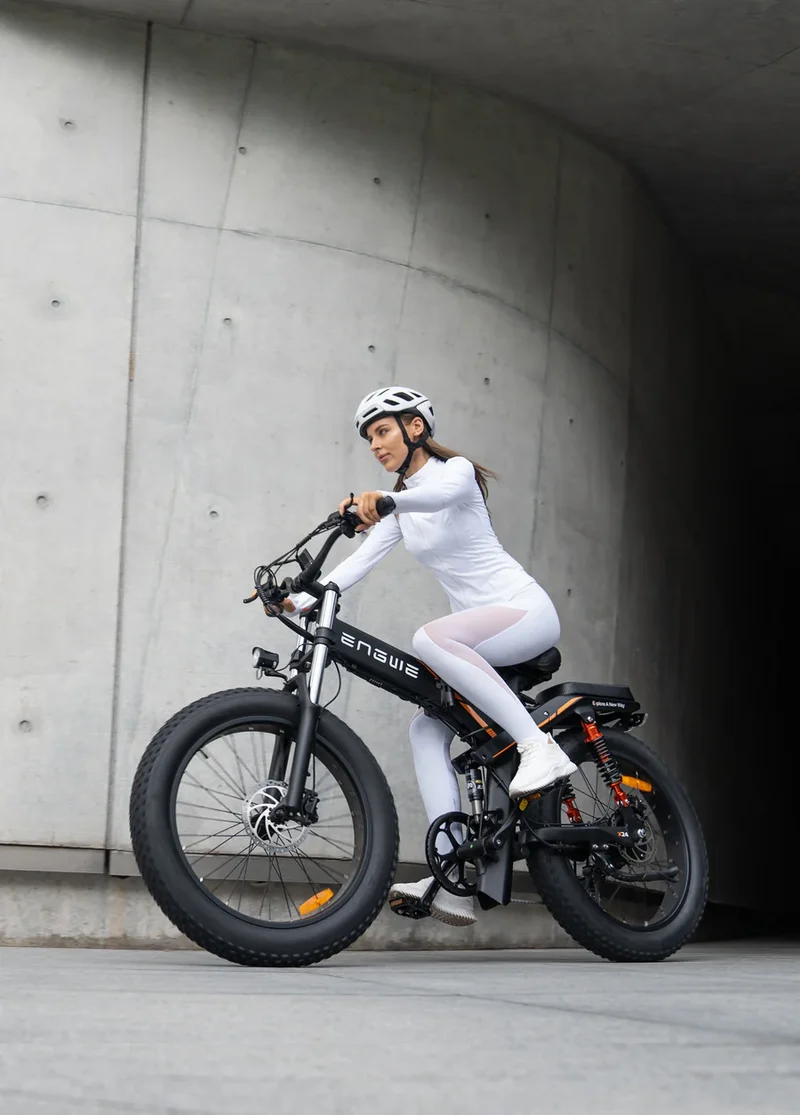

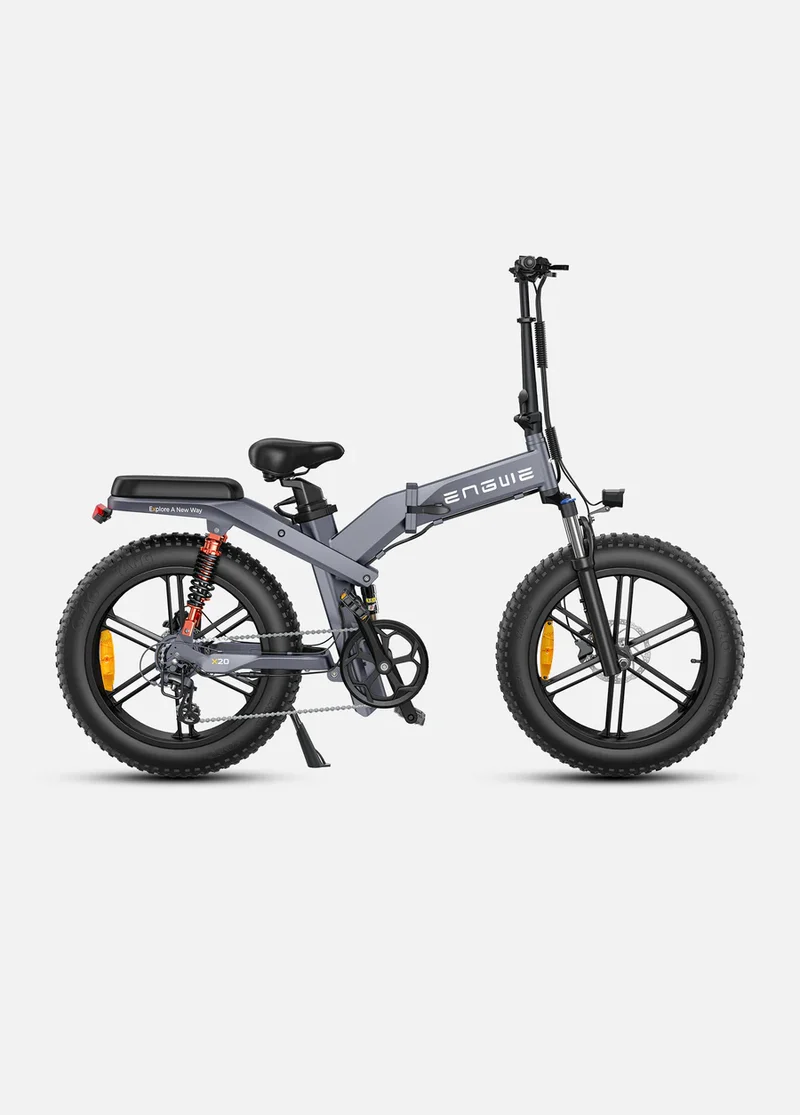

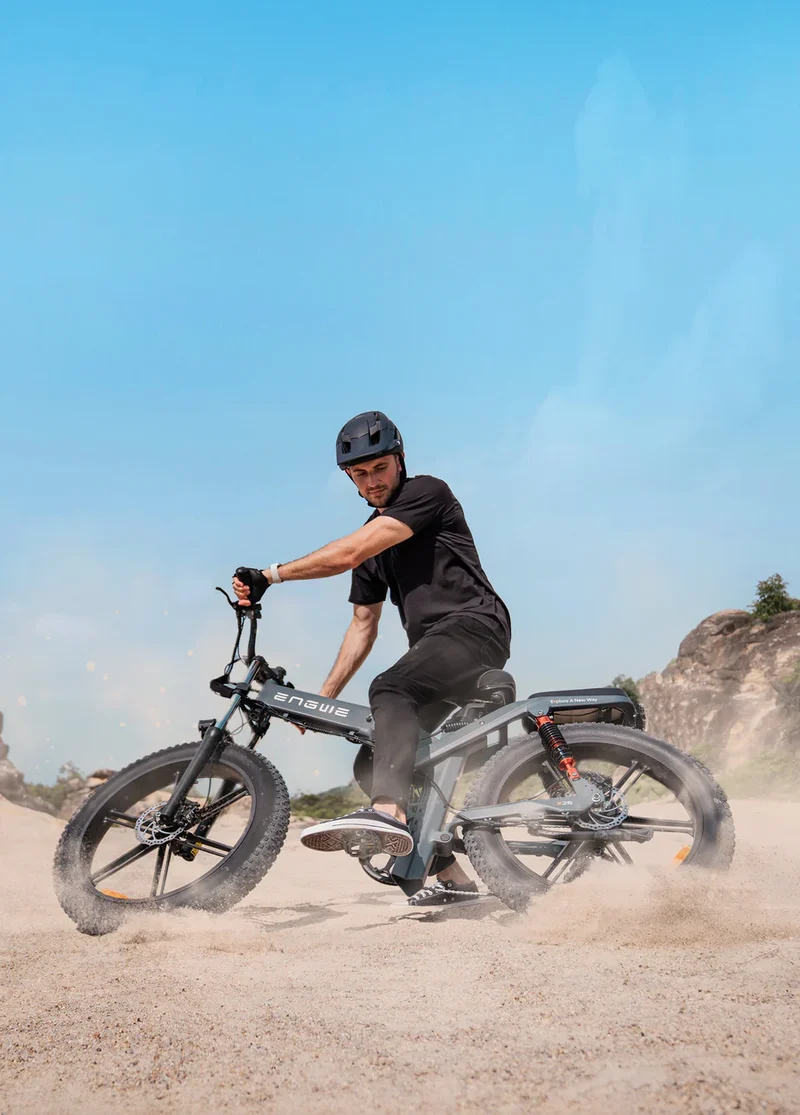

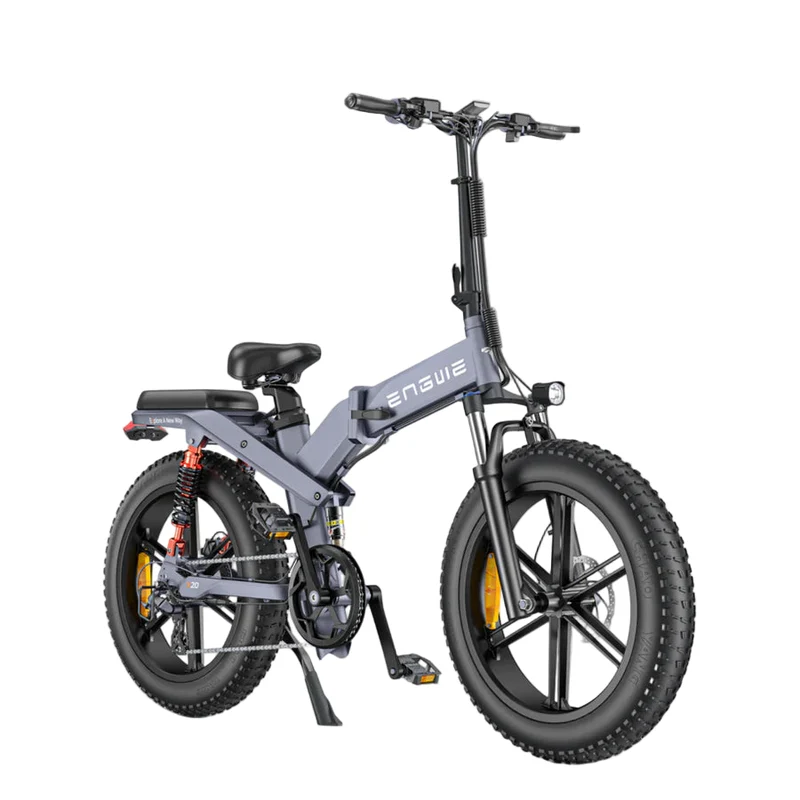

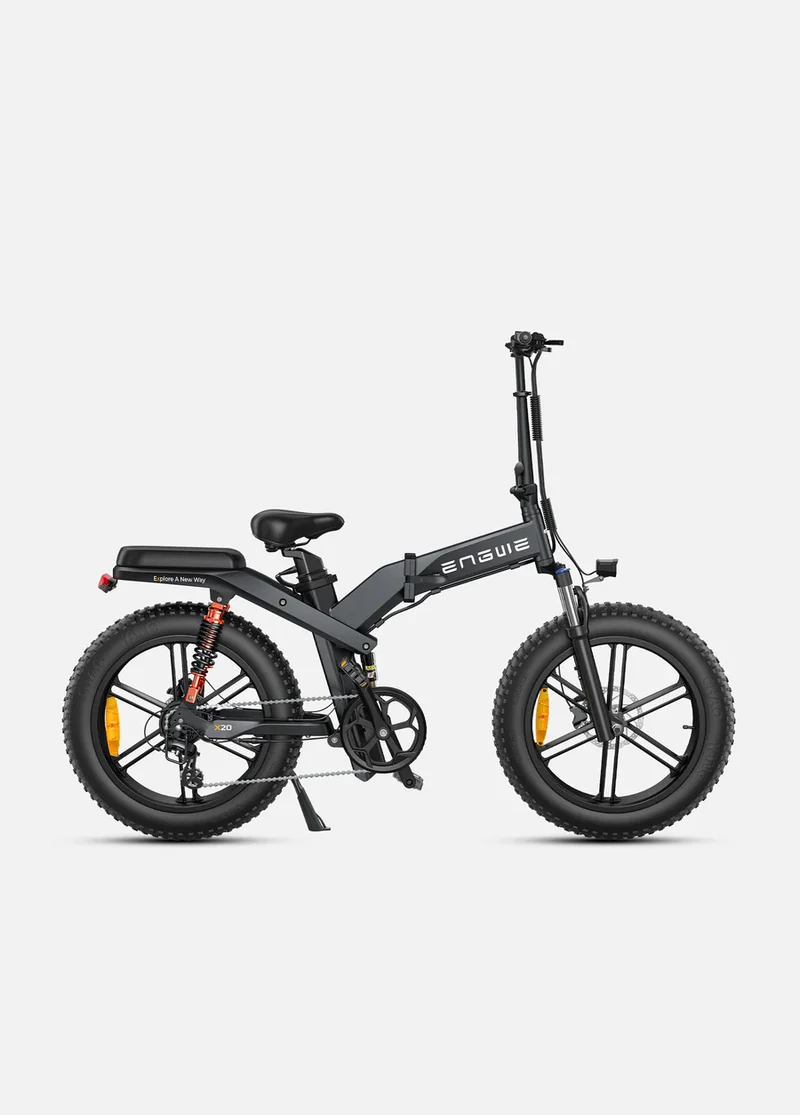

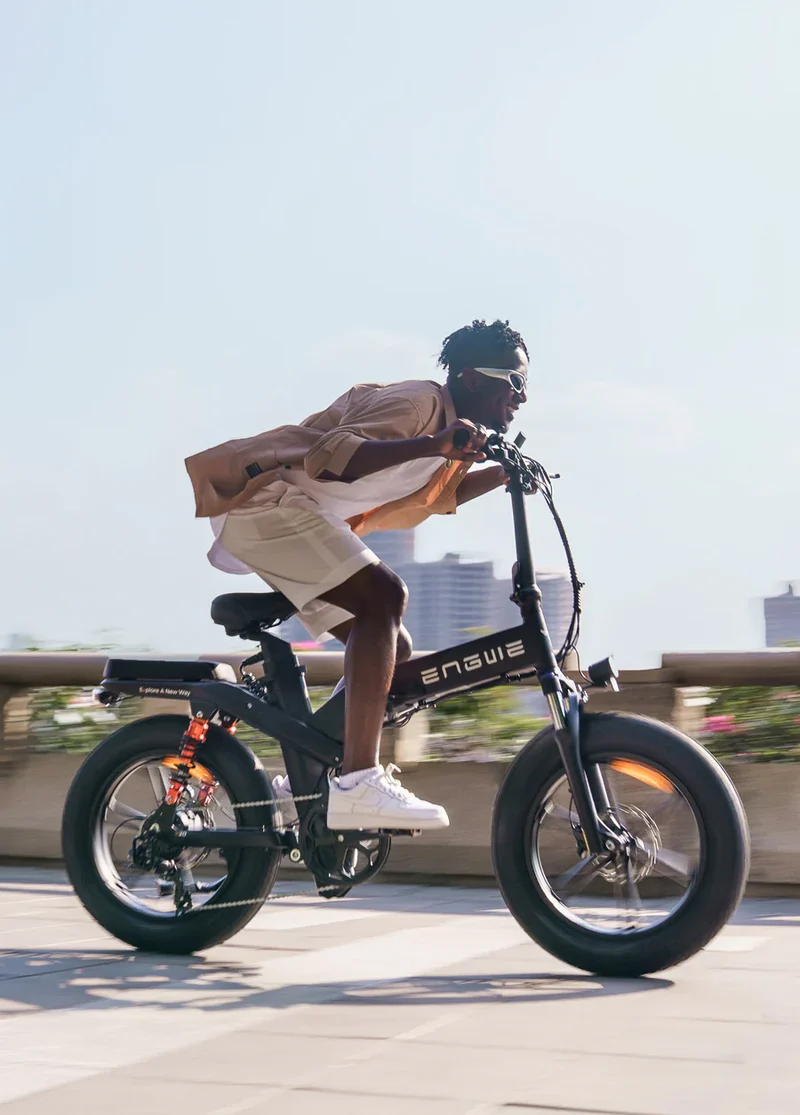

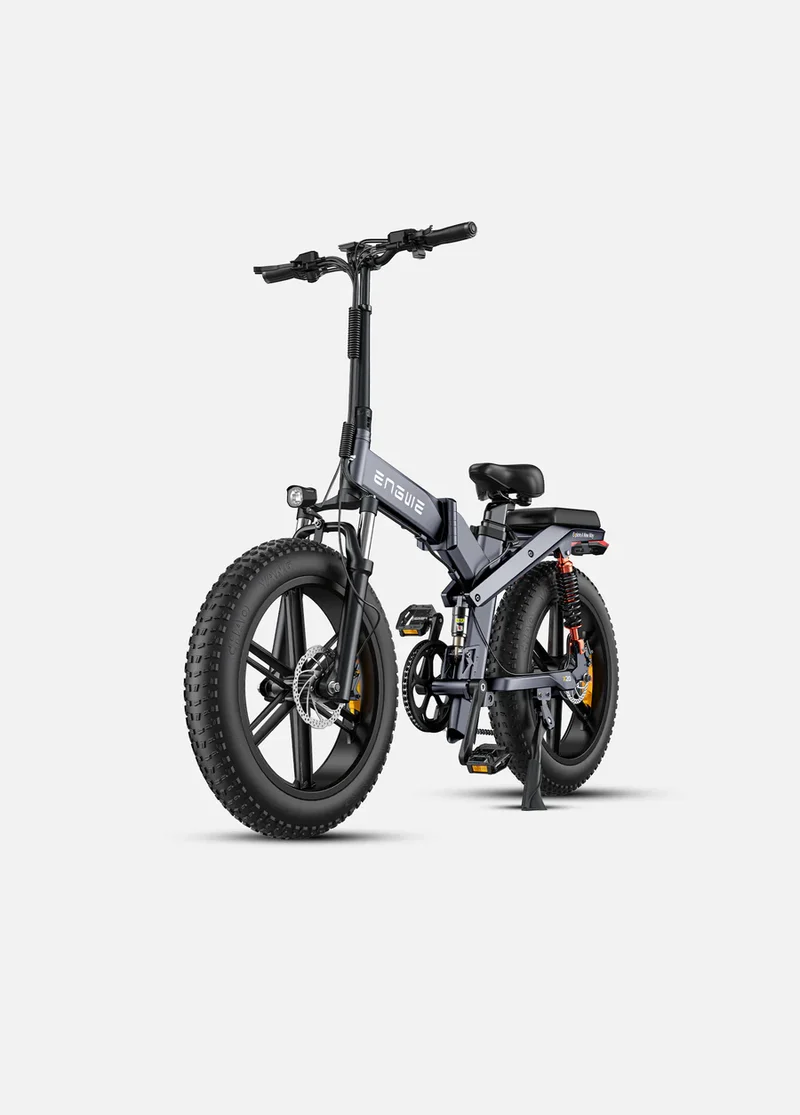

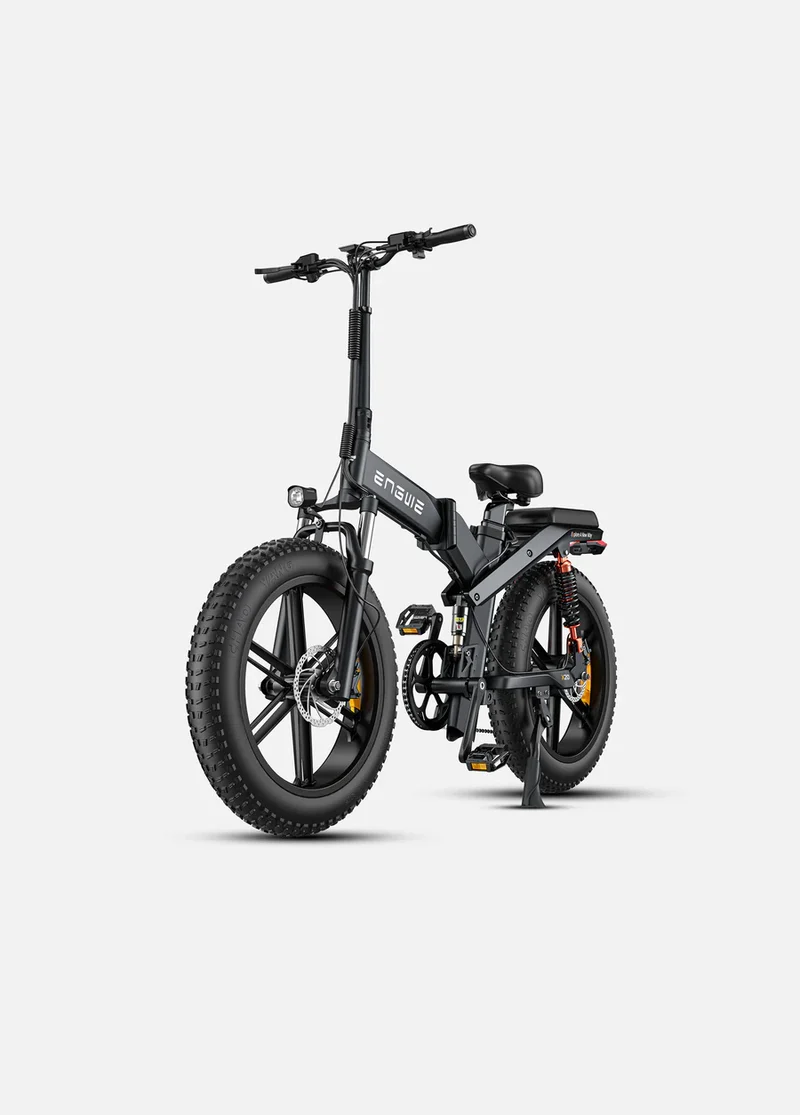

Engwe X20 Max Speed 25 km/h Triple Suspension Foldable E-Bike

The Engwe X20 is a high-performance foldable fat-tire e-bike built for riders who need power, comfort, and range in one machine. Featuring a 65 Nm high-speed brushless motor, triple suspension system, and hydraulic disc brakes, this e-bike handles urban commutes and off-road trails with ease.

With dual-battery technology, the X20 can reach up to 150 km in ECO mode, while the single battery version offers up to 100 km. Its 20 × 4.0” fat tires provide excellent traction on multiple terrains, and the foldable aluminum alloy frame makes it convenient for storage and transport.

Why Riders Choose the X20

• Triple suspension system for maximum comfort on any terrain

• Dual-battery option with up to 150 km range

• Hydraulic disc brakes for precise and safe stopping power

• Shimano 8-speed gears for versatile riding

• 20 × 4.0 fat tires for stability on roads, sand, or snow

• Foldable design for portability and easy storage

Power and Performance

Spec	Detail
Motor	High-Speed Brushless Motor
Max Torque	65 Nm
Dual Battery Version	48V 14.4Ah + 48V 7.8Ah Lithium-Ion
Single Battery Version	48V 14.4Ah Lithium-Ion
Range (Dual)	150 km (ECO Mode)
Range (Single)	100 km (ECO Mode)
Max Speed	25 km/h
Charging Time	About 7 Hours
Climbing Ability	30°

Comfort, Safety & Control

• Triple suspension system (front, middle, rear) for smooth rides

• Hydraulic disc brakes for confident braking

• Shimano 8-speed transmission for adaptability

• 20 × 4.0” fat tires for grip and shock absorption

Fit & Dimensions (Unfolded)

Spec	Measurement
Handlebar Height	113.5 cm
Total Length	170.5 cm
Reach	43.7 cm
Standover Height	63.3 cm
Wheelbase	112.5 cm
Saddle Height (Min–Max)	84.5–106 cm
Rider Height	5’4”–6’2”
Payload Capacity	150 kg (330 lbs)

⚠️ Note: There may be a 0–5 cm difference between measured and actual data.

Folded Dimensions

Spec	Measurement
Height	79 cm
Length	103 cm
Width	68 cm

⚠️ Note: There may be a 0–5 cm difference between measured and actual data.

Weight

Version	Net Weight	Gross Weight
X20 E-Bike	37.2 kg (82 lbs)	46.3 kg (102 lbs)

What’s in the Box

• X20 E-Bike ×1

• Dual Battery Version: 48V 14.4Ah + 48V 7.8Ah Lithium-Ion ×1 each

• Single Battery Version: 48V 14.4Ah Lithium-Ion ×1

• Battery Charger ×1

• Assembly Tools ×1

• Pedals ×2

• Handlebars (pre-installed) ×1

• User Manual ×1

• Display Manual ×1

• Tool Kit ×1

⚠️ Note: The product you receive will match the battery version you selected when ordering.
