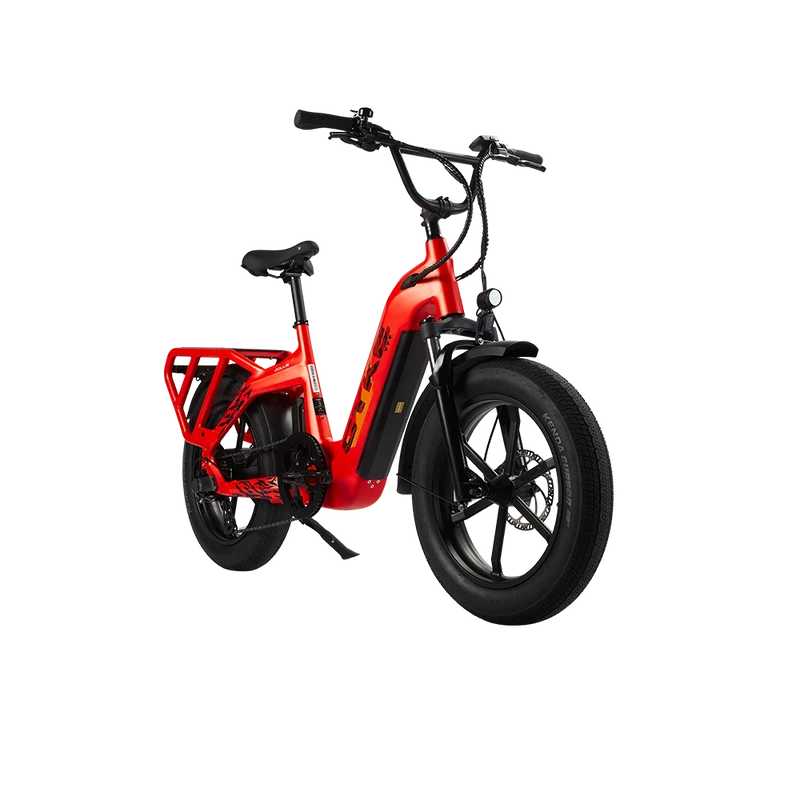

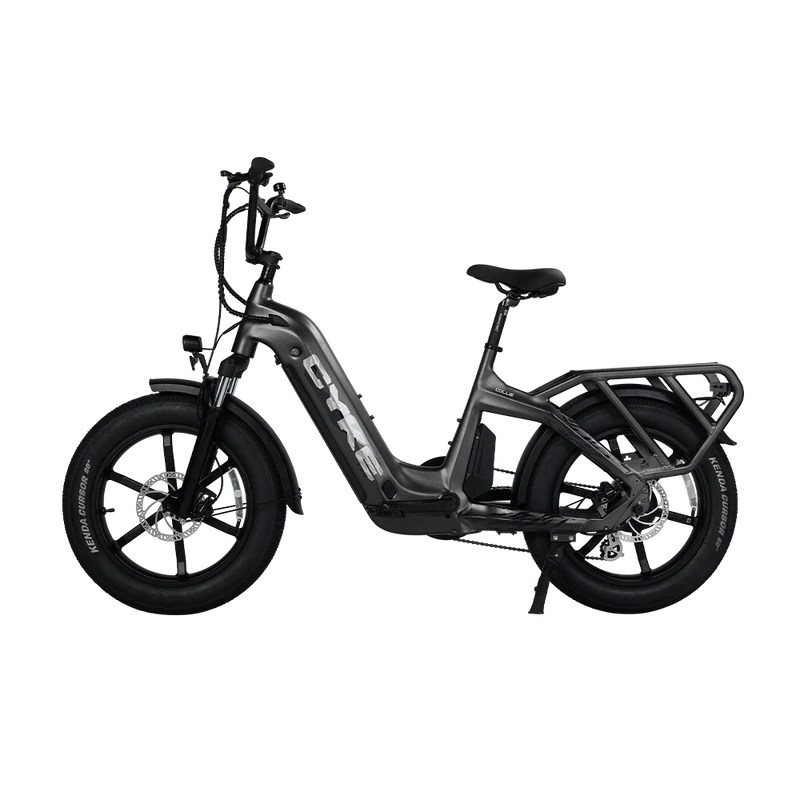

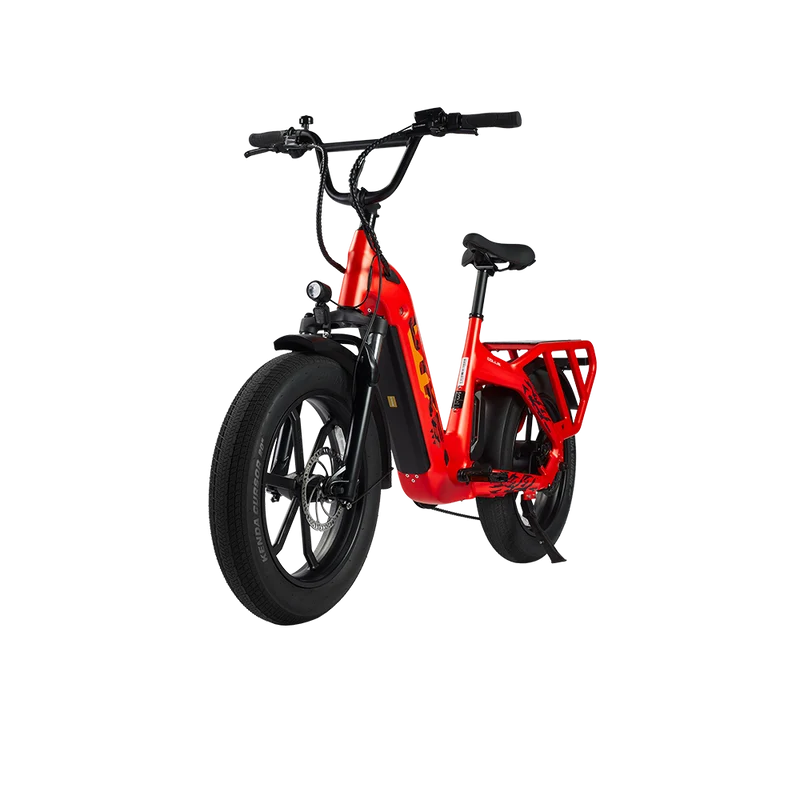

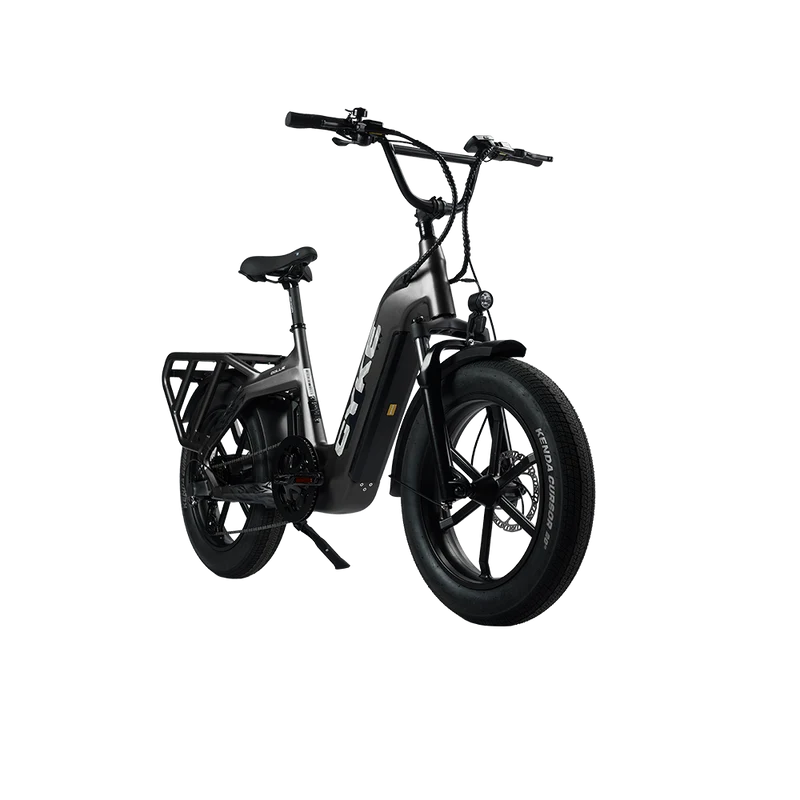

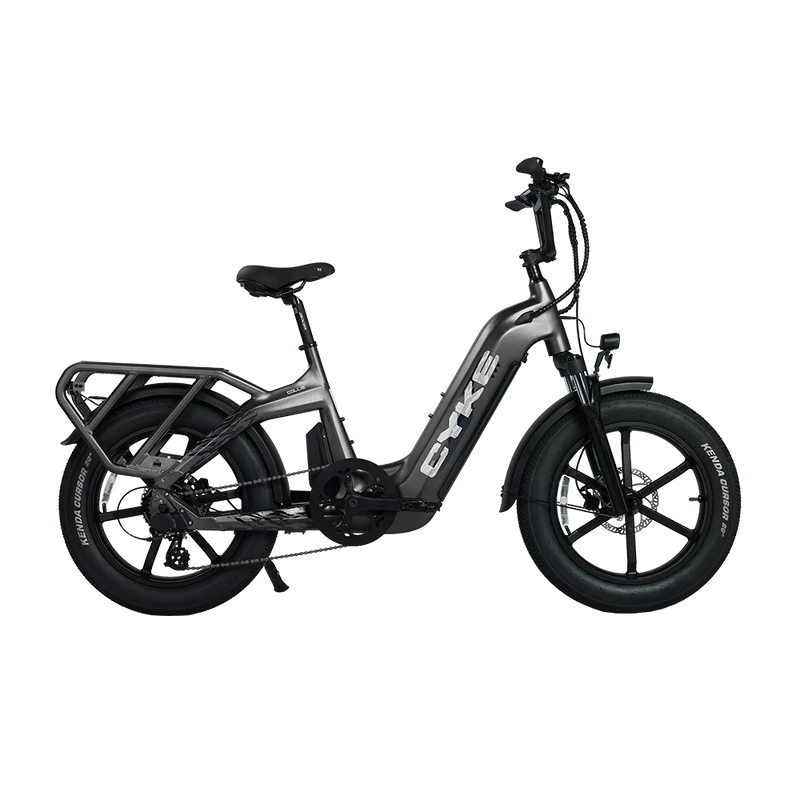

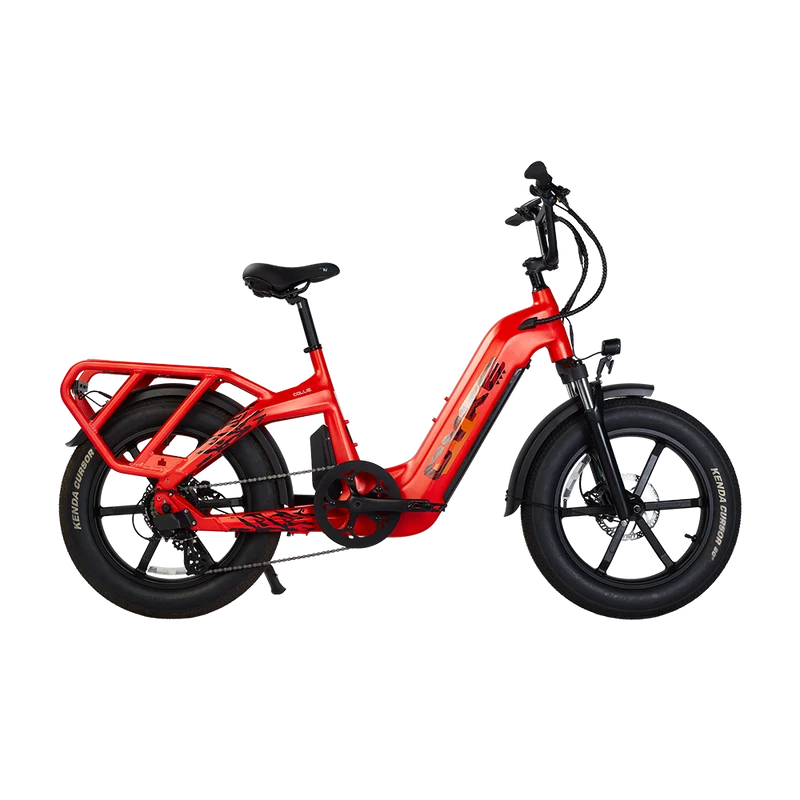

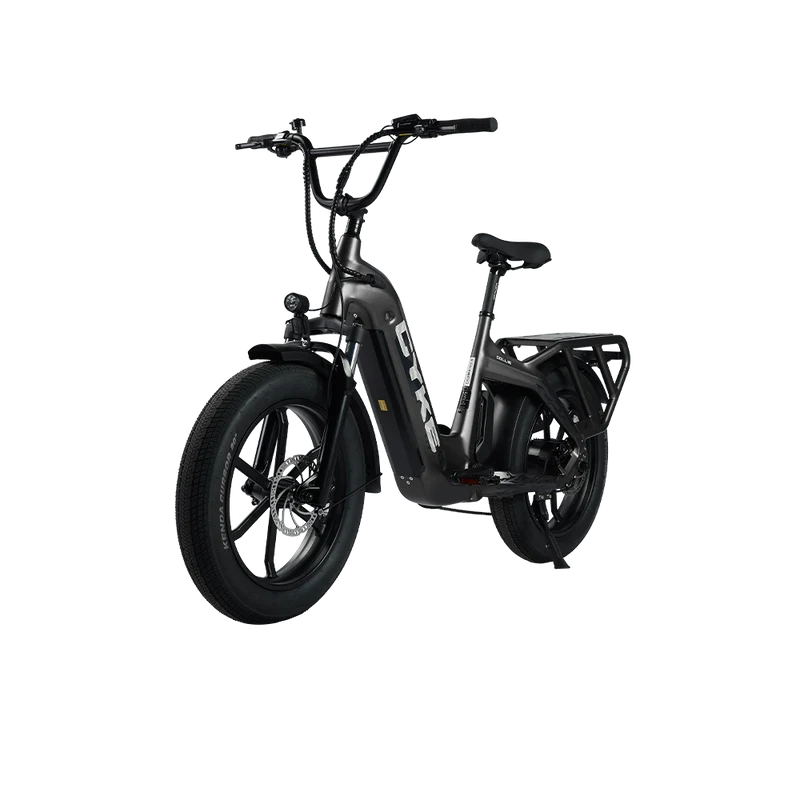

Cyke Family Series Collie Cargo Electric Bike

The Cyke Family Series Collie Cargo Electric Bike is a purpose-built, heavy-duty cargo e-bike engineered for urban transport, family rides, and daily hauling. Designed with a reinforced 6061 aluminum alloy frame and an integrated rear cargo rack, the Collie confidently supports up to 450 lbs, making it ideal for carrying groceries, gear, pets, or even a child.

Powered by a BAFANG SUTTO 750W rear hub motor delivering 85 Nm of torque, and paired with a 48V 20Ah (960Wh) LG-cell battery, the Collie reaches 28 MPH and provides up to 100 miles of range in ECO pedal-assist mode. Its external air-cooled controller ensures consistent peak performance and long-term reliability under heavy loads.

Why Choose the Cyke Collie Cargo

• Designed specifically for cargo hauling and urban commuting
• Massive 450 lb total load capacity
• Integrated rear cargo rack built directly into the frame
• BAFANG SUTTO 750W motor with strong low-end torque
• Up to 100 miles of range with 48V 20Ah LG battery
• External air-cooled controller for better heat management
• 20×4.0” KENDA fat tires for stability and comfort
• Limited lifetime warranty for long-term peace of mind


Power and Performance

Spec	Detail
Motor	BAFANG SUTTO 750W Rear Hub
Max Torque	85 Nm
Battery	48V 20Ah (960Wh) LG Lithium-Ion
Max Speed	28 MPH (PAS & Throttle)
Max Range	Up to 100 Miles (ECO PAS, 75 kg load)
Charging Time	6–7 Hours (3A Charger)
Pedal Assist	5 Levels
Throttle	Thumb Throttle
Sensor	Cadence Sensor

Comfort & Safety

• RST front suspension fork (60 mm travel) for urban comfort
• TEKTRO hydraulic disc brakes with 180 mm rotors
• 20×4.0” fat tires for stable, confident cargo handling
• 2.0” color matrix HMI display for clear ride data
• 40 LUX headlight and integrated rear brake light
• Front & rear fenders for all-weather commuting

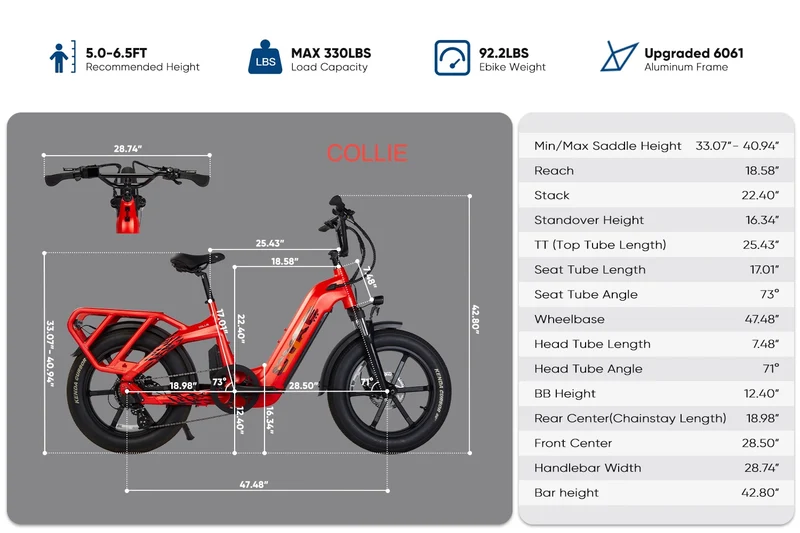

Fit & Dimensions (Unfolded)

Spec	Measurement
Bike Size	71.63 × 28.74 × 45.14 in
Recommended Use	Cargo / Urban / Family
Max Load Capacity	450 lbs
Net Weight	92.2 lbs

⚠️ Note: Range may vary depending on terrain, rider weight, assist level, and weather conditions.

Size

Weight

Item	Weight
Net Weight	92.2 lbs
Gross Weight	120.2 lbs

What’s in the Box

• Cyke Family Series Collie Cargo Electric Bike
• 48V 20Ah LG Lithium Battery
• 3A Battery Charger
• Integrated Rear Cargo Rack
• Front & Rear Fenders
• Kickstand
• User Manual


⚠️ The product you receive is based on the option you selected when ordering.

VoltCentre Promise

Free Shipping – Fast delivery with real-time tracking.
Warranty & Coverage – Backed by manufacturer warranty plus VoltCentre’s support.
Curated Collection – Only rider-tested, approved products make it to our store.

Cyke Warranty

One-year warranty for the entire scooter. Free replacement of Accessories and spare parts

• Shipping damage

  • Inspect on delivery and note any damage on the Bill of Lading

  • Photograph the packaging and product; keep all materials

  • File a damage claim within 14 days via customer support

• How to file a warranty claim

  1. Contact VoltCentre (or your original seller) with your order/invoice number

  2. Provide the scooter’s serial number, clear photos/video, and a description of the defect

  3. Return the item in original or dealer-approved packaging if requested

• Valid proof of purchase

  • Online order number from an authorized Cyke reseller

  • Sales invoice

  • Dated sales receipt (more than one document may be required)

• Warranty is void if

  • Product is out of warranty, lost, stolen, or complimentary

  • Damage results from water, misuse, collisions, self-modifications, or incompatible accessories

  • Unsupported software/firmware has been installed

  • Sufficient proof of purchase is not provided

  • Product was bought from an unauthorised seller

• Out-of-warranty parts & repairs

  • Replacement parts are available at manufacturer pricing

  • Contact customer support for quotes or repair requests (responses within business hours)
