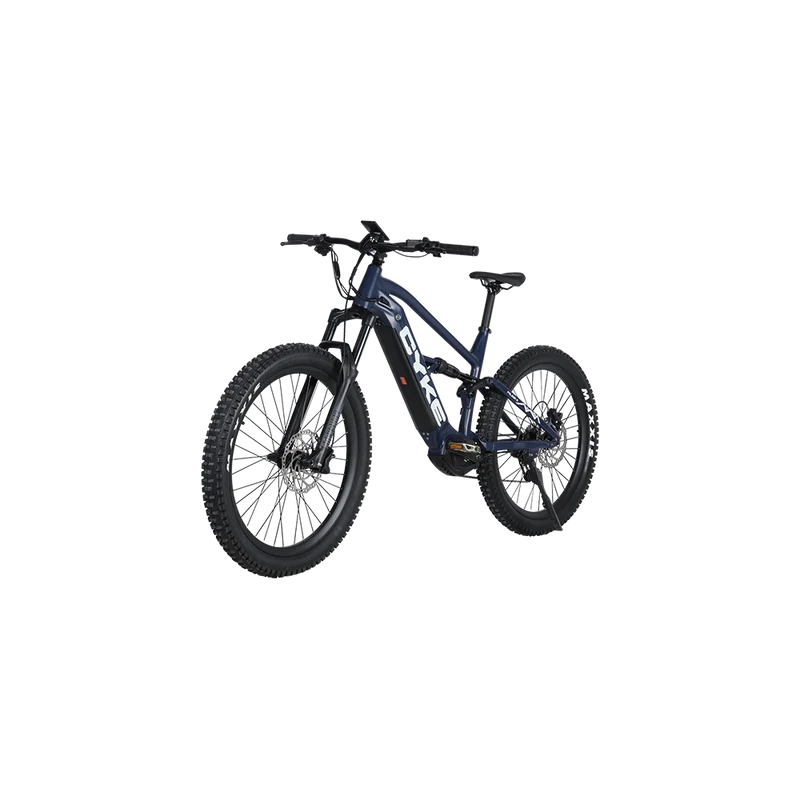

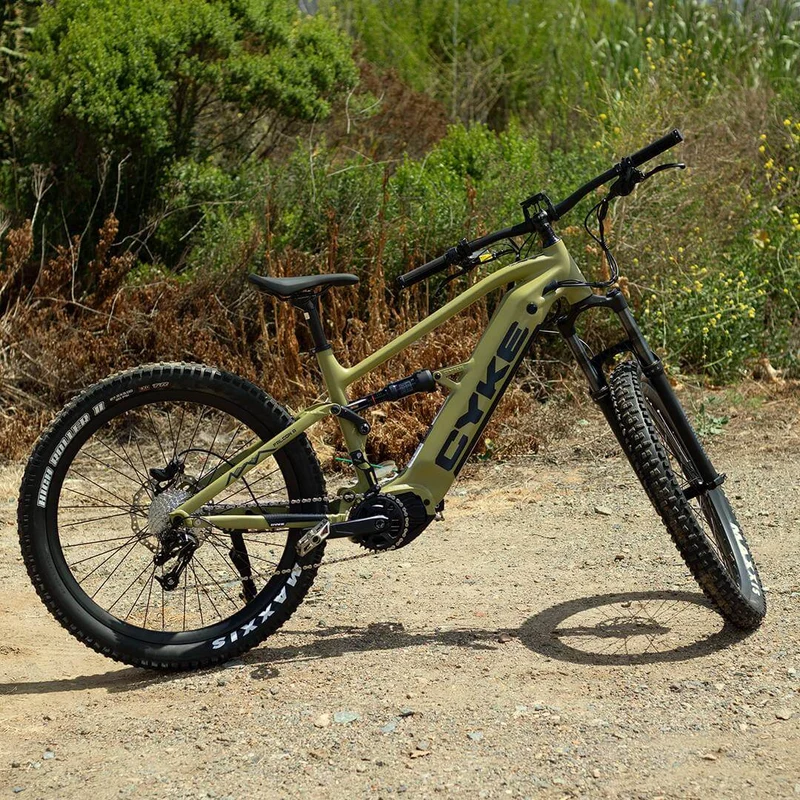

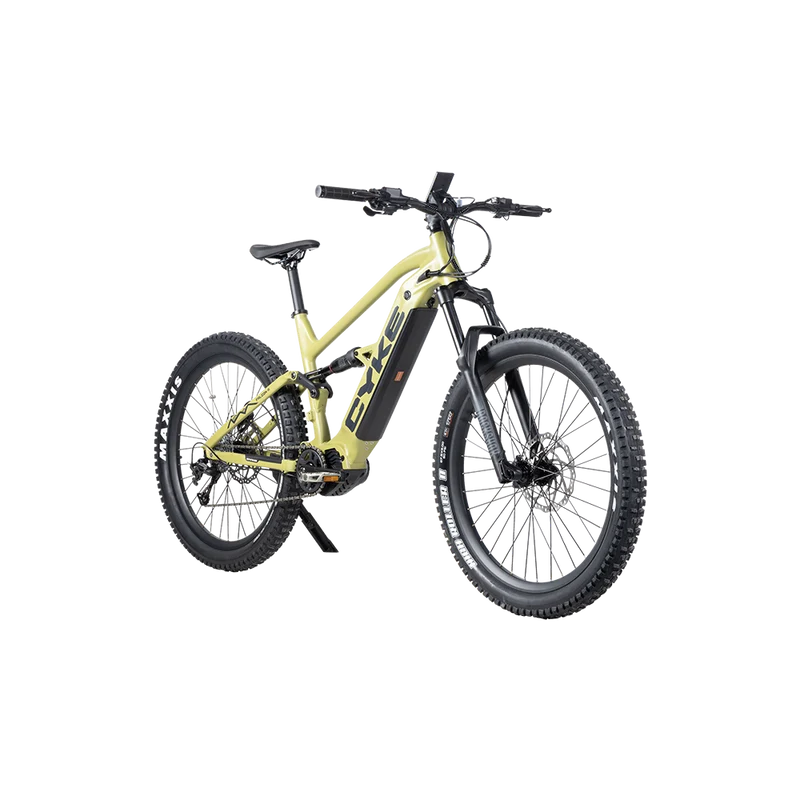

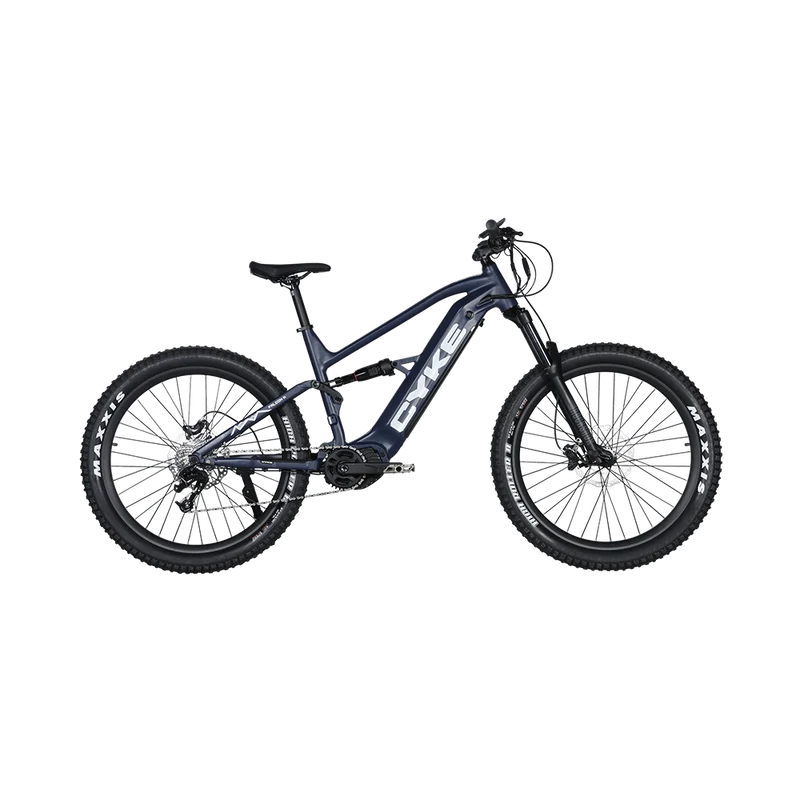

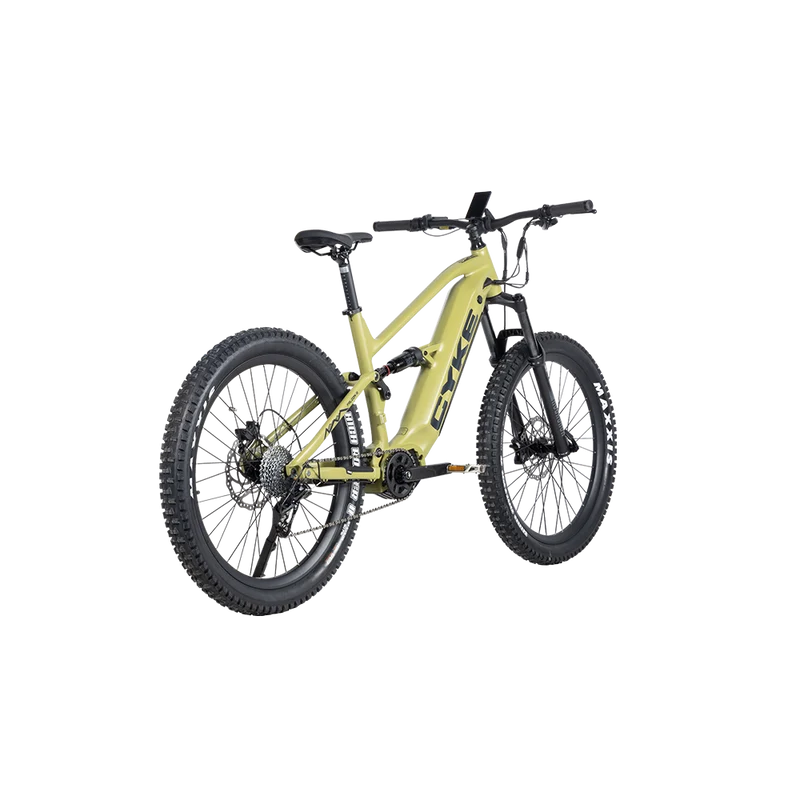

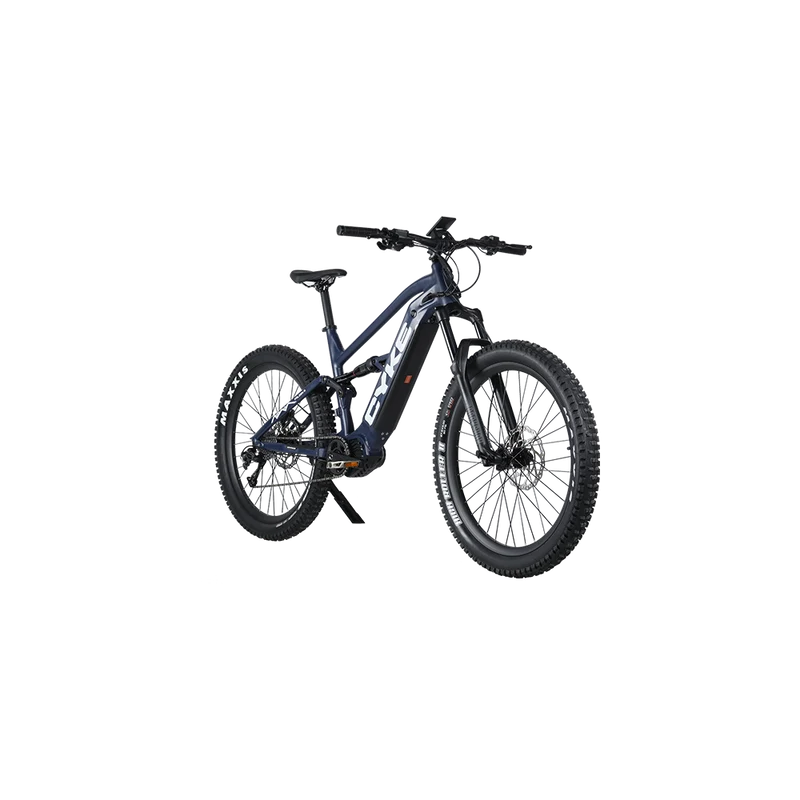

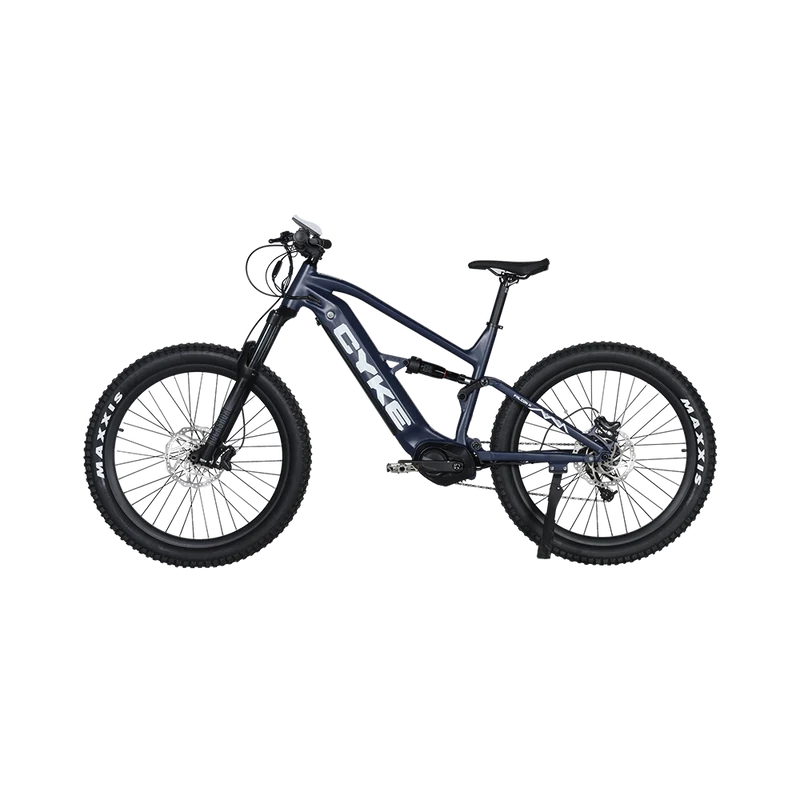

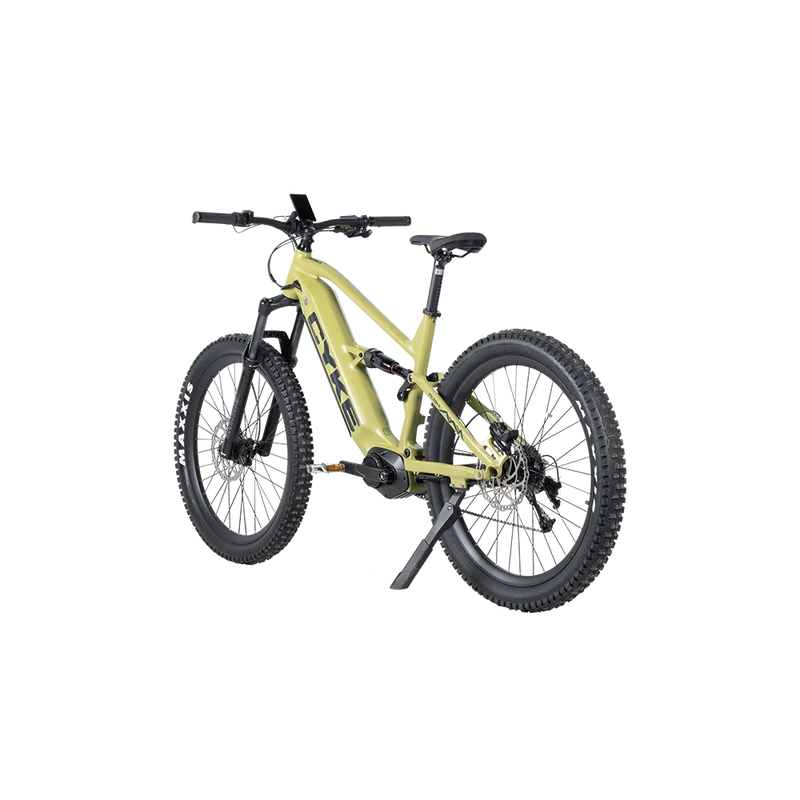

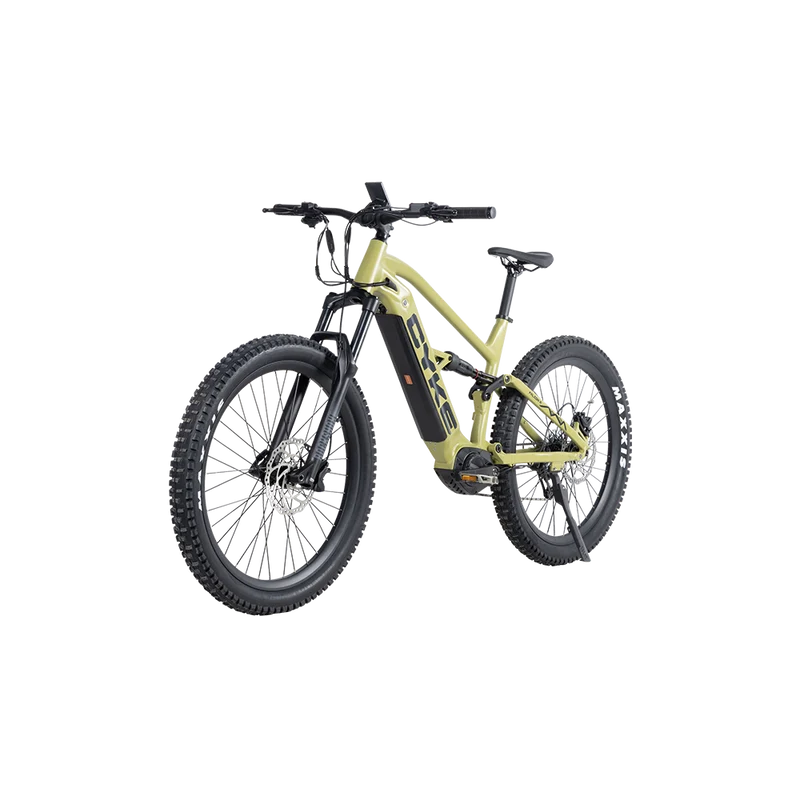

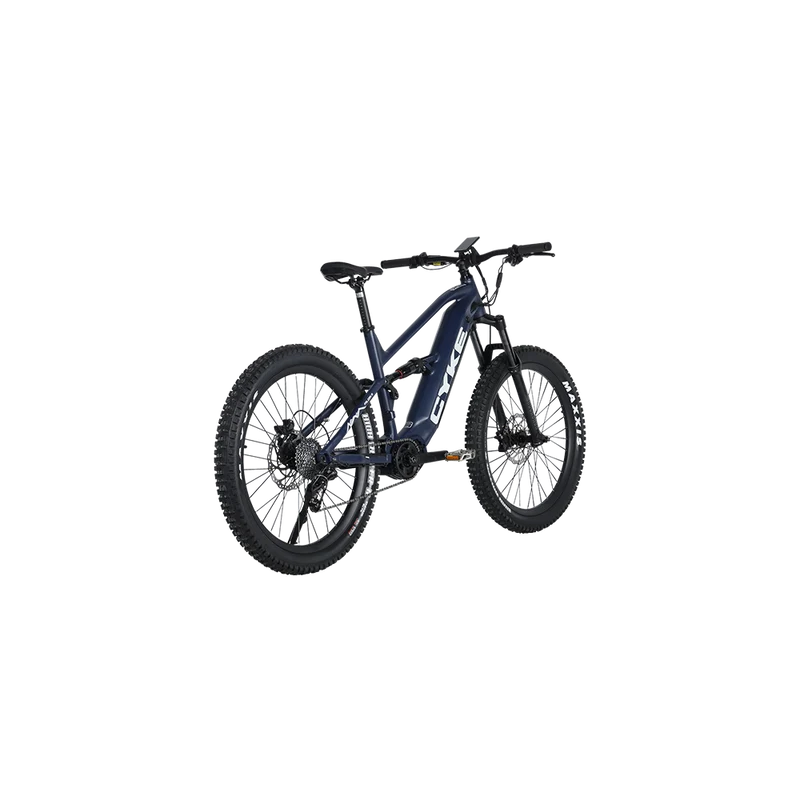

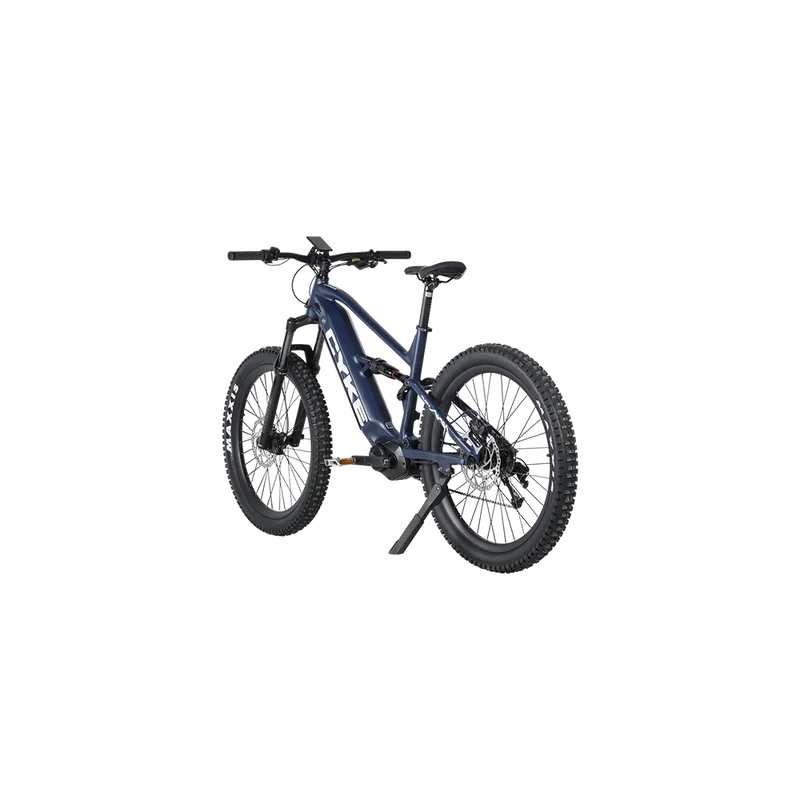

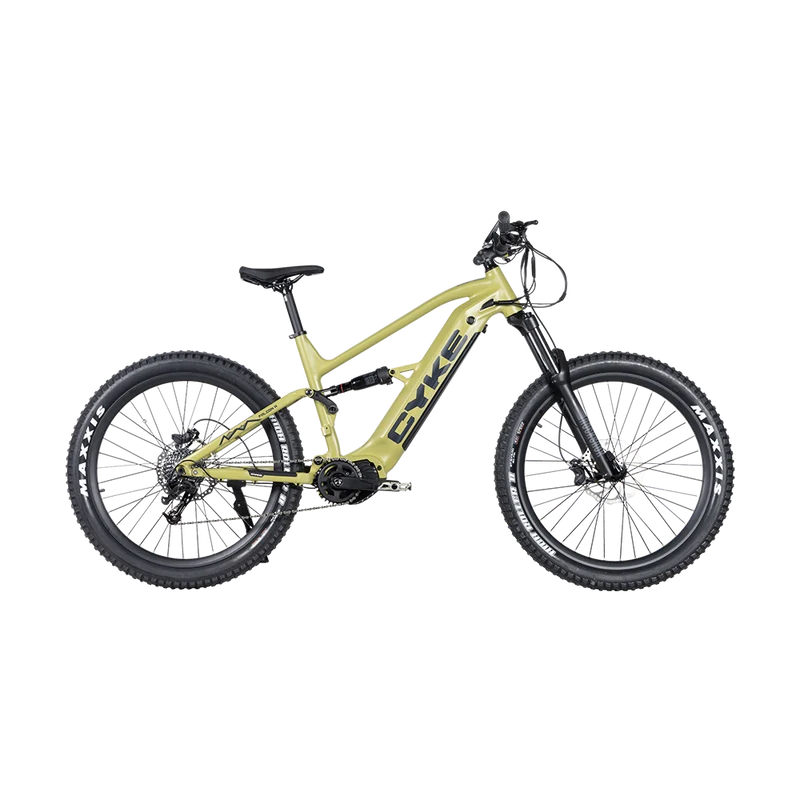

Cyke Cross Series Falcon A Full Suspension Electric Bike

The Cyke Cross Series Falcon A Full Suspension Electric Bike is built for riders who demand precise control, smooth power delivery, and premium suspension performance across diverse terrain. Featuring a RockShox four-bar full suspension system with 150 mm front and rear travel, Falcon A delivers superior comfort, traction, and handling on technical trails, gravel paths, and rough backcountry routes.

Powered by a BAFANG mid-drive motor rated at 500W (750W peak) producing 130 Nm of torque, and paired with a 48V 15Ah (720Wh) LG 21700 lithium battery, Falcon A reaches 28 MPH and offers up to 75 miles of range in PAS mode. A torque sensor, SRAM 9-speed drivetrain, and TEKTRO 4-piston hydraulic brakes ensure confidence, control, and responsiveness at every turn.

Why Choose the Falcon A

• RockShox four-bar full suspension for exceptional control
• BAFANG 500W mid-drive (750W peak) delivering 130 Nm torque
• Torque sensor for smooth and natural pedal assist
• 48V 15Ah (720Wh) LG battery with up to 75 miles of range
• 27.5×3.0” Maxxis High Roller II tires for strong grip
• 28 MPH top speed with 5 pedal-assist levels and throttle
• TEKTRO 4-piston hydraulic brakes with 203 mm rotors
• SRAM 9-speed drivetrain for precise shifting
• Limited lifetime warranty


Power and Performance

Spec	Detail
Motor	BAFANG Mid-Drive, 500W Rated / 750W Peak
Max Torque	130 Nm
Battery	48V 15Ah (720Wh) LG 21700 Lithium-Ion
Max Speed	28 MPH (PAS & Throttle)
Range	Up to 75 Miles (PAS1, flat terrain, 75 kg load)
Charging Time	6–8 Hours (3A Charger)
Pedal Assist	5 Levels
Sensor	Torque Sensor

Comfort & Safety

• RockShox FS RCNS RL front fork (150 mm travel)
• RockShox Deluxe Select-C1 rear shock with iDebonAir+
• TEKTRO HD-E730 hydraulic disc brakes, 4-piston calipers
• Oversized 203 × 2 mm rotors for powerful stopping
• 4" TFT Bluetooth color display (IP66)
• Stable, well-balanced frame for confident handling


Fit & Dimensions (Unfolded)

Spec	Measurement
Frame Sizes	17" / 19"
Bike Size	82.84 × 30.9 × 45.79 in
Recommended Use	Trail / All-Terrain / eMTB
Max Load Capacity	300 lbs

⚠️ Note: Range may vary depending on terrain, rider weight, assist level, and weather conditions.

Size

Weight

Item	Weight
Net Weight	55 lbs
Gross Weight	86 lbs

What’s in the Box

• Cyke Cross Series Falcon A Full Suspension Electric Bike
• 48V 15Ah LG Lithium Battery
• 3A Battery Charger
• Side Kickstand
• User Manual


⚠️ The product you receive is based on the option you selected when ordering.
