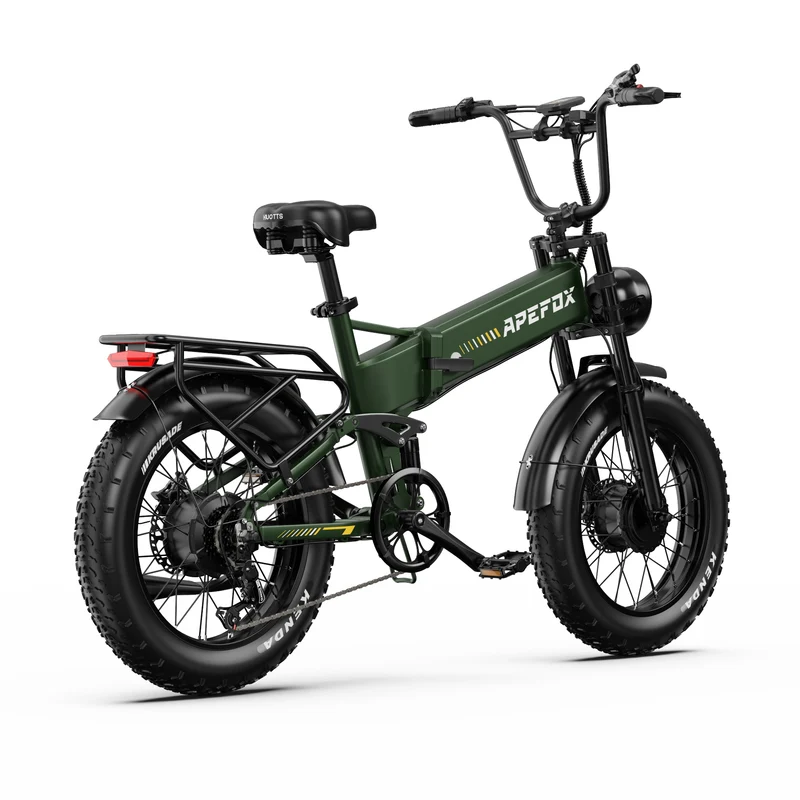

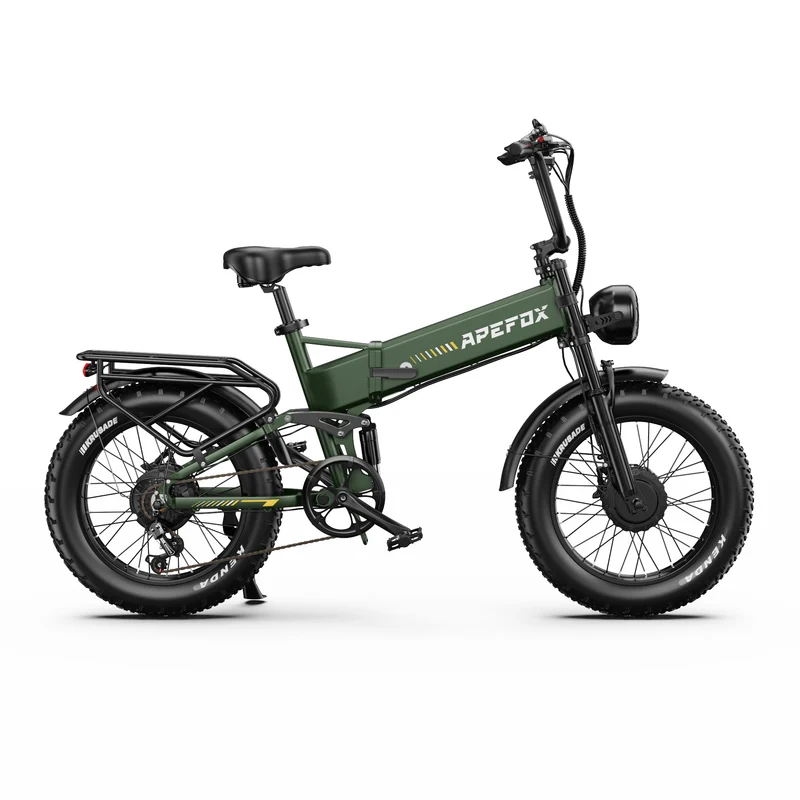

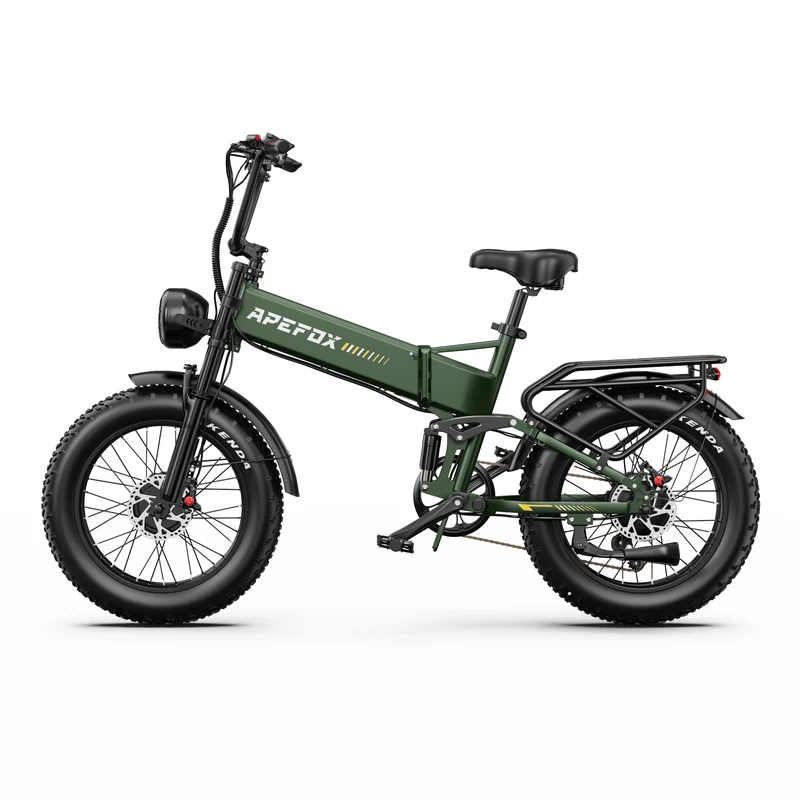

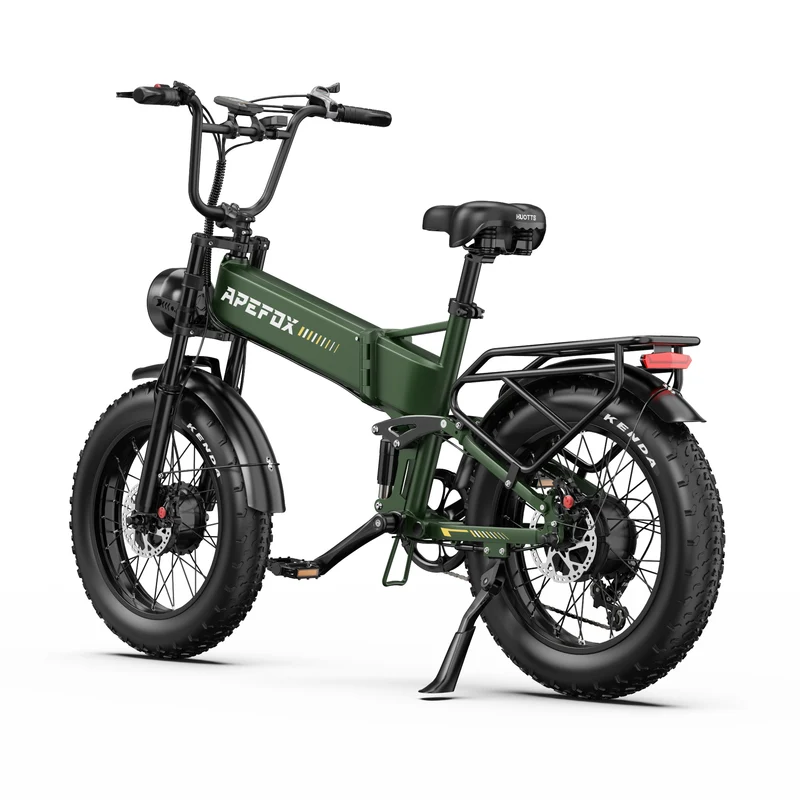

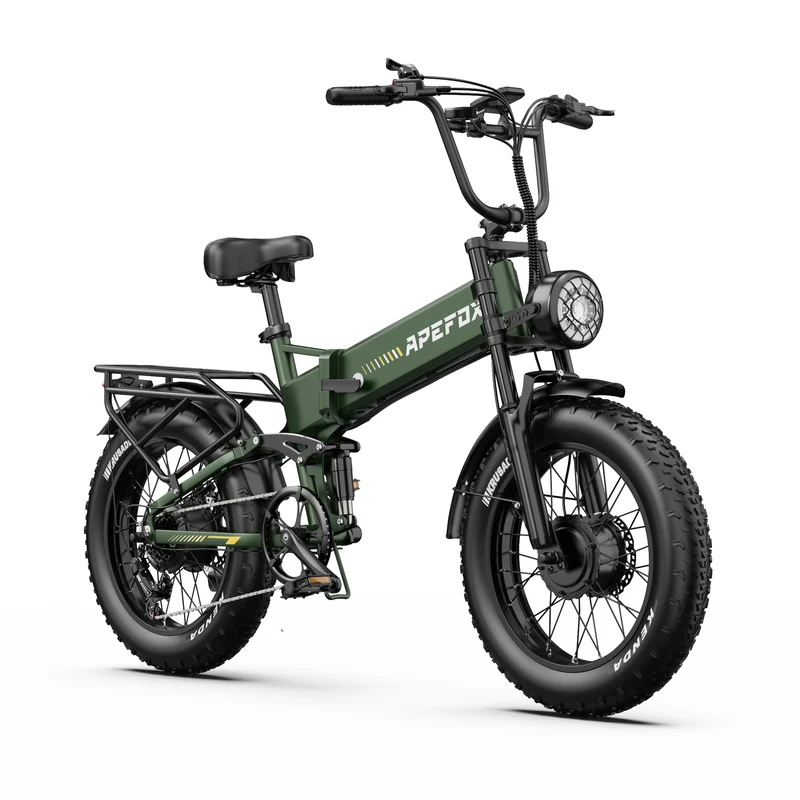

APEFOX RH20 20" Folding E-Bike 1500W Motor 48V 22.5Ah Battery

[DESCRIPTION]

General Spec

Hydraulic Disc Brakes 750W*2 Motor Power 50Km/h Max Speed 20"*4.0 Tire Type 48V 22.5Ah Battery 100KM Long Range

[/DESCRIPTION][SPECIFICATIONS]

General

• Brand:APEFOX
• Model:RH20
• Type:Folding E-Bike
• Color:Green

Specifications

• Material: Aluminum Alloy
• Tire Tread & Reflective Strips: "Reflective strips: No reflective strips, equipped with wheel reflective sheets; Size: 20*4.0in; TPI: 30TPI; Inner tube included: Yes"

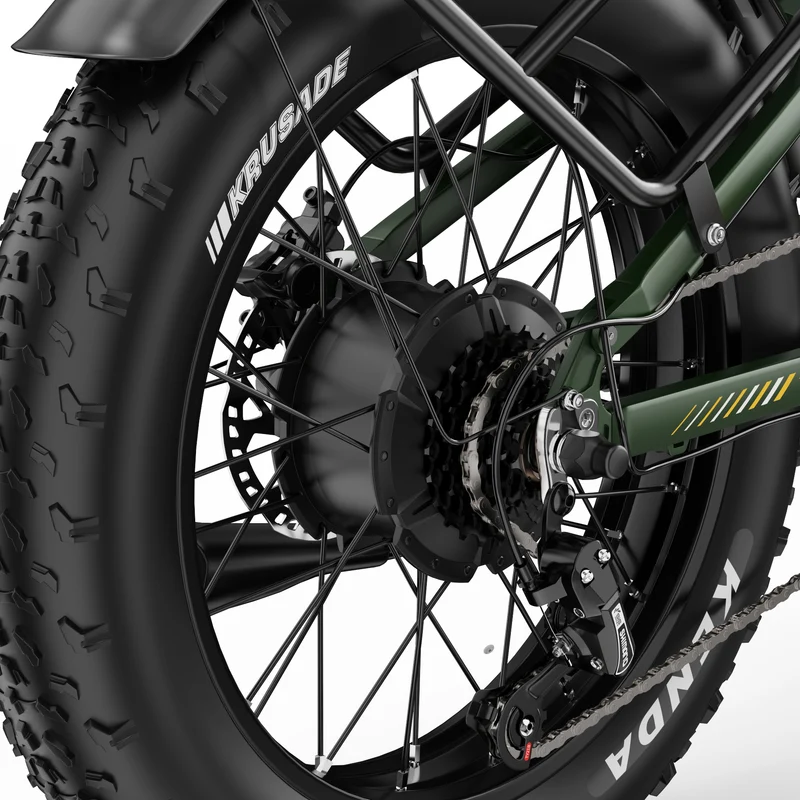

• Motor: 48V 750W*2
• Battery: "Capacity: 48V 22.5AH; Cell Specification: Dongci 18650"

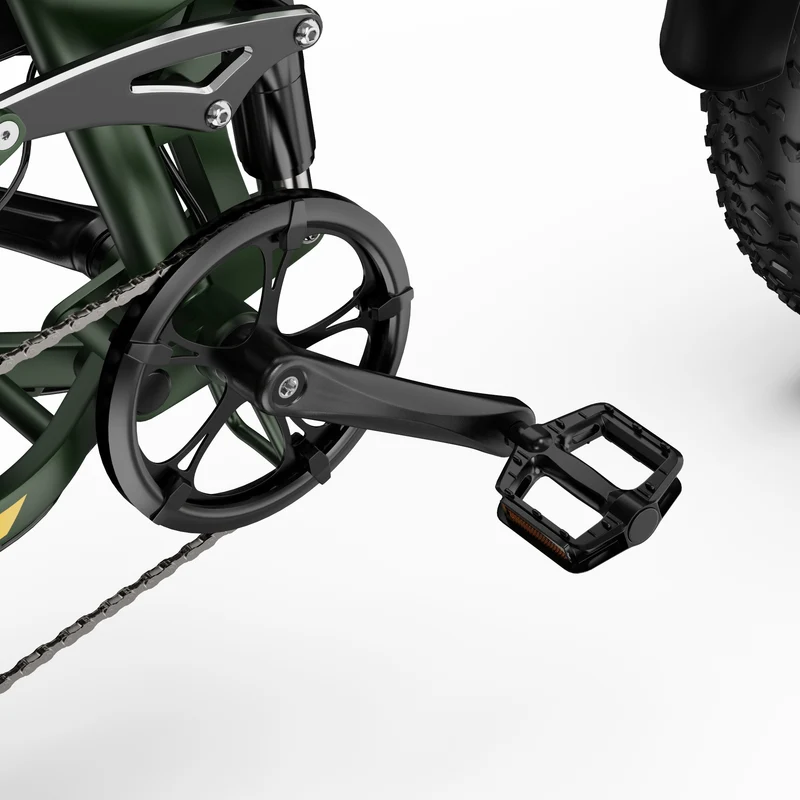

• Package Contents: Charger, User Manual, Tool Kit, Throttle, Pedals, Quick Release Axle, Motor Shaft Protector, Air Pump

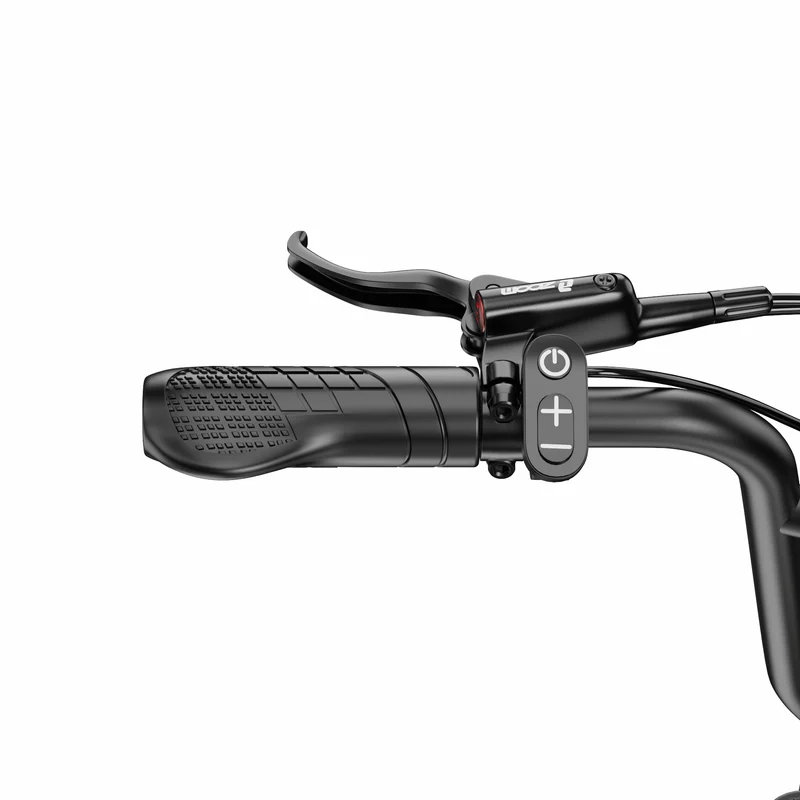

• Handlebar: "Material: Aluminum Swept-back Handlebar; Grip Width: 210MM; Height: 230MM"

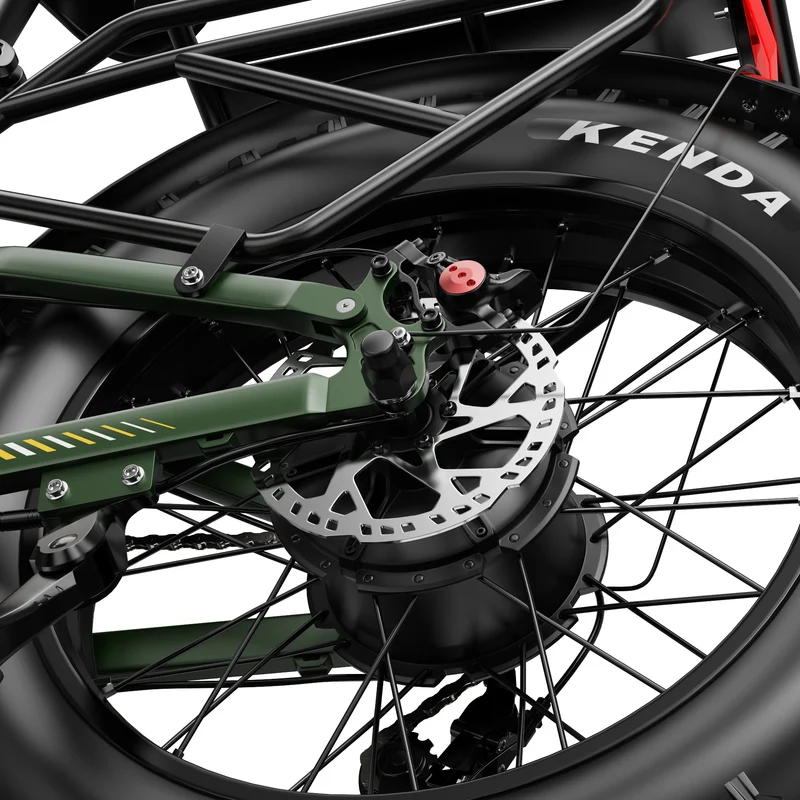

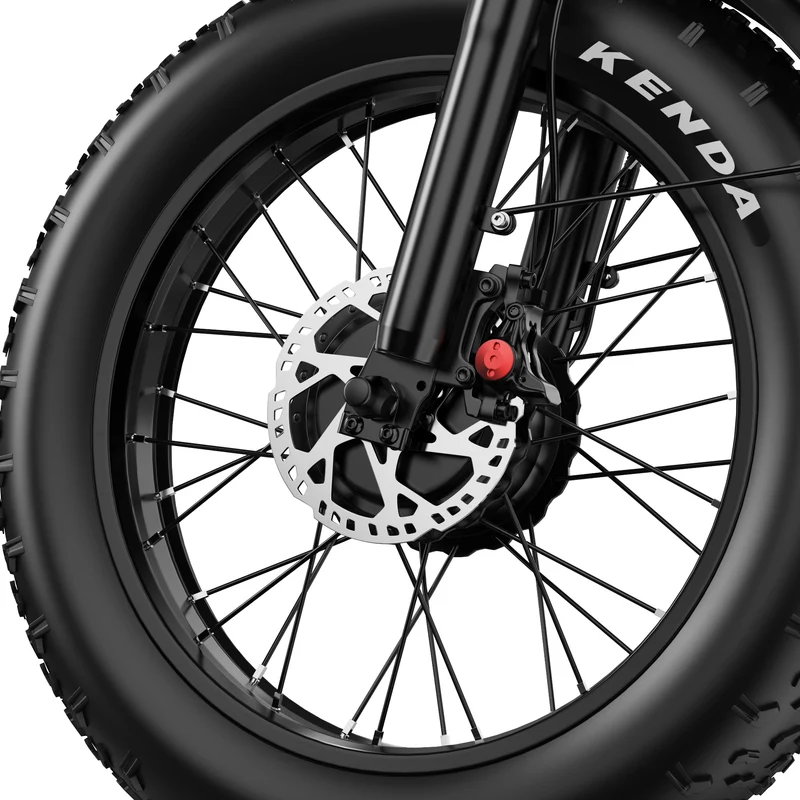

• Brake: Hydraulic Brake

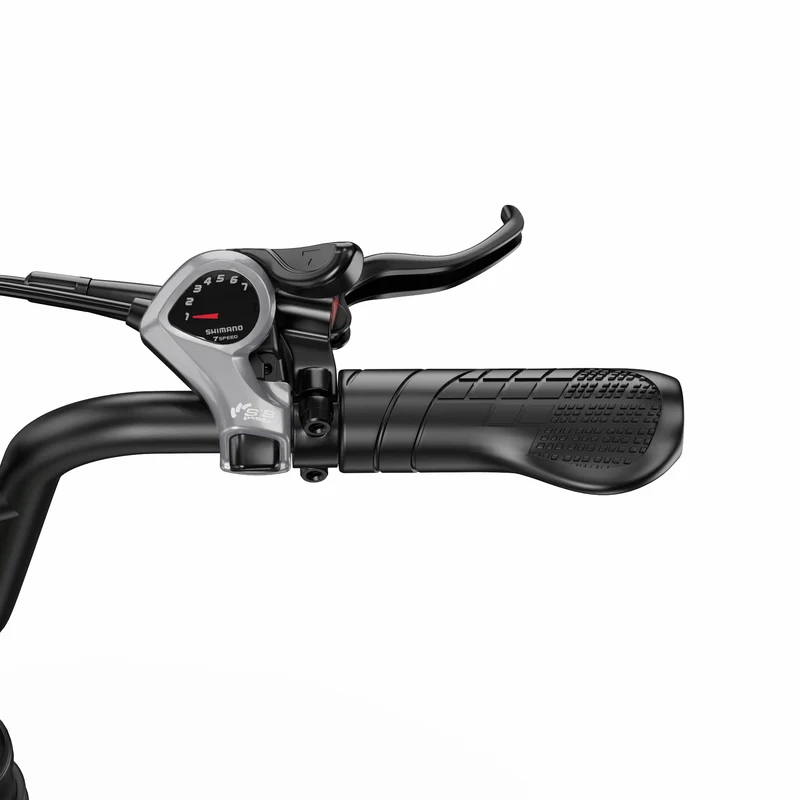

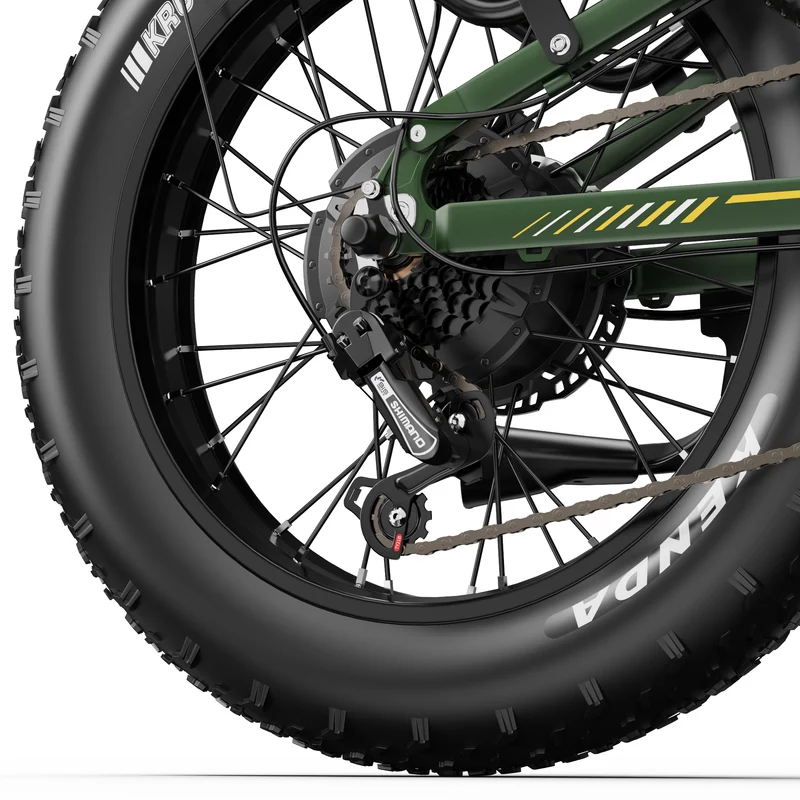

• Transmission: "TOURNEY Series, 1*7 Speed"

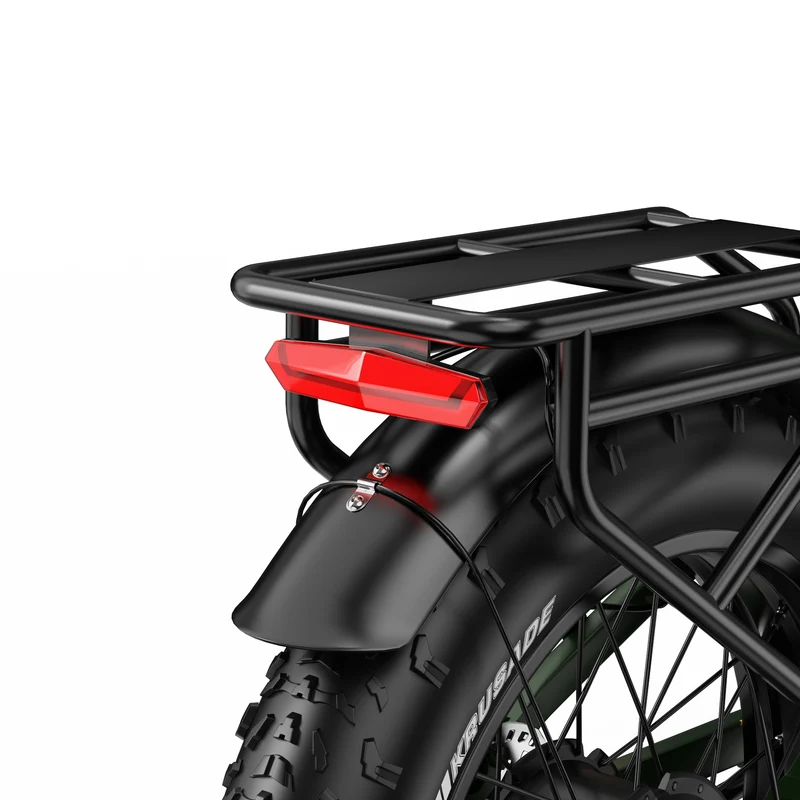

• Tail Light: High-brightness with brake sensing function
• Rear Shock Absorber: "Brand: Henglitong HM-100; Shock Type: Oil-spring Adjustable; Adjustable: No; Lockout Function: No; Load Rating: 1000 lbs"
• Fender: Full-coverage iron fender

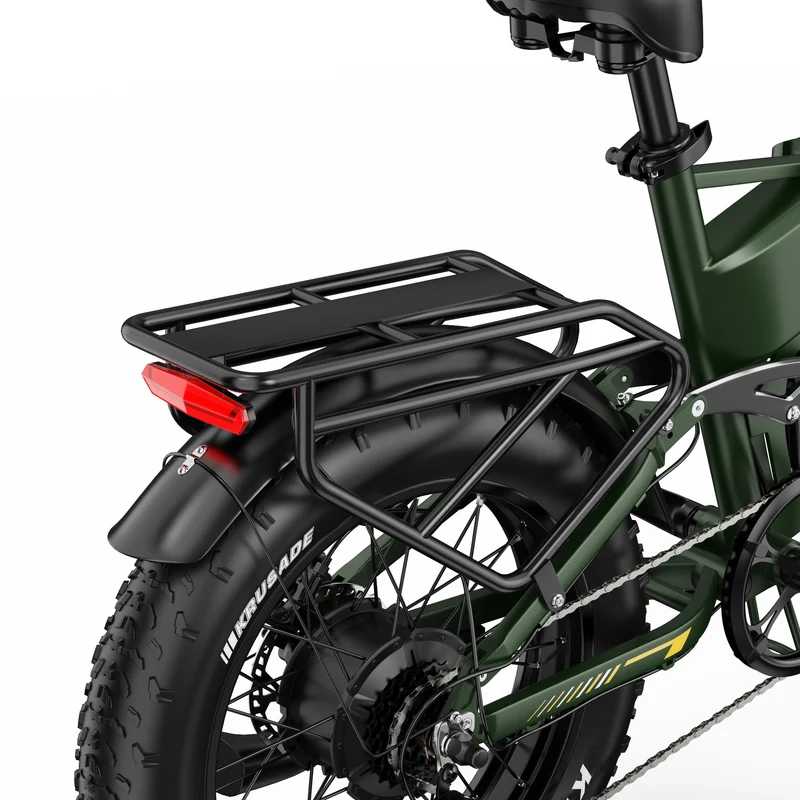

• Rear Rack: "Material: Iron; Adjustable: No"
• Sensor: Speed Sensor
• Throttle: "Factory preset speed: 6km/h via throttle; Packing: Separate small package"
• Charger: "54.6V 2A; Charging Time: 7-8h"

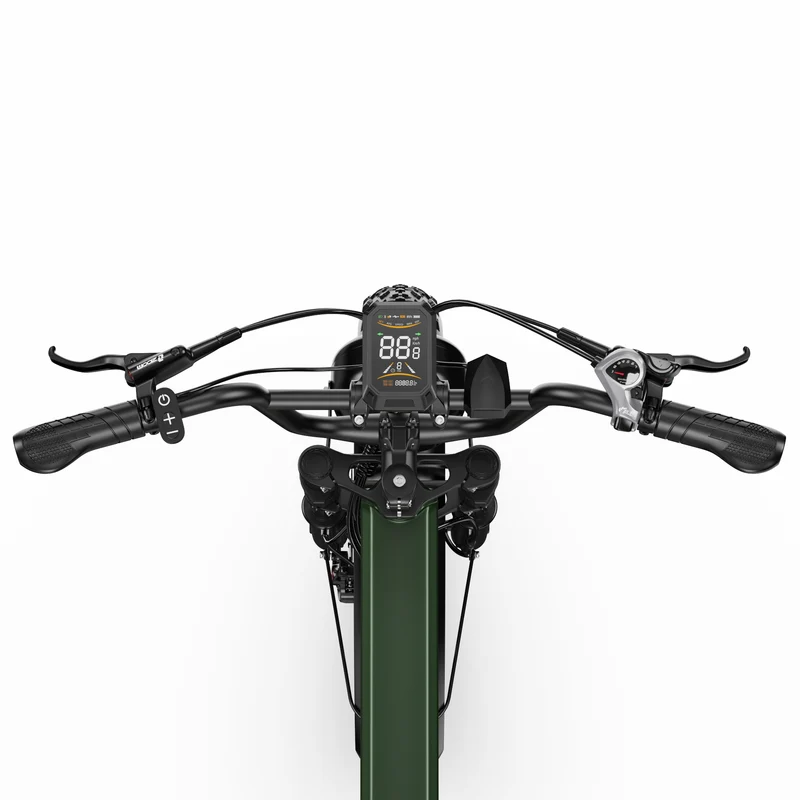

• Display Meter: "Model: XF-013, VA screen, EU standard, 3.5 inch; Bluetooth supported: No"

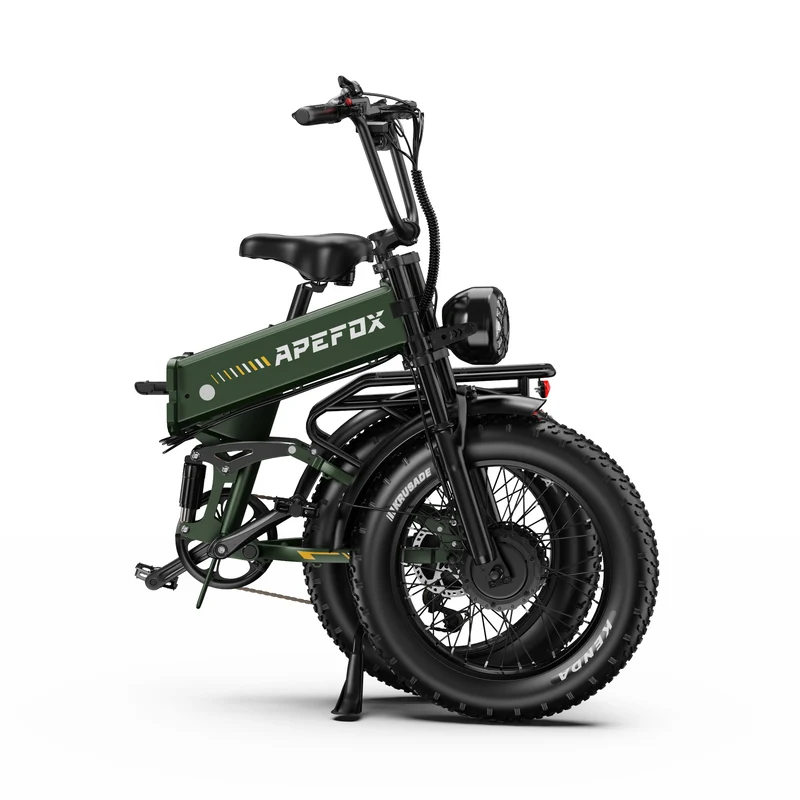

• Foldable: Yes
• Product Dimension: 1725*1140*720mm (Handlebar length: 72 cm)

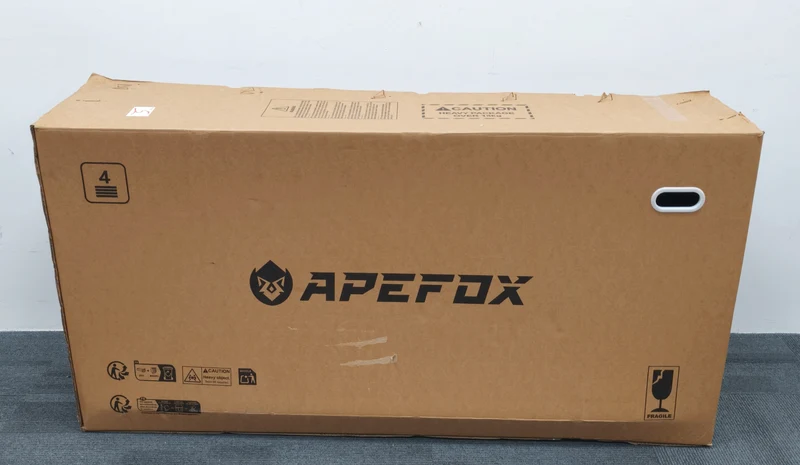

• Package Dimension: 1450*320*750mm
• Net Weight: "≈37.5kg (All weight values have a tolerance of +/- 3%-5%)"
• Gross Weight: "≈45.26kg (All weight values have a tolerance of +/- 3%-6%)"
• Gears: 6 gears (0,1,2,3,4,5), gear 0 stops operation
• Waterproof Rating: "IPX4 (Resistant to light rain or splashing water, cannot be directly washed or soaked in heavy rain)"
• Max Climbing Angle: "30° maximum climbing angle (Suitable for medium urban slopes)"
• Suitable Rider Height: 160-200cm
• Max Load Capacity: 120kg
• Bluetooth Support: No
• Mileage Range: Approx. 50-60 km under full electric mode, approx. 80-100 km under assist mode

Package Contents

• 1 x Electric Bike
• 1 x Battery Charger
• 1 x Tool Kit
• 1 x User Manual

[/SPECIFICATIONS][MANUAL]

• APEFOX RH20 Instruction Manual
• APEFOX RH20-CE-EMC-Certificate
• APEFOX RH20-CE-EMC-Report
• APEFOX RH20-CE-LVD-Certificate
• APEFOX RH20-CE-MD-Certificate
• APEFOX RH20-EN 15194
• APEFOX RH20-LVD Report 60335-1
• APEFOX RH20-RoHS-Certificate
• APEFOX RH20-RoHS-Report

[/MANUAL]
